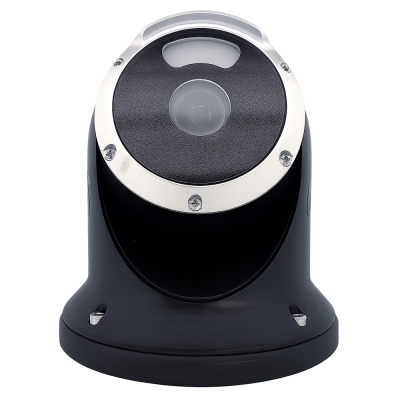

Iris Photon 4K Starlight Marine Night Vision Camera (12mm, Black)

Stealthy Black Iris Photon 4K UHD Night Vision Camera (SKU: 4K485-001)

The Iris Photon is a revolutionary 4K Ultra High-Definition marine night vision camera housed in a sleek, stealthy black radome. Engineered to conquer pitch-black conditions without the exorbitant cost or low-contrast limitations of thermal imaging, the Photon utilizes state-of-the-art AI analytics and dynamic video processing. Operating at an astonishing 0.0003 Lux, its advanced processor actively boosts its 8.3-megapixel output to deliver razor-sharp, full-color real-time video, even under moonless skies.

Long-Range Optics and Short-Range Illumination

Equipped with a 12mm lens designed for long-range marine applications, this specific black model provides exceptional forward-looking clarity. For close-quarters maneuvering and docking, Iris integrated a soft white LED illuminator into the face of the camera, immediately enhancing short-range visibility up to 100 feet. Installation is streamlined and simple; the camera utilizes standard IEEE802.3af Power over Ethernet (PoE), requiring only four drill holes and a single CAT5 cable for both power and data transmission.

Broad Network Compatibility

Unlike highly restricted thermal cameras, the Iris Photon is NDAA and ONVIF compliant, completely free from strict export controls. The camera's massive 4K (3840 x 2160) UHD output is designed to seamlessly integrate with leading marine multi-function displays. Whether you are running a native 4K screen like the Garmin 9000 series, or streaming to HD screens like the Garmin 8416 or Furuno systems, the Photon adds immediate value and safety to your helm.

IRIS PHOTON · 4K

12mm Camera Options

Starlight 4K UHD night vision cameras

White	Black	Black + White
SKU-4K485-000	SKU-4K485-001	SKU-4K485-002

Technical Specifications

• Brand: Iris Innovations
• Model: Photon 4K UHD Ultra Low Light Camera
• SKU: 4K485-001
• Lens Option: 12mm (Long Range)
• Housing Color: Black
• Resolution: 4K Ultra HD (3840 x 2160) / 8.3MP
• Low Light Rating: 0.0003 Lux
• Frame Rate: Real-time 25Hz Full Color Video
• Illumination: Integrated Soft White LED (100ft range)
• Power/Data: Power over Ethernet (PoE) IEEE802.3af (Single CAT5)
• Environmental Rating: IP67 Waterproof
• Compliance: EN60945 EMC, NDAA, ONVIF
• Warranty: 2-Year Limited Marine Warranty
• Iris Marine 2 Year Warranty

Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.

AFQs

How does the 4K Iris Photon compare to analog low-light cameras?

Users and industry reviewers frequently note that the Iris Photon's 4K starlight sensor delivers a noticeably wider field of view and significantly sharper, full-color imagery in near-dark conditions compared to analog competitors like the Sionyx Nightwave.

Does the Iris Photon require a 4K chart plotter to work?

No, you do not strictly need a 4K display. While the camera's ultra-high definition output maximizes the potential of 4K screens like the Garmin 9000 series, users successfully integrate and stream the Photon's feed on standard high-definition MFDs like the Garmin 8416 or modern Furuno displays.

Is the Iris Photon 4K485-001 an active thermal camera?

No, the Iris Photon is not a thermal imaging camera. It is a highly sensitive starlight camera (0.0003 Lux) that uses AI video processing to produce real-time, full-color video in pitch-black conditions, avoiding the high costs and export restrictions associated with thermal technology.

How is the black Iris Photon marine camera powered?

The camera utilizes standard IEEE802.3af Power over Ethernet (PoE), which means it receives both operating power and video data connectivity through a single, easy-to-run CAT5 network cable.

What is the function of the LED on the Iris Photon?

The camera features a built-in soft white LED illuminator that can be activated to enhance visibility and clarity at short ranges up to 100 feet, which is especially useful when docking at night.

Here's a video review enjoy.
