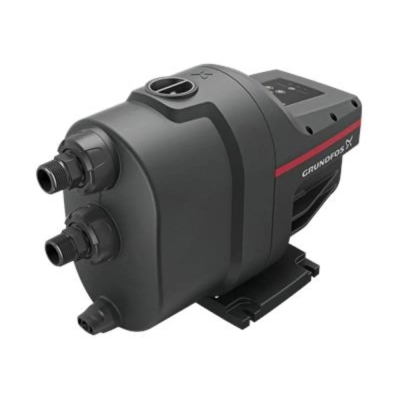

Grundfos SCALA1 5-55 1x230V 60Hz Pressure Booster Pump – NEMA 6-15, CSA Approved
The Grundfos SCALA1 5-55 (1x230V 60Hz) is a fully integrated, self-priming pressure booster pump designed for domestic and light-commercial applications. Featuring Bluetooth connectivity, 21.5 GPM flow rate, and up to 116 PSI max pressure, it delivers reliable, constant water pressure with easy installation and smart monitoring.
Reference: 99631739
$901.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
The Grundfos SCALA1 5-55 230V 60Hz is an advanced, all-in-one pressure boosting solution built to provide dependable water pressure for homes and light-commercial installations. Designed with a compact footprint and self-priming capability, SCALA1 simplifies installation while delivering powerful performance.
When filled with water, the pump can lift water from depths of up to 8 meters (26 feet) in less than five minutes, making it ideal for groundwater intake and rainwater harvesting systems. The built-in Bluetooth communication allows seamless connection to the Grundfos GO app, enabling detailed system monitoring, diagnostics, and customization.
With a maximum pressure of 116 PSI and a flow rate of 21.5 GPM, the SCALA1 5-55 is well suited for demanding residential pressure boosting needs. Operating at approximately 55 dBA, it maintains quiet performance comparable to a modern dishwasher.
This version operates on 230V 60Hz and includes a NEMA 6-15 plug configuration for convenient connection. CSA approval ensures compliance with North American standards.
Note: Hand-tighten the water connections to prevent potential damage.
Key Features
-
Fully integrated, all-in-one pressure booster pump
-
Self-priming with suction lift up to 26 ft (8 m)
-
Bluetooth enabled for monitoring via Grundfos GO app
-
Max pressure up to 116 PSI
-
Flow rate up to 21.5 GPM
-
Quiet operation at 55 dBA
-
Supports twin-pump configurations for higher demand
-
Suitable for indoor and outdoor installation
-
NEMA 6-15 plug configuration
-
CSA approved
Suitable Applications
-
Residential water pressure boosting
-
Plumbing systems
-
Groundwater intake systems
-
Rainwater harvesting
-
Light-commercial boosting applications
Technical Specifications
Performance
-
Maximum Flow Rate: 21.5 GPM
-
Maximum Pressure: 116.03 PSI
-
Suction Lift: Up to 26 ft
Connections
-
Inlet Connection: 1”
-
Outlet Connection: 1”
Electrical
-
Voltage: 230V
-
Frequency: 60Hz
-
Plug Type: NEMA 6-15
-
Certification: CSA
Temperature Range
-
32°F to 131°F
Dimensions & Weight
Product Dimensions
-
Length: 35 in
-
Width: 10 in
-
Height: 14 in
Weight
-
36 lbs
Shipping Dimensions
-
Length: 35 in
-
Width: 10 in
-
Height: 14 in
