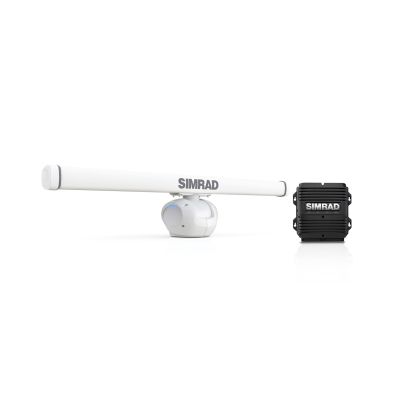

Simrad HALO-6 Pulse Compression Radar w/6' Antenna, RI-12 Interface Module & 20M Cable

Halo™ radar delivers an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas.

Reference: 000-11471-001
$7,199.00

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

SIMRAD - HALO-6 Pulse Compression Radar

Halo™ radar delivers an unprecedented mix of short and long range performance with its 6-foot open array, from just six metres (20 feet) to as far as 72 nautical miles. Monitor two distance ranges simultaneously in Dual Range mode, and take full advantage of Halo radar to keep an eye on faraway weather cells while monitoring channel markers and high speed watercraft up close. Pulse Compression technology means no compromises in detection at either range. Advanced digital signal processing helps to eliminate sea clutter, while Beam Sharpening technology provides enhanced separation between small or distant targets.

SIMRAD RADAR 6 kit 2

Safety, Weather, and Bird-Finder Radar

Halo radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, or automatically highlight all approaching targets with the optional VelocityTrack™ Doppler motion-tracking upgrade. Keep watch on distant storm cells in Weather mode, your own real-time meteorological service. Halo radar also works as a powerful bird-finder, a must-have tool for sportfishing enthusiasts and pro anglers. Halo radar’s smart Weather and Bird modes require no manual tuning, just set the mode and go.

Full suite of SIMRAD TECHNOLOGY at your fingertips

Collision hazards won’t wait for your radar to start up – why should you? Halo radar’s solid-state technology is ready instantly from standby, and in just 16-25 seconds from a cold start. Avoid the 2-3 minute warm-up time associated with traditional pulse radar and trust Halo Radar to produce an immediate, accurate radar image when you need it. Halo radar’s low-power pulsed transmissions make it safe to run in anchorages and marinas, providing additional coverage in these high-collision-risk environments. Fast 48 RPM operation provides frequent position updates, while an advanced brushless motor and helical geartrain ensure quiet operation.

SIMRAD-000-11471-001 - RADAR 6

In the BOX

  • Broadband 3G/4G Scanner Connection Cable
  • HALO SPARE,PED MOUNTING KIT
  • PEDESTAL,RADAR,HALO-PED7 and a wide range of compatible 1kW transducers to reach even greater depths
  • LBL, SHIPPER, HALO SYSTEM, 6FT ANT
  • Radar Interface box for HALO Radar, RI-12
  • ANTENNA, RADAR, HALO, 6FT
  • LBL, PACKING, HALO SYSTEM, 6FT ANT

Specifications

Range - Max (Miles) 78NM
Power - Output 6KW
Array Size (Inches) 72"

Dimensions

PHYSICAL
Compass Safe STD. 1.0 m (3.3 ft) Steer 0.5 m 1.6 ft)
Dimensions W x H x D 324 mm x 427 x 339 mm (12.76" x 16.81" x 13.35)
Weight Pedestal: 18.75 Kg (41.3lb)Antenna: 6.5 Kg (14.3 lb)
ELECTRICAL
Power Consumption Max 180 W (peak) at maximum wind velocity
Power Consumption typical 40 W (average) at zero wind velocity6.5 W (average) for Scanner + RI-12 in Standby mode
Recommended Fuse Rating 25 A for 12 V systems or 15 A for 24 V
Supply Voltage 12 V Systems 10.8 - 15 V DC24 V Systems 20 - 31.2 V DC
ENVIROMENT
Humidity IEC60945 Exposed product
Operating Temperature Range --25°C to +55°C (-13°F - 131°F)
Shock Vibration IEC60945 Exposed product and 20G, 100,000 cycle
Waterproofrating IPx6
CONNECTIVITY
Ethernet Ports RI-12, 1 x 100 Mbit RJ45 Adapter to 5 pin yellow supplied)
N2K PG Ns 127250 - Vessel Heading, 127251 - Rate of Turn, 129025 - Position, Rapid Update, 129026 - COG & SOG, Rapid Update, 129029 - GNSS Position Data, 130818 - Proprietary
NMEA 2000 Connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 Sentences supported Sentenses used by the radar application. HDG, HDT, HDM,GGA, GLL, RMC, VTG.Baud rate: Auto sense 4800, 9600, 19200 or 38400
APPROVALS
Approvals Compliance FCC/IC/R&TTE Type Certifi cationFCC ID: RAYHALOIC ID: 4697A-HALOR&TTE: Emissions compliant to SM1541-4 (including -40dB/dec future design objectives)
RADAR
Beam width 1.2°+/-10% (-3 dB width) - 0.8 deg with Beamsharpening mode ON:Vertical: 25° +/-20 % (-3 dB width)
Max Range, scale 72 nm
Max Wind Speed 70 kn
Min Range, scale 75 m (300 ft)
Radar Modes Head Up, North Up
Radar Technology Pulse Compression
Sart Racon Yes – trigger distance: about 1nm max – weather, seastate, and SART position dependent
OTHER
Interface Simrad or B&G Ethernet MFD
Languages See Radar Controller
Warranty Period 2 Years

Features

SIMRAD-HALO-RADAR-SCREEN

True 72nm range with 6-foot open array antenna.
Beam Sharpening for enhanced target separation.
Simultaneous Dual Range operation.
High-speed 48 RPM operation for rapid updates.
Ready instantly from standby, and in 16-25 seconds from power-on.
VelocityTrack™ Doppler technology for collision avoidance.
