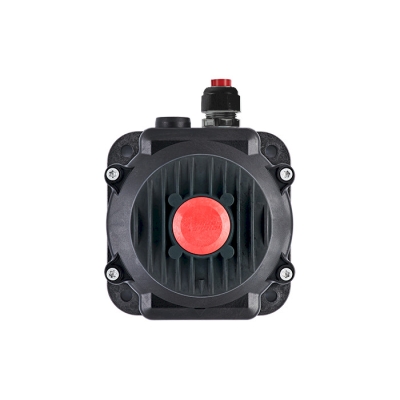

Aqua Signal Series 61 Port LED Navigation Light
Red port sidelight from the Aqua Signal Series 61. LED, 100,000-hour rated life, tamper-proof countdown system, IPx6-x7, for vessels over 20 m.
Reference: GLX-S61-PORT
Glamox / Aqua Signal Series 61
Port navigation light rated for 100,000 hours
Red port sidelight from the Aqua Signal Series 61 — a maintenance-free LED lantern with a tamper-proof countdown that tells you when replacement is genuinely due, instead of leaving it to guesswork at survey.
24 V DC / 90–230 V ACIPx6–x7 · MED (Wheelmark), UL Marine listed, IEC 60945 · 5-year warranty
The Aqua Signal Series 61 Port is the lantern for commercial vessels above 20 metres. Shows a red light over a 112.5° arc on the port side, per COLREG Rule 21.
It replaces an incandescent lantern one-for-one while removing the bulb-change cycle entirely — the LED engine is rated for 100,000 hours at 45 °C ambient, roughly eleven years of continuous running. The tamper-proof countdown system tracks the lantern’s own hours and signals when it needs changing.
The housing is seawater-resistant aluminium with a polycarbonate body and a hardened tempered glass lens, sealed to IPx6–x7, so it holds up to spray, UV and washdown without hazing or seizing at the fixings.
|
|
|
Specifications
| Series | Aqua Signal Series 61 |
| Function | Red port sidelight |
| Lens colour | Red |
| Vessel size | Over 20 metres. Vessels above 50 metres require dual installation. |
| Light source | LED |
| Supply voltage | 24 V DC, or 90–230 V AC |
| Rated life | 100,000 hours at 45 °C ambient (approx. 11 years continuous) |
| Ambient rating | Available in Ta 25 °C and Ta 55 °C versions |
| Ingress protection | IPx6–x7 |
| Materials | Seawater-resistant aluminium, polycarbonate, hardened tempered glass |
| Approvals | MED (Wheelmark), UL Marine listed, IEC 60945 |
| Service indication | Tamper-proof electronic countdown system |
| Warranty | 5 years |
| Brand | Glamox — Aqua Signal |
Other Series 61 lanterns
- Masthead — white, 225° forward sector
- Port — red, 112.5°
- Starboard — green, 112.5°
- Stern / yellow towing — 135° aft sector
Price on request Series 61 lanterns are quoted to specification — supply voltage, ambient rating and mounting all affect the part number. Send us your vessel length and the functions you need and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
