Furuno DI-FFAMP TruEcho CHIRP Fishfinder Amplifier - Sounder / Black Box

Furuno DI-FFAMP TruEcho CHIRP Fishfinder Amplifier - Sounder / Black Box

By buying this product you can collect up to Your cart will total 179 points that will be converted into a of $17.90 towards your next purchase! Must be to collect points.

Furuno DI-FFAMP TruEcho CHIRP Fishfinder Amplifier - Sounder / Black Box

Customer ratings and reviews

Furuno DI-FFAMP TruEcho CHIRP Fish Finder Amplifier is a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home! MFG: DI-FFAMP.

In Stock: 0

DI-FFAMP

$1,795.00

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Furuno DI-FFAMP TruEcho CHIRP Fish Finder Amplifier - Sounder / Black Box

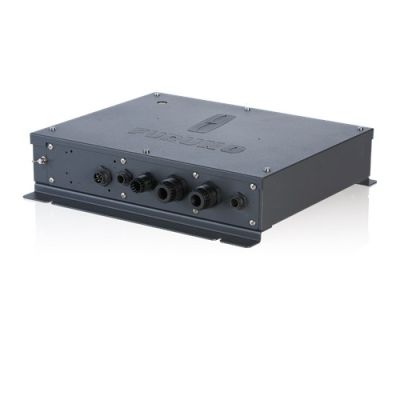

Furuno DI-FFAMP

For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

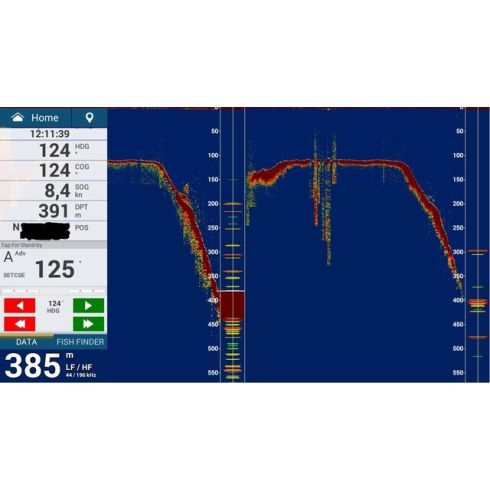

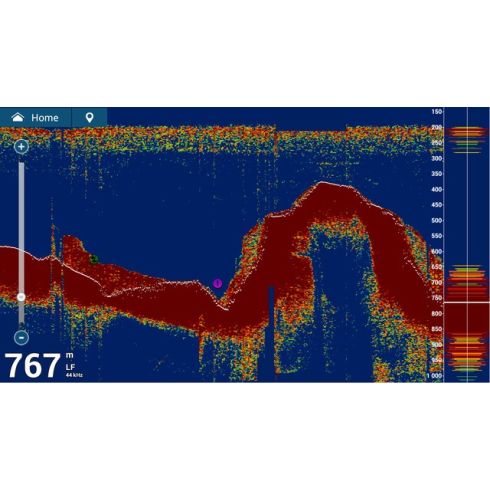

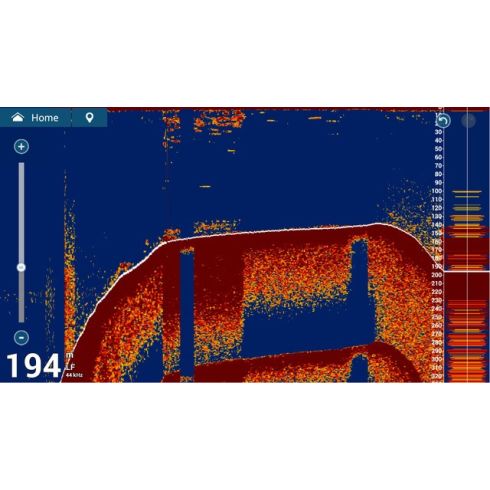

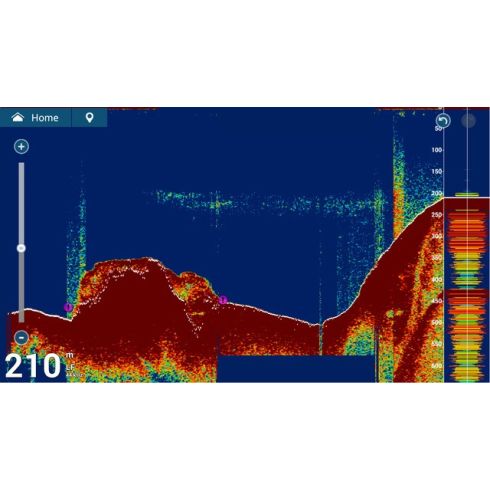

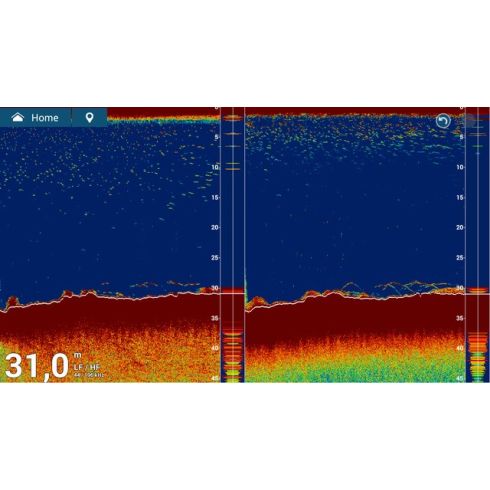

Deep Impact boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP™ ensures that your echoes come back strong & clear at every depth range, displaying fish targets and bottom structure with amazing clarity.

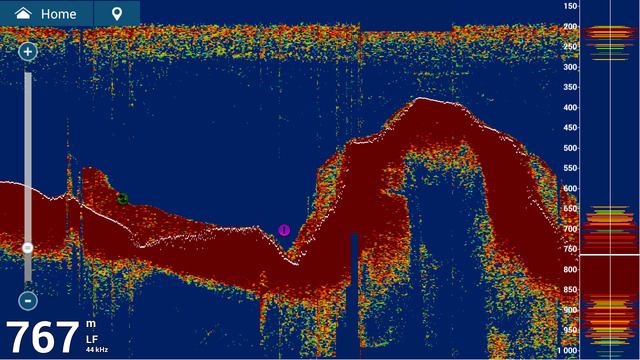

Furuno DI-FFAMP Sounder

Features:
  • Works with TZtouch3 Internal Fish Finder to amplify it to a 2/3kW TruEcho CHIRPTM Fish Finder
  • Capable of using a 5kW or 10kW transducer (BT-5 required, actual output power from DI-FFAMP is 3kW)
  • Utilizes both CHIRP and CW signals to ensure strong and clear signals in deep water

Specifications of the Furuno DI-FFAMP TruEcho CHIRP Fish Finder Amplifier - DI-FFAMP

TRANSCEIVER & DISPLAY
Display Modes: Single (High or Low frequency), Dual (Both High and Low frequencies), Bottom-lock, Bottom-Zoom, A-Scope
Frequency : 18 to 225 kHz
Broadband (CHIRP): Available 2 ch
Range Scale: Max. 3,000m
Output Power: 2kW/3kW/5kW*

ENVIRONMENT
Temperature: -15°C to +55°C
Waterproofing: IP22

POWER SUPPLY
12-24 VDC
43.1 W, 3.2-1.9 A

TRANSDUCERS (Specify when ordering)

2 kW Dual-Band CHIRP
PM111LH, PM111LHW, PM111LM, PM411LWM, R109LH, R109LHW, R109LM, R111LH, R111LM, R409LWM

2/3 kW Dual-Band CHIRP
CM599LH, CM599LHW, CM599LM, R509LH, R509LHW, R509LM, R599LH, R599LM

2 kW Single-Band CW
28BL-6HR, 38BL-9HR, 50BL-12HR, 82B-35R, 88B-10, 200B-8/8B

3 kW Single-Band CW
28BL-12HR, 38BL-15HR, 50BL-24HR, 68F-30H, 100B-10R, 150B-12H

5 kW Single-Band CW*
28F-38M**, 50F-38**, 88F-126H, 200B-12H

10 kW Single-Band CW*
28F-72**, 50F-70**

*Rated power of these transducer is 5/10 kW, but actual output power from DI-FFAMP is 3 kW.
**Booster Box BT-5 is needed for these transducers.
Note: Furuno DI-FFAMP Requires connection to the TZtouch3 Internal Fish Finder.
