SC33 Compact Dome Satellite Compass
The FURUNO SC33 Compact Dome Satellite Compass provides highly accurate information for navigation equipment such as Radar, Plotter, Autopilot, Fish Finder and Sonar. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.
Reference: SC33
$2,495.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

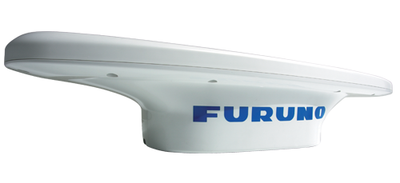

FURUNO SC33 Compact Dome Satellite Compass - Sleek, Fast & Accurate
With its compact GNSS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel.
Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC33 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.
A new GNSS antenna and advanced parallel signal processing allows the SC33 to achieve more precise Pitch, Roll and Heading measurement than conventional models, providing enhanced performance for all of your connected equipment. Its Micro-C pigtail NMEA2000 cable provides flexibility to run cables in challenging areas.
Features
Revolutionary 2-antenna and rate sensor system
In order to calculate roll & pitch data, a satellite compass requires two vectors. The SC33 employs a dual GNSS antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC33 to calculate highly accurate roll and pitch data without using a third sensor.
Specifications of the Furuno SC33 Compact Dome Satellite Compass
Antenna Type: Radome
Display Size: Supplied Separately
Power Usage: 12-24 VDC
Data Type: NMEA2000
Display Type: Supplied Separately
Receiver Type: GPS
What's in the Box:
SC33
6m NMEA Drop cable
Hardware
Adhesive
Documentation
