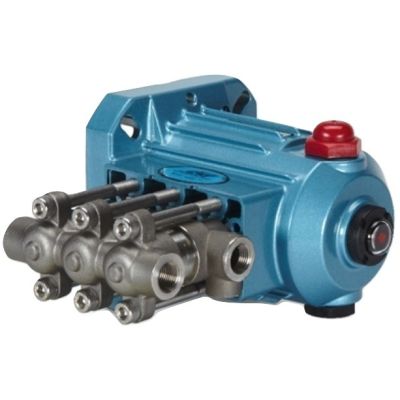

Cat Pumps 2SFQ35SEEL Direct Drive Plunger Pump - 316 Stainless Steel - 3.5 GPM - 1200 PSI
(1) Customer review
Cat Pump's Direct Drive 2SFQ35SEEL Plunger Pump mounts directly on standard 1725 RPM NEMA 56C face motors, eliminating the need for belts/pulleys. They are compact and lightweight. 3.5 GPM, up to 1200 PSI, max RPM 1725, pedestal mount. 3/8" x 3/8" port size NPT. 316 Stainless Steel. More information and specs below.
Reference: 2SFQ35SEEL
$1,335.35
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Cat Pumps 2SFQ35SEEL Direct Drive Plunger Pump - 316 Stainless Steel - 3.5 GPM - 1200 PSI
Unique spring loaded inlet valves and the flow through ceramic plungers
provides a smooth, steady flow. Hollow shaft direct drive to provide the smallest possible footprint for challenging spaces. Standard NBR seals with alternative options for temperature and chemical compatibility.
- FPM – .0110
- EPDM – .0220
Cat Pumps 2SF35SEEL Pump Specifications
| U.S. Measure | Metric Measure | |
| Flow | 3.5 gpm | 13.2 lpm |
| Pressure Range | 100 to 1200 psi | 6.9 to 83 bar |
| Pump RPM* | 1725 rpm | 1725 rpm |
| Stroke | 0.402" | 10.2 mm |
| Bore | 0.709" | 18 mm |
| Inlet Pressure Range | Flooded to 60 psi | Flooded to 4.1 bar |
| Max. Liquid Temperature | 160° F | 70° C |
| Crankcase Capacity | 11.15 oz. | .33 L |
| Inlet Ports (2) | 1/2" NPT(F) | 1/2" NPT(F) |
| Discharge Ports (2) | 3/8" NPT(F) | 3/8" NPT(F) |
| By-Pass Return Port (1) | 1/4" NPT(F) | 1/4" NPT(F) |
| Shaft Diameter | 5/8" | 15.9 mm |
| Weight | 8.9 lbs. | 4 kg |
| Dimensions | 6.8 x 8.7 x 5.2" | 173 x 221 x 133 mm |
