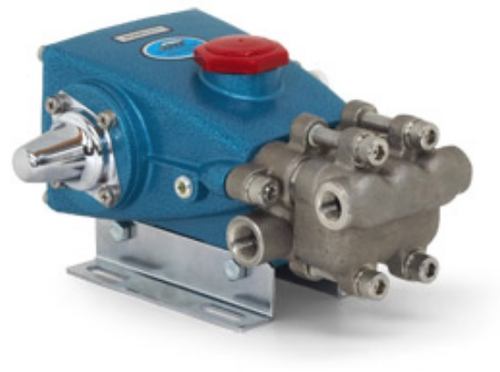

Cat Pumps 271 Plunger Pump - 316 Stainless Steel - 3.5 GPM - 1500 PSI
Cat Pump's 271 plunger pump has been used for decades on marine reverse osmosis systems. Up to 3.6 GPM, up to 1500 PSI, max RPM 1725, pedestal mount. 1/2" x 3/8" port size NPT. 316 Stainless Steel. More information and specs below.
By buying this product you can collect up to 325 Citimarine points. Your cart will total 325 points that will be converted into a voucher of $32.50 towards your next purchase! Must be logged in to collect points.
Cat Pumps 271 Plunger Pump - 316 Stainless Steel - 3.5 GPM - 1500 PSI
Triplex design delivers high efficiency and a smooth, low-pulsation flow. 316 Stainless Steel for added compatibility in intermittent duty sea water. Installation flexibility with compact direct-drive or belt-drive. Standard NBR seals with alternative options for temperature and chemical compatibility
- FPM – .0110
- EPDM – .0220
- IPFE– .0770
- High Temp, 190°F – .3000
- High Temp, 200°F – .3400 (Intermittent Run-Dry)
Cat Pumps 277, 271 Pump Specifications
| U.S. Measure | Metric Measure | |
| Flow | 3.5 gpm | 13.2 lpm |
| Pressure Range | 100 to 1500 psi | 6.9 to 103 bar |
| Pump RPM* | 1420 rpm | 1420 rpm |
| Stroke | 0.500" | 12.7 mm |
| Bore | 0.709" | 18 mm |
| Inlet Pressure Range | Flooded to 60 psi | Flooded to 4.1 bar |
| Maximum Liquid Temperature | 160° F | 71° C |
| Crankcase Capacity | 15 oz. | .45 L |
| Inlet Ports (2) | 1/2" NPT(F) | 1/2" NPT(F) |
| Discharge Ports (2) | 3/8" NPT(F) | 3/8" NPT(F) |
| Shaft Diameter | 0.650" | 16.5 mm |
| Pulley Mounting | Either Side | Either Side |
| Weight | 13.4 lbs. | 6.1 kg |
| Dimensions | 10.28 x 8.78 x 5.35" | 261 x 223 x 136 mm |
Alternative 277, 271 Specifications
| Flow | 4.2 gpm | 15.9 lpm |
| Pressure Range | 100 to 1000 psi | 6.9 to 69 bar |
| Pump RPM* | 1725 rpm | 1725 rpm |
*Pump minimum is 100 RPM.
