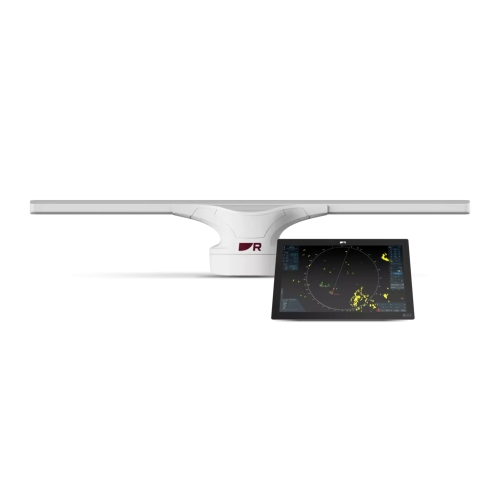

Raymarine Pathfinder 22 w/ 22" Display, 6' Transceiver, 25 m Interconnect Cable

Raymarine Pathfinder 22 w/ 22" Display, 6' Transceiver, 25 m Interconnect Cable

DESIGNED WITH OPERABILITY AT THE CORE

Pathfinder is a highly advanced solid-state radar that delivers exceptional clarity and an intuitive user interface. It's driven by a fan-less, six-foot, low-profile open array antenna that provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. Pathfinder's solid-state transmitter delivers performance exceeding a 12kW magnetron, and the system meets and exceeds all IMO performance requirements for target detection.

The Next Evolution in Offshore Situational Awareness

The revolutionary Pathfinder marine radar system is built on Raymarine’s award-winning radar technology and is designed for type-approved CAT 1, CAT 2 and CAT 3 SOLAS vessels. Pathfinder radars deliver trusted radar performance for cargo ships, superyacht, OSV and naval applications. Each system uses Raymarine’s proven solid-state technology and innovation scanner design to deliver exceptional resolution and detection capabilities even in the most challenging maritime conditions.

Pathfinder 22: Advanced Marine Radar for CAT 2 SOLAS Vessels

The Pathfinder 22 is a high-performance marine radar system designed for type-approved CAT 2 SOLAS vessels up to 10,000 gross tons, including offshore supply vessels, commercial deep-water ships, and megayachts. Engineered for precision and reliability, it delivers superior target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology.

Key Features:

• Designed  for type-approved CAT 2 SOLAS vessels up to 10,000 gross tons, including offshore supply vessels, commercial deep water, and megayachts
• Provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology
• 22" HD resolution displays protected from oil and contaminants using Raymarine’s HydroTough™ nano-coating technology
• 6' fan-less, solid-state open array antenna with simplified cabling and lightweight design reduces installation time
• New interface allowing access to key functions without distracting from the main radar screen
• Subjected to rigorous environmental testing for increased reliability and lower cost of ownership
• Designed for compliance with IMO standards IEC 62288 and IEC 62388.

With next-level radar technology and a user-friendly design, the Pathfinder 19 ensures safer navigation and enhanced situational awareness for professional and leisure vessels alike.

System Includes

• 22" display
• Trackball
• 6' transceiver
• 25 meter interconnect cable data collection unit.

19" Display Specifications

Antenna Specifications

Transceiver Specifications
