Tarjeta Universal U-Board - 223100502

Previous Next

Tarjeta Universal U-Board - 223100502

Customer ratings and reviews

Nueva Tarjeta Universal U-Board para unidades Dometic, Cruisair y Marine Air. Funciona con todos los controles nuevos de Dometic. 90 Dias de Garantia. (Placa de control)

Numeros de Parte: 223100502 / 223100504 (Nuevo Numero de Parte)

Referencia: 223100502 / 223100504

$307.99

Añadir a la cesta

Financing Available with Affirm

Financing Available with Paytomorrow

: Estimated monthly payment with 24 month financing. *Based on credit approval. More info

Pay over time with monthly payments.

APR, loan limit and payment periods available will be based on credit score
APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

Run Pre-Approval Here
Purchase with PayTomorrow* *includes preapproval process

By buying this product you can collect up to 30 Citimarine points. Your cart will total 30 points that will be converted into a voucher of $3.00 towards your next purchase! Must be logged in to collect points.

Más

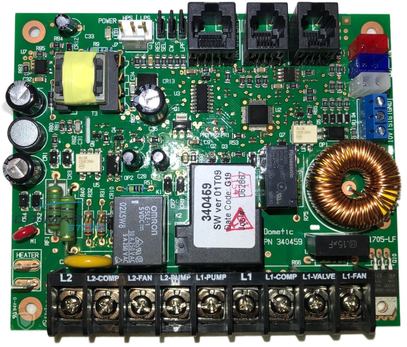

Tarjeta Universal U-Board Dometic para Cruisair y Marine Air (Placa de control)

Nueva Tarjeta Universal U-Board para unidades Dometic, Cruisair y Marine Air. Funciona con todos los controles nuevos de Dometic. 90 Dias de Garantia*.

Compatibilidad Del U-Board


Dometic Smart Touch (Click Here)	Dometic SMXir (Click Here)	Dometic Elite II (Click Here)	Dometic Passport I/O (Click Here)

Dometic 8-Pin Cable	Dometic 6-Pin Cable	Dometic 8-Pin Cable	Dometic 8-Pin Cable

Controles Tambien Compatibles:

Q-Logic: Qht, Q3
SMXII: SMXII AB (Se necesita unn adaptador especial para conectarlo al U-Board Click Here to View)

U-Board no es compatible para:
CAN Bus kits: 763100027 and 763100061

Como Saber Si Una Unidad Tiene U-Board

Una manera de identificar una unidad con la nueva tarjeta "U", es comprobando la descripción del modelo de la unidad: la letra " U "después del número de BTU significa que la unidad contiene el nuevo tablero de control "U". Por ejemplo: DTU 16 = 16,000 BTU.

Nueva Conexion de los Terminales

Conectado a diagramas de cableado genéricos. Puede hacer referencia a la siguiente imagen que muestra el nuevo diseño, conexiones eléctricas y terminales. O consulte el diagrama eléctrico específico dentro de la Caja Electrica de la unidad.

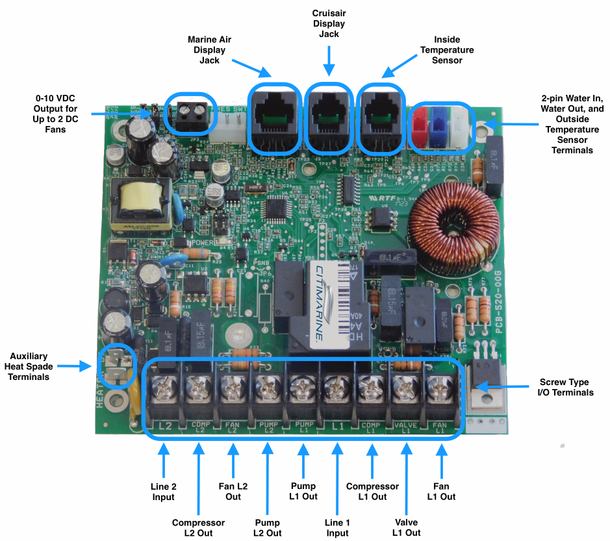

Terminal Locations U Board - 223100502

*90-day warranty on Replacement parts and components, parts only. Contact us for assistance with claims.
