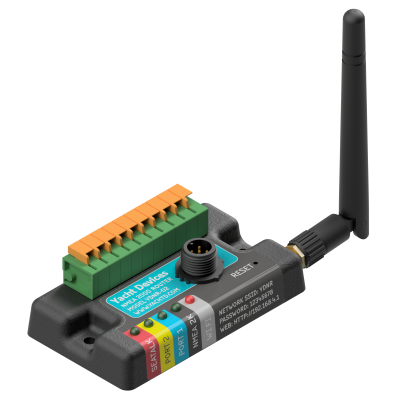

YDNR-02 NMEA 2000 Wi-Fi Router

Yacht Devices YDNR-02 NMEA 2000 Wi-Fi Router - The Router is equipped with NMEA 2000 and SeaTalk ports, two NMEA 0183 ports, three TCP/UDP data servers and a built-in web server, where you can easily configure it or update the firmware. It creates its own Wi-Fi network (Access Point) or can be connected to a boat's existing Wi-Fi. This device connects all marine and mobile devices easily.

Part Number: YDNR-02N

Reference: YDNR-02N
In Stock: 4
$349.99

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Yacht Devices YDNR-02 NMEA 2000 Wi-Fi Router
YDNR-02Yacht Devices NMEA 2000 Wi-Fi Router

The YDNR-02 NMEA 2000 Wi-Fi Router by Yacht Devices connects all marine and mobile devices easily. It supports all popular marine protocols, is compatible with virtually all marine software, and even allows management of your vessel from a web browser without internet connection or installed software.

The YDNR-02 is equipped with NMEA 2000 and SeaTalk ports, two NMEA 0183 ports, three TCP/UDP data servers and a built-in web server, where you can easily configure it or update the firmware. It creates its own Wi-Fi network (Access Point) or can be connected to a boat's existing Wi-Fi.

The Web Gauges page of the built-in web site allows managing of a digital switching equipment and real time viewing of vessel data using a web browser on PC, laptop, tablet or smartphone; no internet connection or app installation is required. If you have access to your boat Wi-Fi network over the internet, Web Gauges are a ready solution to monitor and manage your vessel.

Key Benefits of YDNR-02

  • NMEA 2000 port with NMEA 2000 Micro Male connector;
  • Two physical NMEA 0183 TX/RX ports (300..115200 bps);
  • Both "single ended" (RS-232) and "differential" (RS-422) NMEA 0183 connections are supported;
  • Has one SeaTalk port (multiple devices can be connected);
  • Three TCP/UDP data servers (NMEA 0183 or NMEA 2000 data) for software and apps;
  • An internal web server for diagnostics, firmware updates and configuration.

Can Be Used For

  • Connecting old (NMEA 0183, SeaTalk) equipment (sensors, autopilots) to modern chart plotters with NMEA 2000 interface only;
  • Connecting of equipment with different port speed or protocol (e.g. SeaTalk sensors to NMEA 0183 and NMEA 2000 equipment, or 4800 bps GPS receiver with 38400 bps AIS or VHF with built-in AIS receiver);
  • Connect marine equipment with software and apps (compatible with virtually all marine software, including OpenCPN, Expedition 10, Coastal Explorer, iNavx, Navionics Boating, iSailor and others);
  • Solving of software connectivity problems (using data filters, or tunnel mode without checksum validation for very old NMEA 0183 equipment);
  • Managing and monitoring of a vessel over Internet (VPN access to boat's Wi-Fi is required);
  • Wireless link between NMEA 0183 or SeaTalk devices or segments of NMEA 2000 network (pair of Routers required);
  • Managing and updating of NMEA 2000 devices, recording NMEA 2000 data for diagnostics.

Dimensions of Yacht Devices YDNR-02


Yacht Devices NMEA 2000 Wi-Fi Router Dimensions
