Westerbeke- 5.0 MCG - Westerbeke 5kW Marine Generator

One of the Most Compact Low-CO, Low-Speed 5kW Gasoline Generators on the Market

Lower operating speed combined with a heavy duty base engine contribute to a longer-lasting, more durable generator.

Optimum Fuel Efficiency, Easy Starting and Improved Reliability

Westerbeke's 5 kW Gas Generator comes with Multiport EFI, providing optimum fuel efficiency, easy starting and improved reliability. Electronic speed control (via electronic governor) maintains the engine at a constant speed (precise frequency regulation) and eliminates “bogging down” when load is applied. Water-cooled returnless fuel system aids in the prevention of vapor lock for improved performance in high temperatures. The MCG also features advanced diagnostic capabilities.

So Quiet, No Need for a Sound Shield

Westerbeke's gas generators are so quiet, there's no need for a sound shield. Featuring a 3-cylinder engine with a balance shaft that virtually eliminates vibration, the 5 kW Gen Set operates at an electronically controlled 1800 rpm for exceptionally quiet operation. In comparison, 3600-rpm engines are generally noisier than their 1800-rpm counterparts and require sound shields to maintain quiet operation.

Five Year Limited Warranty

The 5.0 MCG is backed by Westerbeke's 5-year limited warranty. Westerbeke, established in 1937, is present in over 65 countries around the world in order to provided customers with easy access to parts, service and technical support.

Standard Features

• Simple, "one-touch" start/stop control panel
  with running hour meter and LED lights
• Multiport electronic fuel injection
• Electronic governing
• Safety shut-downs-overspeed, low oil
  pressure, high exhaust temperature and more
• Fresh water cooling and coolant recovery tank
• Field convertible to 50 or 60Hz
• A.C. circuit breaker

• 12 amp battery charger
• 90° water injected exhaust elbow
• Belt-driven, raw water pump
• Vibration isolators
• Lube oil drain hose
• Belt guard
• Operators' manual and parts list
• EPA & CARB compliant
• Meets U.S.C.G. regulation 33CFR-

Specifications

Cylinders: 3
Bore: 2.56 in.
Stroke: 2.61 in.
Displacement: 40.30 cu. in.
Aspiration: Natural
Length: 25.00 in.
Width: 18.20 in.
Height: 17.20 in.
Weight: 334.00 lbs.

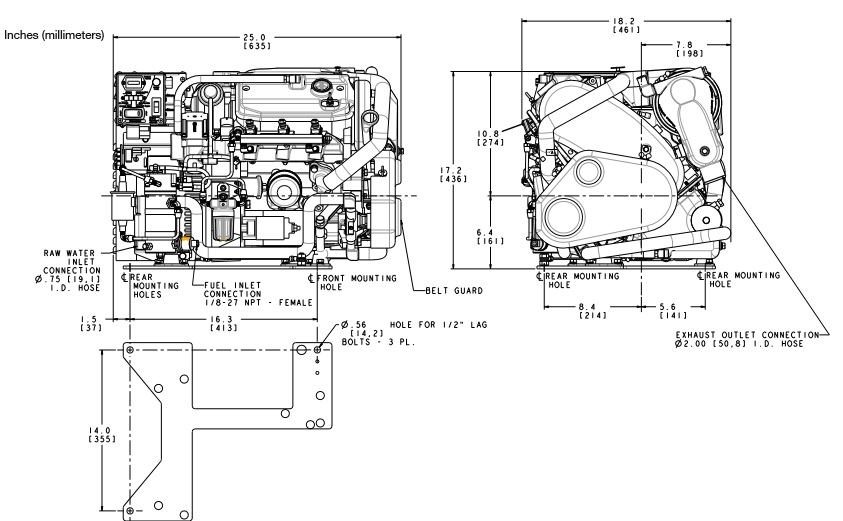

Basic Dimensions
