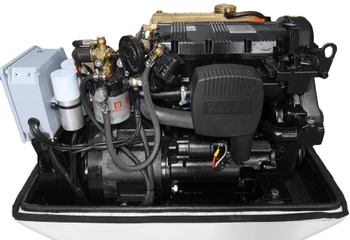

VTE PAGURO 6000 - 5.5 KW - 3600 RPM Marine Generator
Part number: VTE PAGURO 6000
VTE PAGURO 6000 - 5.5 KW - 3600 RPM Marine Generator
VOLPI TECNO ENERGIA (VTE)'s marine generating sets are the point of reference for the market thanks to the optimal ratio between performance, noiselessness, and compact dimensions.
The PAGURO range is very broad, enabling the fulfillment of all power and performance requirements for both yachts and motor boats.
Quiet. Both the engine and the alternator of a Paguro generator are water cooled. This eliminates the need for airflow through the capsule to cool the generator, resulting in significantly lower noise output. Air for combustion passes through small holes in the base, which are designed and constructed to prevent sound escaping. The soundproof capsule is made from multilayered reinforced glass fiber with a sound absorbing material and then lined with high-density sound absorbing foam to ensure maximum soundproofing.
No vibration. Relax and enjoy life on board. A dual anti-vibration system, based on 4 soft shock absorber mounts inside the capsule and 4 firm captive engine mounts outside, ensures that noise and vibration are reduced across a wider frequency range.
Light and compact. Every product in the Paguro range is conceived, designed and manufactured, using bespoke components when required, to achieve the goal of reducing generator size while maximizing power and keeping sound to a minimum. Space is at a premium on modern boats, so with a Paguro, more yachts are able to enjoy the benefit of a generator than before.
Safe. All Paguro generators are equipped with overheat and low oil protection systems featuring automatic shutdown and indication. The supplied remote panel features a unique real-time LED power monitor so that you can see ‘at a glance’ how much power you are using.
For more details on the VTE Paguro 6000, please see the attachments section below.
Specifications of the VTE PAGURO 6000
ALTERNATOR | |
---|---|
ALTERNATOR MANUFACTURER | V.T.E. SRL – ITALIA |
ALTERNATOR TYPE | SYNCHRONOUS WITHOUT BRUSHES |
CONTINUOUS ELECTRICAL POWER KVA | 6 KVA (50Hz); 6,5 KVA (60Hz) |
CONTINUOUS ELECTRICAL POWER KW | 5,0 KW (50Hz) / 5,5 kW (60Hz) |
BATTERY CHARGE | 12 V – 8 A |
NUMBER OF PHASES | 1 |
PEAK CURRENT | 70 A |
ALTERNATOR COOLING | WATER, EXCHANGER IN STAINLESS STEEL AISI 316 L |
ENGINE | |
---|---|
ENGINE MANUFACTURER | LOMBARDINI, ITALIA |
ENGINE MODEL | LDW 702 |
CYLINDERS NR. | 2 |
MECHANICAL POWER | 6,5 KW (50 Hz); 7,5 KW (60 Hz) |
ROTATION SPEED | 3000 rpm (50Hz) e 3600 rpm (60Hz) |
CONSUMPTION OF GAS OIL | 0,35 lt./KW/h |
COOLING SYSTEM | FRESHWATER WITH HEAT EXCHANGER |
STARTING SYSTEM | ELECTRIC A 12 V |
REMOTE CONTROL | Yes |
COOLING PUMP | SELF PRIMING |
GENERAL SPECIFICATIONS | |
---|---|
DIMENSIONS (mm/inch) | 660 L X 460 W X 600H 25" X 18" X 23" |
WEIGHT (CAPSULE INCLUDED) (Kg/Lb) | 130 / 286 |
NOISE LEVEL dB | 52 dB(A) |
*The VT Paguro 6000 generator has up to 5 hours of factory running tests
