Vitrifrigo IMXTIXN1 Ice Maker, 115V - Stainless Steel - 0.8 cu.ft, Select Flange
Vitrifrigo IMXTIXN1 Low Profile Ice Maker - Volume: 0.8 cu.ft, Stainless Steel, Low Profile Design. Connect to vessel's water system and makes 22 pounds of ice a day. Power: 115 Volt AC / 60 Hz. 61.7 lbs. Nautic lock / handle, and double function thermostat for ice production or maintenance. IMXTIXN1-F (flush flange) or IMXTIXN1-S (surface flange). 2-year Limited Warranty.*
Discontinued, replaced for VITRIFRIGO IMXTIXN1X IM-XT HYDRO OCX2 ICEMAKER, 115V - STAINLESS STEEL - 0.8 CU.FT (VIEW HERE)
Reference: IMXTIXN1-F
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

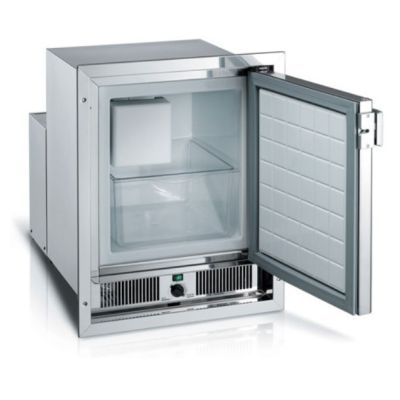

Vitrifrigo IMXTIXN1 Low Profile Ice Maker - Stainless Steel
Features
The Vitrifrigo IMXTIXN1 Low Profile Design Ice Maker is made up of stainless steel, and uses a mechanical ice-making system with a simple design concept. It can be connected to the onboard potable water system, and can produce up to 22 pounds of ice a day. 115Vac.
Flush Flange (IMXTIXN1-F)
Built-in with nautic lock
Surface Flange (IMXTIXN1-S)
Partially built-in with pin lock
Dual Thermostat
Double function thermostat: ice production/maintaining
Nautic Lock / Handle (Flush Flange Version)
Safety lock for door inside version
Pin Lock (Surface Flange Version)
Double function pin: total closure and vent position
Dimensions and Specifications for Vitrifrigo IMXTIXN1:
| Total volume (Cu. Ft.) | 0.7 |
| Net weight (Lbs.) | 61.7 |
| Power supply | 115Vac 60Hz |
| Nominal consumption | 241 W (2.95A) |
| Overall width (In.) | 14 9/16 No Flange - 16 1/4 With Flange |
| Overall height (In.) | 18 13/16 No Flange - 20 9/16 With Flange |
| Overall depth (In.) | 21 15/16 |
| Ice production Lbs/24h | 22 |
Works As A Replacement For
| Vitrifrigo Part Number | Description | Replaces Part Number | Brand | Volume | Dimensions |
| IMXTIXN1 | Vitrifrigo IMXTIXN1 Ice Maker, 115V - Stainless Steel - 0.8 cu.ft, Select Flange | IMXTIXN1X-Z | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 21.85" D |
| IMXRXN1X-Z | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 17" D | ||
| IMXRXN1X | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 17" D | ||
| IMHYDIXN1X-INT | Vitrifrigo | 0.8 cf | 24.75" H x 14.12" W x 14.56" D |
Dimensions
*Vitrifrigo America Warranty Covers 1st year Parts & Labor, 2nd Year Parts. See attachments section below for more info.
