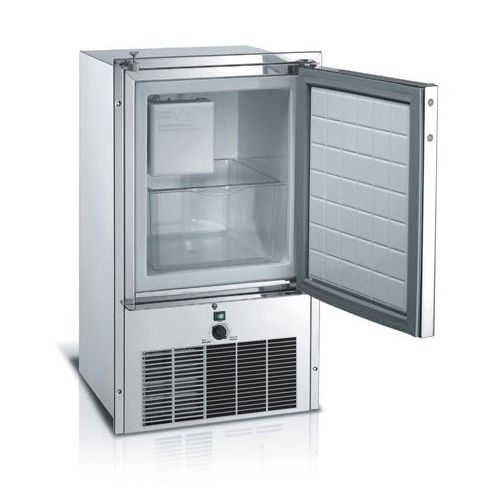

Vitrifrigo IMHYDIXN2-S Ice Maker, 220V - Stainless Steel - Surface Flange - 0.8 CU.FT
Vitrifrigo IMHYDIXN2-S Ice Maker - Volume: 0.8 cubic ft., Stainless Steel. Connect to the vessel's water system and makes Up to 18 pounds of ice a day. Power: 220 Volt AC / 50 Hz. 57.3 lbs. Nautic lock/handle, and double function thermostat for ice production or maintenance. IMHYDIXN2-S (surface flange), more details below. 3-year Limited Warranty.*
Discontinued, replaced for Vitrifrigo IMHYDIXN1X IM-CL HYDRO OCX2 Icemaker, 115V - Stainless Steel - 18 LBS OF ICE (VIEW HERE)
Click here for Marine Refrigerator Cross Reference Table
Reference: IMHYDIXN2-S
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Vitrifrigo IMHYDIXN2-S Ice Maker - Stainless Steel - Surface Flange
Features
The Vitrifrigo IMHYDIXN2-S Ice Maker is made up of stainless steel, and uses a mechanical ice-making system with a simple design concept. It can be connected to the onboard potable water system and can produce up to 18 pounds of ice a day. 220Vac.
Surface Flange (IMHYDIXN2-S)
Partially built-in with pin lock
Dual Thermostat
Double function thermostat: ice production/maintaining
Pin Lock
Double function pin: total closure and vent position
Dimensions & Specifications of Vitrifrigo IMHYDIXN2-S:
| Total volume (Cu. Ft.) | 0.8 |
| Net weight (Lbs.) | 57.3 |
| Power supply | 220Vac 50Hz |
| Nominal consumption | 140 W (0.90A) |
| Overall width (In.) | 15 1/4 |
| Overall height (In.) | 25 1/4 |
| Overall depth (In.) | 14 9/16 |
| Ice production Lbs/24h | up tp 18 |
Works As A Replacement For
| Vitrifrigo Part Number | Description | Replaces Part Number | Brand | Volume | Dimensions |
| IMHYDIXN2-S | Vitrifrigo IMHYDIXN2-S Ice Maker, 220V - Stainless Steel - Surface Flange - 0.8 CU.FT | IMXTIXN1X-Z | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 21.85" D |
| IMXRXN1X-Z | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 17" D | ||
| IMXRXN1X | Vitrifrigo | 0.8 cf | 21.49" H x 16.38" W x 17" D | ||
| IMHYDIXN1X-INT | Vitrifrigo | 0.8 cf | 24.75" H x 14.12" W x 14.56" D |

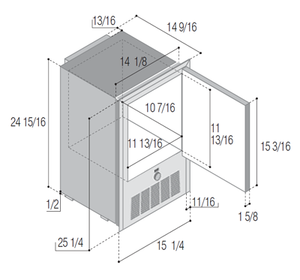

Dimensions
*Vitrifrigo America Warranty Covers 1st year Parts & Labor, 2nd Year Parts. See attachments section below for more info.
