Vanemar Basic Package

• Remote monitoring, push alerts and automated phone calls require Vanemar Connect subscription. Sold separately starting from $14.9/month.

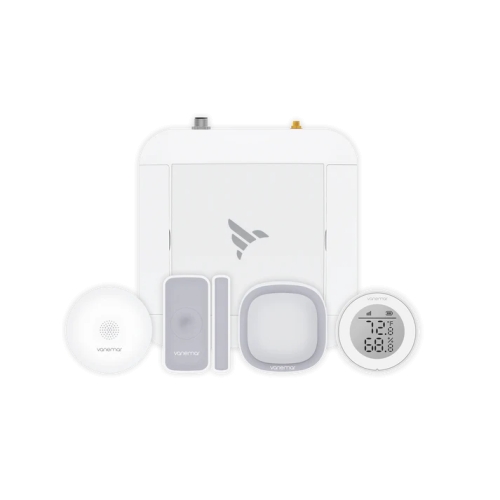

Includes:

• 1x Main Hub
• 1x Water Sensor
• 1x Entry Sensor
• 1x PIR Motion Sensor
• 1x Temperature and Humidity Sensor

Your Gateway to Smart Boating

Upgrade your boat with the Vanemar, the ultimate smart boat monitoring system for enhanced control and efficiency.

Cut Costs

Optimize boat usage and reduce expenses

Data History

Explore detailed reports of boat performance.

Remote Control

Arm/disarm your system and manage digital switches remotely.

Total Boat Security, Achieved in Just Minutes

Designed for your boat's safety, the Vanemar Gateway enables immediate tracking and easy protection. With its straightforward setup and companion wireless sensors, it paves the way for guarding against numerous threats, ensuring your vessel is secure and monitored at all times.

Quick & Easy Setup

Plug, Play, Protect: Get your Vanemar Gateway up and running in just minutes. A straightforward installation process means you can start monitoring your boat without any technical hassle.

Easily Expandable

Enhance your boat's security system effortlessly by adding wireless sensors to the Gateway. Customize your setup to suit your specific needs and enjoy comprehensive coverage

All-Around Threat Detection

With the Vanemar Gateway, directly monitor vital aspects like your boat’s location and battery status. Expand this protection effortlessly by adding wireless sensors, enhancing your defense against intrusion, high water, smoke, and other potential threats.

Track Your Boat, Anytime, Anywhere

Keep a constant eye on your boat with GPS location tracking, trip history, and geofence features, ensuring your boat stays where it should be.

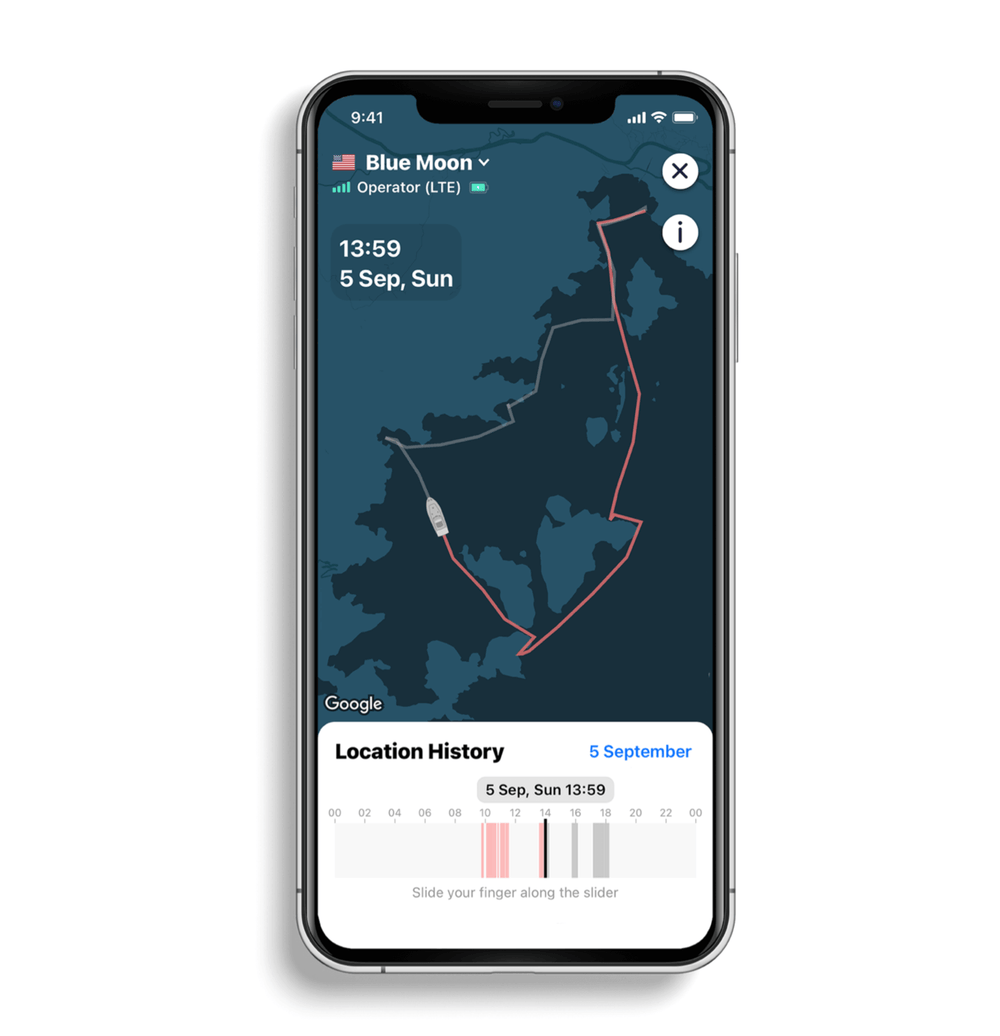

Trip History

Review your boat’s routes and locations.

Geofence

Set and monitor safe zones for your boat.

Restricted Areas

Get alerts if your boat enters or leaves designated areas.

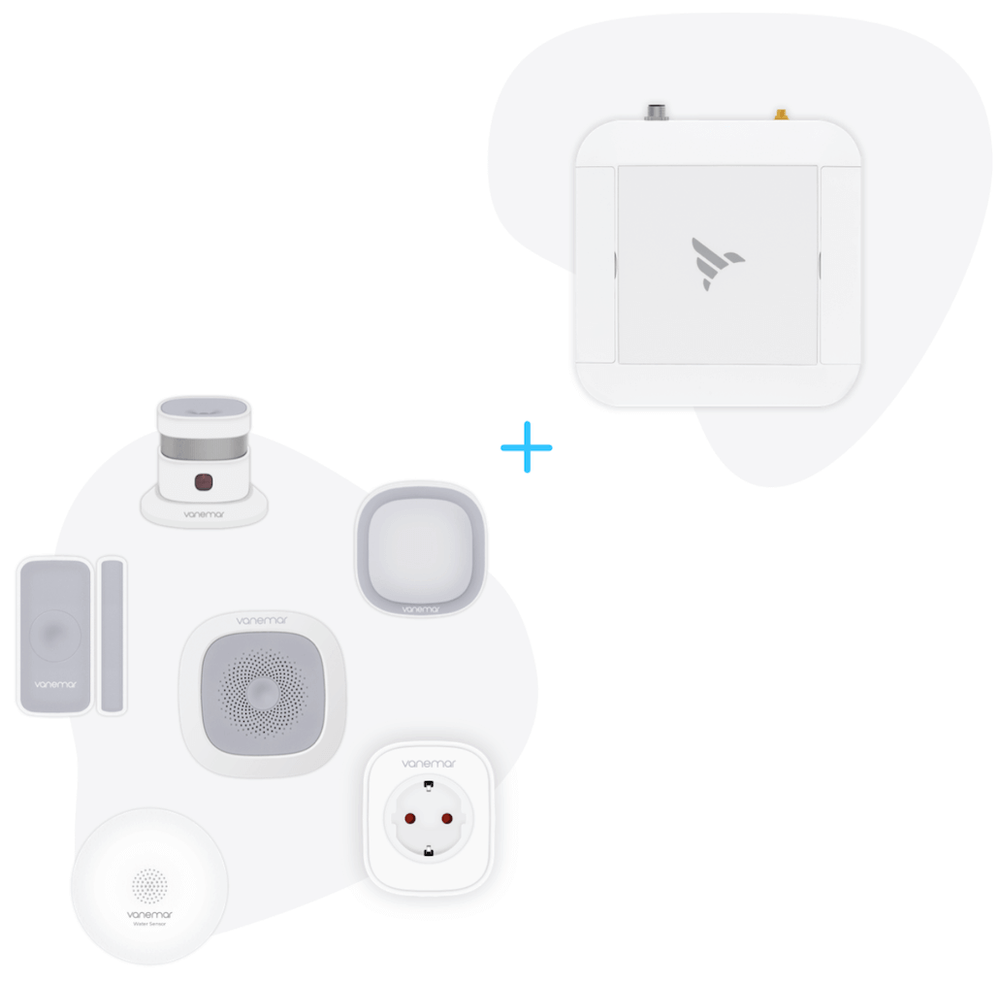

EXTEND YOUR SYSTEM WITH SENSORS

Monitor battery health, detect unauthorized entry, and prevent water damage. Stay alert with motion detection, manage power with our smart plug, and get early fire warnings. Our sensors also maintain ideal temperature and humidity, ensuring a secure and comfortable experience.

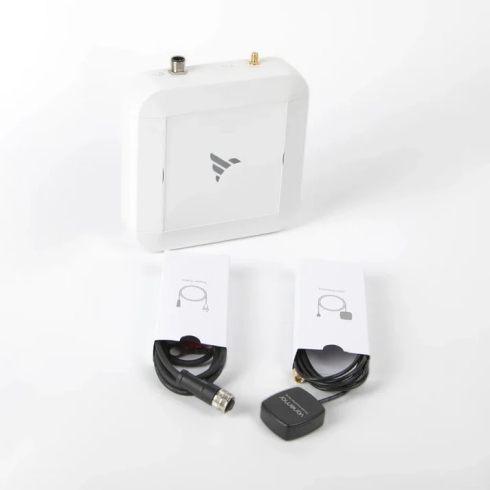

Vanemer Gateway

• Power Input: 12/24 DC, 3.8W, Waterproof Connector
• Battery Measurement: 12V/24V DC
• Backup Battery: 3450 mAh Li-ion battery (Up to 8 hours)
• Power Consumption: <100mA Idle / ~320mA Peak @12V
• Wi-Fi: 2.4 GHZ, IEEE 802.11 b/g/n
• Zigbee: Zigbee 3.0
• Accelerometer: 3 Axis, Up to 8g
• Anti-Tamper: Proximity Sensor
• SIM: Integrated Global Simcard
• Cellular: Quadband UMTS/HSDPA/HSPA+/LTE
• GNSS: GPS/GLONASS/Beidou
• Sound Output: ~85db@10cm Audible Alarm
• Operational Temperature: -10°C ~ +60°C
• Antennas: External GPS / Internal GSM (LTE)
• Gateway Dimensions: 150 X 150 X 40 mm

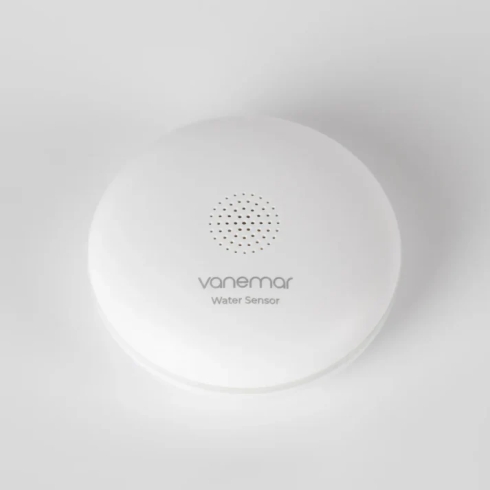

Vanemar Water Sensor

• Working Voltage: DC3V (CR123A/CR17335 battery)
• Alarm indication: Red LED indicator
• Alarm sound: ~75dB (at 1m straight ahead)
• Networking: ZigBee
• Wireless Networking Distance: ≤100 m (in the open area) ≤328 feet
• Working Environment: 0°C ~ +50°C / 32°F ~ +122°F
• Working Humidity: ~95%RH
• Battery life: Up to 2 years
• Dimensions: ø69.0xH27.6mm / ø2.72×1.09inches
• Protection: IP67

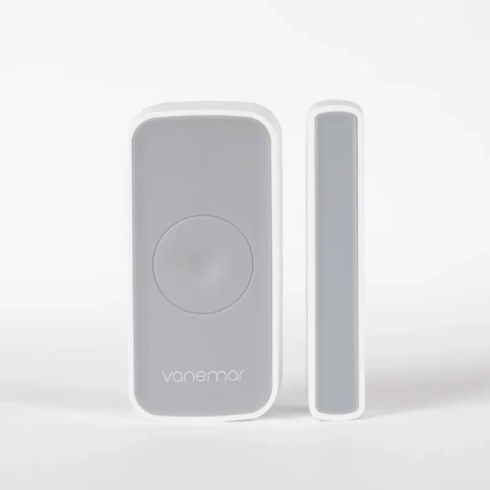

Vanemar Entry Sensor

• Working Voltage: DC3V (2 x AAA batteries)
• Detection Distance: <15 mm / <0.6 inches
• Networking: ZigBee
• Wireless Networking Distance: ≤100 m (in the open area) ≤328 feet
• Working Environment: -10°C ~ +50°C / -14°F ~ +122°F
• Working Humidity: ~95%RH
• Sensor Body Dimensions: 76x36.6x16.5mm / 2.99x1.44x0.65inches
• Magnet Dimensions: 76x13.9x16.5mm / 2.99x0.55x0.65inches

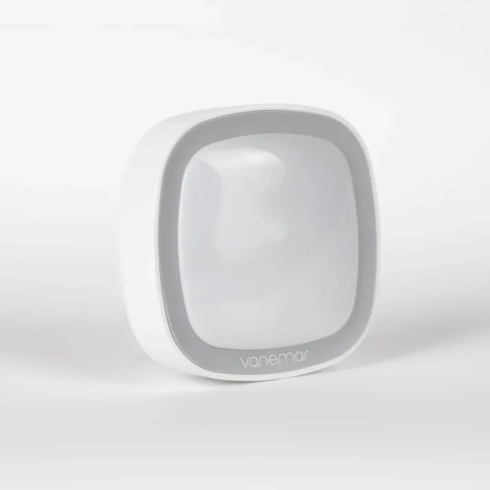

Vanemar Motion Sensor

• Working Voltage: DC3V (CR123A/CR17335 battery)
• Detecting Angle: 90°
• Detecting Distance: Up to 12m at 25°C / 39 feet at 77°F (distance varies with temperature)
• Networking: ZigBee
• Wireless Networking Distance: ≤100 m (in the open area) ≤328 feet
• Working Environment: -10°C ~ +50°C / -14°F ~ +122°F
• Working Humidity: ~95%RH
• Outline Dimension: 65x65x28.5mm / 2.56x2.56x1.12inches

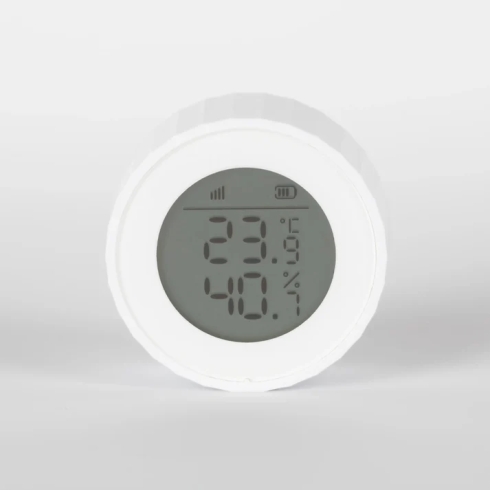

Vanemar Temperature & Humidity Sensor

• Working Voltage: DC3V (CR2450 battery)
• Networking: ZigBee
• Wireless Networking Distance: ≤100 m (in the open area) ≤328 feet
• Working Environment: -10°C ~ +50°C / -14°F ~ +122°F
• Working Humidity: ~95%RH
• Outline Dimension: 60x60x20.8mm / 2.36x2.36x0.82inches

Frequently Asked Questions

What is the Vanemar Gateway and its core functions?

The Vanemar Yacht Devices Gateway is the central hub for the Vanemar ecosystem, equipped with an internal GPS receiver for constant location tracking, wireless communication technologies to interface with Vanemar Sensors, and a built-in rechargeable battery for uninterrupted operation.

How does the Vanemar Gateway maintain connectivity?

The Vanemar Boat Gateway is equipped with a GSM module that works with over 500 operators in 200 countries, providing extensive coverage. It ensures that wherever you are, as long as there's GSM service, your Vanemar Boat Gateway stays connected.

What occurs when the Vanemar Gateway is outside GSM coverage?

If the Vanemar Boat Gateway exits the GSM coverage area, it switches to offline mode unless you set up a back up Wi-Fi connection such as satellite internet(e.g. Starlink). If Vanemar Boat Gateway went to offline mode, you'll be notified of this status change via Vanemar app. In offline mode, it continues to record all data and you can still access the Gateway through Bluetooth, if nearby. Once it reconnects to GSM, it will update the Vanemar app with all the recorded data, ensuring you don’t miss any critical information.

If you would like to stay connected outside of GSM coverage ensuring no connection loss: Learn How to Set a Backup Wi-Fi Connection for Your Vanemar Gateway.

Can the Vanemar Gateway monitor my boat’s battery status?

Yes, the Vanemar Yacht Devices Gateway continuously measures the connected battery’s voltage and will send low battery alerts, ensuring you’re always informed about your power supply.

What happens if my boat's power supply is interrupted?

The Vanemar Boat Gateway has its own backup battery that can keep it operational for up to 8 hours after a power cut, instantly alerting you of the power loss.

Does the Gateway have any protective features against tampering?

Yes, Vanemar Gateway has an innovative anti-tamper system on the back, which continuously measures the distance from its mounting point and will trigger an alarm if an interference is detected.

How many sensors can connect to the Gateway?

You can connect up to 20 wireless sensors directly to the Vanemar Gateway for various monitoring purposes. Additionally, there is no limit to the number of devices that can be connected through the Vanemar NMEA2000 Boat Adapter, providing extensive data collection capabilities for your maritime needs.

Can the Vanemar Gateway access data from existing devices on my boat like engines, tanks,etc?

Yes, the Vanemar Boat Gateway, using the Vanemar NMEA2000 Boat Adapter, can access data from your boat's existing NMEA 2000 network. It can display a variety of information such as engine performance metrics, tank levels, and environmental conditions. For detailed guidance on NMEA 2000 network setup and the types of data you can view, visit our blog: What is NMEA 2000 and How to Tell If Your Boat Has It.

What actions does the Vanemar Gateway take in alarm situations?

When the Vanemar Gateway detects critical situations like high water levels or unauthorized access, it sends instant notifications through the app. It intelligently monitors whether these alerts are seen. If they remain unnoticed for 60 seconds, the system automatically initiates a phone call from our servers to ensure you're informed about the urgent situation on your boat.
