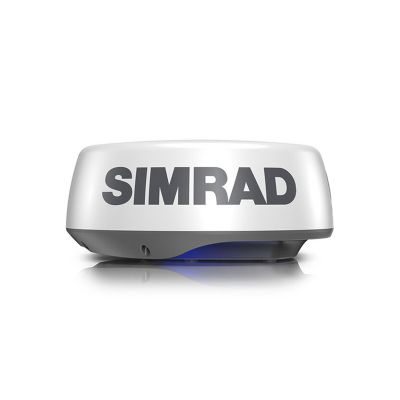

Simrad Halo 20+ Radar Dome
SIMRAD Halo 20+ Radar Dome comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. The Simrad HALO 20 Radar pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
*Get an extra $30 dollars off this unit with discount code "simrad30" in the checkout!
Reference: 000-14536-001
In Stock: 28
$2,299.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SIMRAD - HALO20 RADAR DOME
The SIMRAD Halo 20+ Radar Dome delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Better Situational Awareness, Collision Avoidance
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. Simrad HALO 20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Instantly
HALO 20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO 20+ Radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20+ Radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.
The Box:
- 10m cable for HALO Dome Radar / Nemesis
Dimensions
| ELECTRICAL | |
| Power Consumption MAX | 29W |
| Power Consumption TYPICAL | 20W |
| Recommended Fuse Rating | 5A |
| Supply Voltage | >10.5 - 31.2 VDC (12/24V Systems) |
| Humidity | 95% RH 35°C (95°F) |
| ENVIRONMENT | |
| Operating Temperature Range | -25° to +55° (-13° to +130°) |
| RWaterproof Rating | IPX6 |
| MFD | |
| Dimensions | (Diameter x H): 510mm (20") |
| PHYSICAL | |
| Dimensions (W x H x D) | 510mm dia x 223 mm H. (20" dia x 8.8" H) Weight: 5.9 kg (13 lbs) without cable |
| Weight | 5.9 Kg (13 lbs) without cable |
| RADAR | |
| Beam Width | 4.9°H nominal (~3dB) 2.5° with target separation on high x 25°V |
| Max Range Scale | 36 NM |
| Max Operating Wind Speed | 100 knots (51m/s) |
| Min Range Scale | 50m/ 200ft/ 50yd |
| Radar Modes | Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative Motion, True Motion |
| Radar Technology | Pulse Compression |
| Rotation Speed | Up to 60 RPM (Range Dependent) |
| OTHER | |
| Warranty Period | 2 Years |
Features
- 36 nm range from a compact 20-inch dome.
- Advanced pulse compression technology with beam sharpening.
- Simultaneous Dual Range operation sees both far and near.
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm.
- VelocityTrack™ Doppler technology to avoid collision.
- Easy operation with harbour, offshore, weather and custom modes
Easy to Use
Harbour, Offshore, Weather, Bird, and custom modes tune Simrad HALO 20+ Radar advanced signal processing to help ensure that targets can be seen vividly — even in the toughest environmental conditions.
