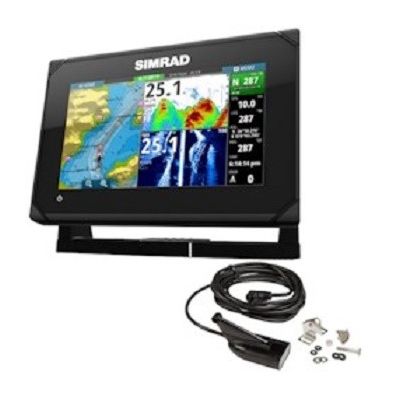

Simrad GO7 XSR Multi-Function Display HDI Skimmer Transducer 000-14326-001

Simrad GO7 XSR Multi-Function Display HDI Skimmer Transducer 000-14326-001

By buying this product you can collect up to Your cart will total 69 points that will be converted into a of $6.90 towards your next purchase! Must be to collect points.

Simrad GO7 XSR Multi-Function Display HDI Skimmer Transducer 000-14326-001

Customer ratings and reviews

Simrad GO7 XSR Multi-Function Display HDI Skimmer Transducer is a Chartplotter w/ HDI Skimmer 455/800 Transducer (Includes Base Map). Display: 7". Nominal Voltage Supply: 12 Volt DC. Includes: Built in Echosounder, GPS and Wi-Fi. Resolution 800x480. Shipping Weight: 6.75 Lbs Warranty period 2 Years.

000-14326-001

$699.00

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Simrad GO7 XSR Multi-Function Display HDI Skimmer Transducer

SIMRAD GO7 XSR 000-14326-001

Chartplotter Navigation & Waypoint Management

Simrad GO series displays are full-featured chartplotters with support for a wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®, and NV Digital® Charts
Mark waypoints with a simple touch, and assign meaningful names that make them easy to find on your next trip
Find fish with CHIRP & StructureScan® HD sidescan imaging
Add a suitable transducer and your GO series display works as a powerful fishfinder, complete with CHIRP technology for clear detection of fish throughout the water column
Add an HDI transducer for Chirp and DownScan imaging or use a TotalScan transducer to get the full suite of StructureScan HD sonar including SideScan imaging

Expand Your View with a Simrad Radar Solution

The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems
Cruise confidently through crowded harbors, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots
Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.

Easier Navigation with Automatic

Routing Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay
Simply select a destination, and your display will suggest the shortest, safest route
This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing).
Live support Enjoy the most up-to-date charts on the water with Navionics SonarChart Live
Cruise Charting View Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display
Cruise Charting View Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display

Simrad SonicHub®2 Compatible

The optional SonicHub®2 module is the perfect companion to your GO series display
Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit

Built-in Wireless Connectivity

The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot
On the water, connect your Simrad GO series display to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free Link app

Note: Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fiberglass hulls

TotalScan Transom Mount Transducer

All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
Target fish and search for fish-holding structure with the same transducer
Also supports 83/200kHz Broadband Sounder frequencies
Supports Medium and High CHIRP Sonar frequencies
Supports 455/800kHz StructureScan HD frequencies
Multiple mounting options

Features:

The Simrad GO7 Multifunction Display with HDI Skimmer is an easy to use multi-touch interface Radar display for Simrad Broadband 3G™/4G™ and Halo™ Pulse Compression radar
Supports the widest range of charts Widescreen with bright LED backlight Built-in Broadband Sounder™, CHIRP sonar, StructureScan® HD imaging or ForwardScan™ sonar support (transducer required)
Compatible with the Simrad WM-3 SiriusXM satellite weather module (North America only)
Easy to Use Multi-Touch Display The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar
Customize your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views

HDI Skimmer Features:

Function: Depth / Temperature
Material: Plastic
Frequency:
Medium / High Frequency
455/800 Transducer
Connector: 9-Pin Black
Includes Mount for Skimmer and Top Housing.


GO7 Display Specifications:

Display

Resolution: 800x480
Screen brightness: 1200 nits
Size and type: 7" Diagonal High Visibility Color TFT LCD
Backlight color: White
Viewing angles: 80° top/bottom, 80° left/right of center

Electrical

Recommended fuse rating: 3A
Power consumption(max): 20 W
Power consumption nominal: 12 W
Supply voltage: 12 V DC (10 - 17 V DC)

Connectivity

Ethernet: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only
Radar compatibility: Halo, Broadband, HD Radars
Sonar: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector:
Connection to any external sounder module is not supported.
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 No connection but exports NMEA 0183 over WiFi
Video: In / Out None
WiFi: Internal
Bluetooth: Internal
GPS antenna Internal:
GPS time to first fix Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec
GPS correction WASS, MSAS, EGNOS, GLONASS, (Galileo, BeiDou. Limited by network)
GPS position accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS receiver channels 32 Channels
GPS update rate 10 Hz
AIS Receive AIS data over NMEA 2000 only

Environmental

Operating temperature range: -15°C to +55°C (5° F to 131° F)
Storage temperature range: -20°C to +60°C (4°F to 140°F)
Waterproof rating: IPX 6 and 7
Shock / vibration CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1"

Physical

Mounting methods: Bracket or Panel
Dimensions W x H x D: 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)
Software Interface: Touch screen, OP40 or OP50 controller via NMEA 2000

Supported cartography

Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Weather

SiriusXM via WM-3 (USA only), GRIB

Autopilot

Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
System requires STBY button or Controller with STBY button to commission the pilot
Digital switching BEP C-Zone

Autopilot steering modes

Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Autopilot maneuvers & turn patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Internal user data storage: 90MB
Waypoints, routes and tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
External storage: 2 Micro SD slots, max. 32GB (format FAT32 each). >32 GB cards require cards to be formatted to NTFS
Multimedia
Via SonicHub2, FusionLink, Sirius, (USA Only)
Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1"
Warranty period 2 Years

Package Includes:

000-12728-001 HDI Transducer (MED / HIGH HDI Skimmer with Mount)
000-12372-001 Mounting Bracket GO7 XSR and Vulcan 7R
000-14230-001 GO7 XSR, Vulcan 7R Bezel
000-14229-001 GO7 XSR, Vulcan 7R Dash mount kit
000-14227-001 GO7 XSR Suncover
000-00128-001 Power Cable (4-Pin conn. to 4 bare wires for Power in, Power control bus and external alarm) 2 m (6.5 ft)
