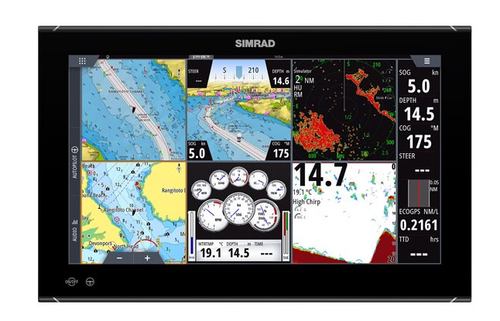

Simrad NSO evo3 19" Multifunction Display
SIMRAD NSO evo3 19" Multifunction Display - Build your ultimate navigation system around NSO evo3. A stunning Full HD display lets you see more than ever, while an integrated high-performance processor ensures a swift response to your every command. 000-14003-001 The MFD includes:
Simrad NSO evo3 19" Monitor
Suncover
MO19 Bezels EVO3
RJ45 Adapter Cable, and more...
Discontinued
Simrad NSO evo3 19" Monitor
Suncover
MO19 Bezels EVO3
RJ45 Adapter Cable, and more...
Discontinued
Reference: DISCONTINUED
$8,799.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SIMRAD NSO evo3 19" Multifunction Display
Ultimate Clarity
Simrad NSO evo3 delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.
Intuitive Control
A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.
Swift Response
Every Simrad NSO evo3 display features an integrated quad-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.
Glass Helm Style
Simrad NSO evo3 glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.
Fully Connected
Built-in wireless connectivity links Simrad NSO evo3 to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.
Key features of Simrad NSO evo3 19" Multifunction Display
Ultra-bright, Full HD 19-inch display
Easy touchscreen control of your entire Simrad system
Integrated quad-core processor for ultimate performance
Low-profile glass helm styling
See more than ever with six-panel split screen option
Connect with smartphones, tablets, and internet hotspots
Kit includes keypad, GPS antenna, and chart card reader
Specifications
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Catography included: World basemap
N2K PGNs: Receive only 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage, Transmit and Receive: 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration Transmit only 65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Charts supported: Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Radar compatibility: Halo, Broadband, HD Radars
SD Card Storage: 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
Weather: SiriusXM via WM-3 (USA only), GRIB
Sonar Compatibility: External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required
GPS: External GPS required
Ethernet Ports: 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: HDMI Video in from a PC
NMEA 0183 Sentences supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Video: 2x composite video (BNC) 1x high definition video (1080p, HDCP 1.4, HDMI-A) 1x high definition video output (1080p, no HDCP, HDMI-A)
Item Connectivity WiFi: Internal 802.11b/g/n
Bluetooth: Internal
AIS: Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Warranty Period: 2 Years
Interface: Touch screen, OP40 or OP50 controller via NMEA 2000
Dimensions H x W x D: 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27“) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45“)
Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Digital Switching: BEP C-Zone, Naviop
Mounting Type: Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight: 4.8 kg (10.5 lbs.)
Compass Safe: 50 cm (19.7")
Charts Supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range: "-20°C to +60°C (4°F to 140°F)
Waterproofrating: IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Recommended Fuse Rating: 7 A @ 12 V DC
Display Resolution: 1920x1080
Screen Brightness: 1200 nits
Backlight Color: White
Power Consumption max: 50 W +- 4 W
Viewing Angles: 80° top/bottom, 80° left/right
Supply Voltage: 10 - 32 V DC
Includes:
Ultimate Clarity
Simrad NSO evo3 delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.
Intuitive Control
A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.
Swift Response
Every Simrad NSO evo3 display features an integrated quad-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.
Glass Helm Style
Simrad NSO evo3 glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.
Fully Connected
Built-in wireless connectivity links Simrad NSO evo3 to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.
Key features of Simrad NSO evo3 19" Multifunction Display
Ultra-bright, Full HD 19-inch display
Easy touchscreen control of your entire Simrad system
Integrated quad-core processor for ultimate performance
Low-profile glass helm styling
See more than ever with six-panel split screen option
Connect with smartphones, tablets, and internet hotspots
Kit includes keypad, GPS antenna, and chart card reader
Specifications
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Catography included: World basemap
N2K PGNs: Receive only 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage, Transmit and Receive: 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration Transmit only 65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Charts supported: Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Radar compatibility: Halo, Broadband, HD Radars
SD Card Storage: 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
Weather: SiriusXM via WM-3 (USA only), GRIB
Sonar Compatibility: External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required
GPS: External GPS required
Ethernet Ports: 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: HDMI Video in from a PC
NMEA 0183 Sentences supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Video: 2x composite video (BNC) 1x high definition video (1080p, HDCP 1.4, HDMI-A) 1x high definition video output (1080p, no HDCP, HDMI-A)
Item Connectivity WiFi: Internal 802.11b/g/n
Bluetooth: Internal
AIS: Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Warranty Period: 2 Years
Interface: Touch screen, OP40 or OP50 controller via NMEA 2000
Dimensions H x W x D: 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27“) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45“)
Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Digital Switching: BEP C-Zone, Naviop
Mounting Type: Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight: 4.8 kg (10.5 lbs.)
Compass Safe: 50 cm (19.7")
Charts Supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range: "-20°C to +60°C (4°F to 140°F)
Waterproofrating: IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Recommended Fuse Rating: 7 A @ 12 V DC
Display Resolution: 1920x1080
Screen Brightness: 1200 nits
Backlight Color: White
Power Consumption max: 50 W +- 4 W
Viewing Angles: 80° top/bottom, 80° left/right
Supply Voltage: 10 - 32 V DC
Includes:
- Simrad NSO evo3 19" Monitor
- Suncover
- MO19 Bezels EVO3
- RJ45 Adapter Cable
- Rear Mount Bracket Kit
- EVO3 Cable Retnetion Bracket
- N2K 4 Way Joiner
- N2K Power Cable
- N2K 6' (1.82m) Backbone Cable
- N2K Terminators
