By buying this product you can collect up to 84 Citimarine points. Your cart will total 84 points that will be converted into a voucher of $8.40 towards your next purchase! Must be logged in to collect points.

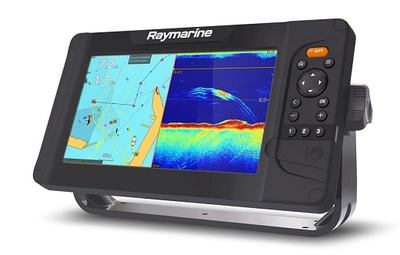

Raymarine Element 9S with Navionics Plus USA and Canada - No Transducer
RAYMARINE Element 9S with Navionics Plus USA and Canada (No Transducer) gives you the freedom to enjoy the open waters. Select your destination and let Element’s fast & accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity & affordable performance, Raymarine Element 9S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance & Element’s all-weather, sunlight viewable displays deliver chart & navigation data in beautiful color. Free US Shipping.
Reference: E70533-00-NAG
In Stock: 2
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RAYMARINE Element 9S No Transducer Navionics Plus USA and Canada - Raymarine E70533-00-NAG
Raymarine Element 9S - Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.
Features of Raymarine Element 9S with Navionics Plus
Specifications of Raymarine E70533-00-NAG
Raymarine Element 9S Display Size: 9.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Non-Touch
Brightness: 1,500 nits
W x H x D (mm): (11.3 x 6.3 x 2.4 inches)
Product Weight (lbs): 5.0
Water Ingress Protection: IPx6 and IPx7
Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 20 Watts
GNSS / GPS: Built-in GPS/GLONASS
Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth: CHIRP Sonar = 274m (900 feet)
Radar: Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar: N/A
MARPA: N/A
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi: WiFi - 802.11 b / g / n
Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Lice
Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory: 1 x microSD slots
Dimensions: 287 x 161 x 62mm
What's in the Box:
Raymarine Element 9S - Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.
Features of Raymarine Element 9S with Navionics Plus
- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine’s three-year warranty (product registration required)
- Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
- From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
- An oversized waypoint key for quick and easy marking of your favorite locations
- Three user-programmable quick keys to access your favorite pages with one button push
- Live menus let you customize charts while seeing the navigation display change in real time
Specifications of Raymarine E70533-00-NAG
Raymarine Element 9S Display Size: 9.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Non-Touch
Brightness: 1,500 nits
W x H x D (mm): (11.3 x 6.3 x 2.4 inches)
Product Weight (lbs): 5.0
Water Ingress Protection: IPx6 and IPx7
Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 20 Watts
GNSS / GPS: Built-in GPS/GLONASS
Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth: CHIRP Sonar = 274m (900 feet)
Radar: Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar: N/A
MARPA: N/A
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi: WiFi - 802.11 b / g / n
Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Lice
Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory: 1 x microSD slots
Dimensions: 287 x 161 x 62mm
What's in the Box:
- Raymarine Element 9S display
- Surface mount gasket
- Suncover
- Trunnion knobs x2
- Documentation pack
- Trunnion bracket
- Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
- Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
