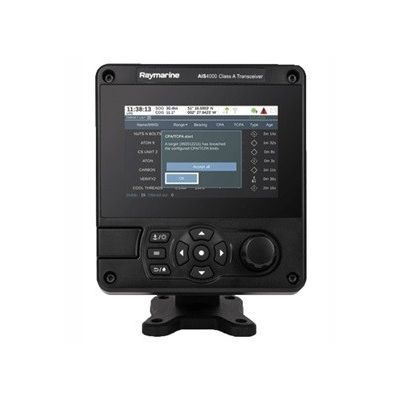

Raymarine AIS 4000 Class A AIS Transceiver
RAYMARINE AIS 4000 Class A AIS - Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class. Power supply: 12 to 24 VDC. Frequency: 156.025 MHz to 162.025 MHz. E70601 Free US Shipping.
Reference: E70601
In Stock: 2
Reg Price: $2,799.99
CPlus Price:
$2,701.99
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RAYMARINE AIS 4000 Class A AIS Transceiver - E70601
Specifications of the Raymarine AIS 4000 Class A AIS Transceiver - E70601
Physical
Dimensions: 152 mm 165 mm 70 mm
Weight: 1 kg
Electrical
Power supply: 12 to 24 VDC
Power consumption: 0.5A at 12v (6W)
Connectors
VHF antenna connector: Yes
GNSS antenna connector: Yes
Power: Two-pin connector (cable provided)
Serial interfaces and alarm relay: 18-pin connector (cable provided)
Serial inputs: 14-pin connector (cable provided)
NMEA 2000: NMEA 2000 micro connector
Data Interfaces
NMEA 0183 (IEC61162-2) bi-directional ports: 3
NMEA 0183 (IEC61162-1) bi-directional ports: 3
DGPS correction data input (ITU-R M.823-2): 1
Alarm relay output: 1
NMEA 2000: 1
Wi-Fi: 802.11 b/g/n
Pilot Port: 1 (optional)
Standards Compliance
AIS standard: IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0
Serial data interface standards: IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2
Environmental Standard: IEC 60945 Ed 4.0
GNSS performance standard: IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0
Product safety: IEC 60945 Ed 4.0
VHF Transceiver
Transmitter: 1
Receiver: 3
Frequency: 156.025 MHz to 162.025 MHz
Output Power: 1 W or 12.5 W (automatic)
Channel Bandwidth: 25 kHz
Channel Step: 25 kHz
Modulation Modes: CMSK-TDMA
Bit Rate: 9,600 bits/sec
Receiver Sensitivity: -107 dBm @ 20% PER
GNSS Receiver and Transceiver
Channels: 72
GNSS systems: Supports parallel dual mode operation from GPS, GLONASS, and BeiDou
IEC61108-1: Compliant
IEC61108-2: Compliant
GNSS antenna: Supplied
User Interface: 5" 800 480 full color LCD display
Environmental
Waterproof: IPx6 and IPx7-rated for water ingress
IEC 60945: ‘Protected’ category
Operating Temperature: -15°c to +55°c
What's in the Box:
Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the Raymarine AIS 4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.
The Raymarine AIS 4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.
ADVANCED CLASS A AIS CAPABILITIES
Raymarine AIS 4000 is a full-function Automatic Identification System transceiver certified for SOLAS and Inland Waterway applications.
- Fourth generation AIS technology for expanded speed, range, and processing performance
- Full color target display with optional C-MAP ENC mapping
- Integrated Man Overboard/PLB alerting and tracking system
- CPA/TCPA data and alarms
RUGGED AND VERSATILE
Designed for harsh conditions, AIS 4000 is right at home on any vessel class.
- Certified to the highest industry standards for waterproofness, shock, and vibration
- Compact enclosure with NMEA2000 and NMEA0183 connectivity
- Junction box included for expanded shipboard sensor and ECDIS connectivity
- Flexible overhead, bulkhead, desktop, and surface mount options
BOLD, BRIGHT, AND HIGHLY CAPABLE
The full-featured Raymarine AIS 4000 brings a new level of functionality to Class A transceivers.
- Large 5” 800 × 480 color display
- Integrated Wi-Fi
- NMEA 2000
- Easy-to-use, intuitive interface
Specifications of the Raymarine AIS 4000 Class A AIS Transceiver - E70601
Physical
Dimensions: 152 mm 165 mm 70 mm
Weight: 1 kg
Electrical
Power supply: 12 to 24 VDC
Power consumption: 0.5A at 12v (6W)
Connectors
VHF antenna connector: Yes
GNSS antenna connector: Yes
Power: Two-pin connector (cable provided)
Serial interfaces and alarm relay: 18-pin connector (cable provided)
Serial inputs: 14-pin connector (cable provided)
NMEA 2000: NMEA 2000 micro connector
Data Interfaces
NMEA 0183 (IEC61162-2) bi-directional ports: 3
NMEA 0183 (IEC61162-1) bi-directional ports: 3
DGPS correction data input (ITU-R M.823-2): 1
Alarm relay output: 1
NMEA 2000: 1
Wi-Fi: 802.11 b/g/n
Pilot Port: 1 (optional)
Standards Compliance
AIS standard: IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0
Serial data interface standards: IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2
Environmental Standard: IEC 60945 Ed 4.0
GNSS performance standard: IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0
Product safety: IEC 60945 Ed 4.0
VHF Transceiver
Transmitter: 1
Receiver: 3
Frequency: 156.025 MHz to 162.025 MHz
Output Power: 1 W or 12.5 W (automatic)
Channel Bandwidth: 25 kHz
Channel Step: 25 kHz
Modulation Modes: CMSK-TDMA
Bit Rate: 9,600 bits/sec
Receiver Sensitivity: -107 dBm @ 20% PER
GNSS Receiver and Transceiver
Channels: 72
GNSS systems: Supports parallel dual mode operation from GPS, GLONASS, and BeiDou
IEC61108-1: Compliant
IEC61108-2: Compliant
GNSS antenna: Supplied
User Interface: 5" 800 480 full color LCD display
Environmental
Waterproof: IPx6 and IPx7-rated for water ingress
IEC 60945: ‘Protected’ category
Operating Temperature: -15°c to +55°c
What's in the Box:
- Raymarine AIS 4000 Bundle
- GNSS Antenna
- Power Cable
- 2 x Data Interface Cables
- Fixings Pack
- DeviceNet to STNg Cable
- Manual
- Warranty Card
- Mounting Template
- Quick Start Guide
