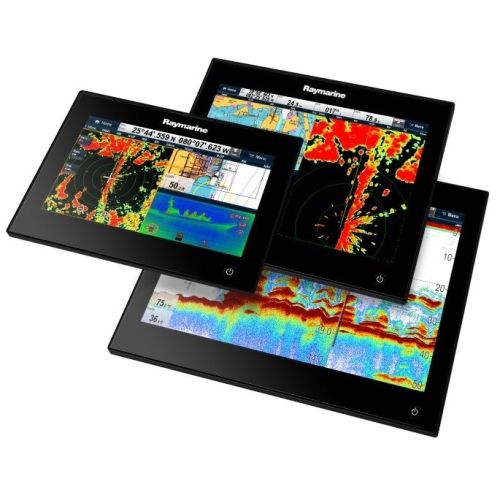

RAYMARINE gS Premium Glass Bridge MFD - select gS125 (12.1") or gS165 (15.4")

RAYMARINE gS165 (15.4") and RAYMARINE gS125 (12.1") Premium Glass Bridge Multifunction Navigation Display - Elegant, flexible & simple to use, transform your helm into a powerful glass bridge navigation system. Equipped with Raymarine's fastest dual core processor & a third dedicated graphics processor, the gS delivers super fast performance & unrivaled HD imagery.

Item out of production. Replaced by Axiom XL or Axiom PRO (Click Here to View)

Reference: E70126 - 723193768402
Raymarine gS Display Size

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

RAYMARINE gS165 & RAYMARINE gS125 Premium Glass Bridge Multifunction Navigation Displays MFD - Elegant. Powerful. Easy To Use.

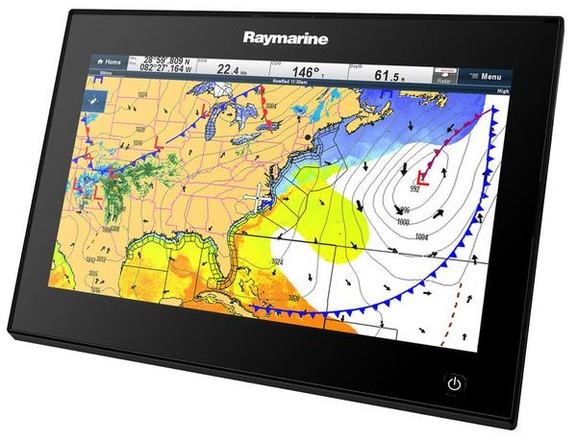

Raymarine gS165

RAYMARINE gS165 & RAYMARINE gS125 Premium Glass Bridge Multifunction Navigation Display. Elegant, flexible & simple to use, the Raymarine gS MFD will transform your helm into a powerful glass bridge navigation system. Equipped with Raymarine's fastest dual core processor plus a third dedicated graphics processor, the gS delivers super fast performance & unrivaled HD imagery.

Key Features of The Raymarine gS165 & Raymarine gS125 Series MFD

Smart displays - a step beyond black box systems, each gS Series is a smart touch screen MFD
gS Series displays with LightHouse II are the pinnacle of simplicity and performance
Smooth and responsive multi-touch control with pinch to zoom

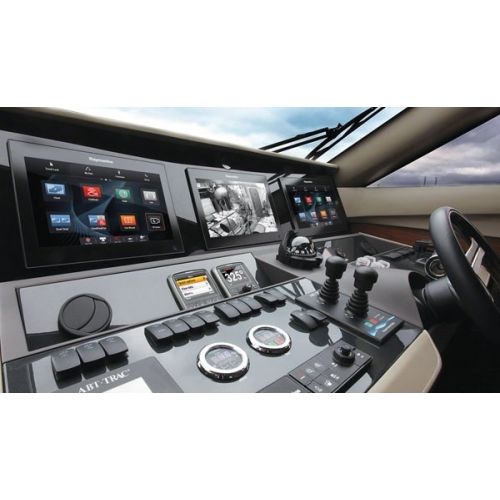

Create a single display installation or expand gS Series into a multi-station system, the choice is yours.
For added flexibility, gS Series systems network seamlessly with any LightHouse II powered Raymarine MFD, allowing you to customize a navigation network that's just right for you.

Powered by Raymarine's LightHouse II User Interface

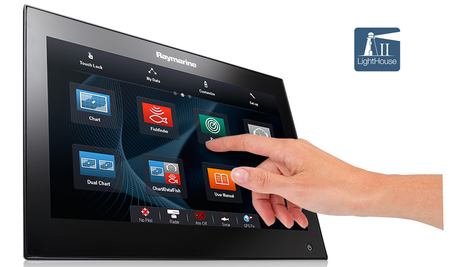

Raymarine gS Series Angled LH

Designed for the way boaters think, Raymarine's exclusive LightHouse User Interface (UI), offers an incredibly easy-to-use navigation experience. LightHouse intuitively places frequently used navigation functions right at your fingertips.
With just a few swipes of the LightHouse home screen you will quickly become an expert.

RAYMARINE gS165 and RAYMARINE gS125 - Unmatched HD Video Quality, All Found in A Marine Display. Digital HD Video Output & Input

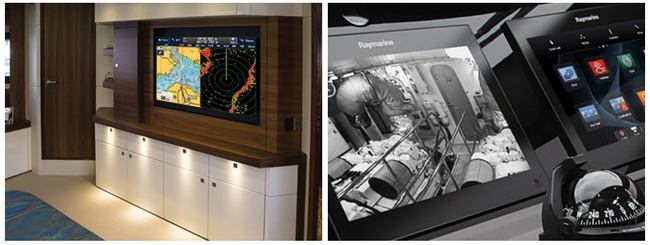

Raymarine gS165 MFD

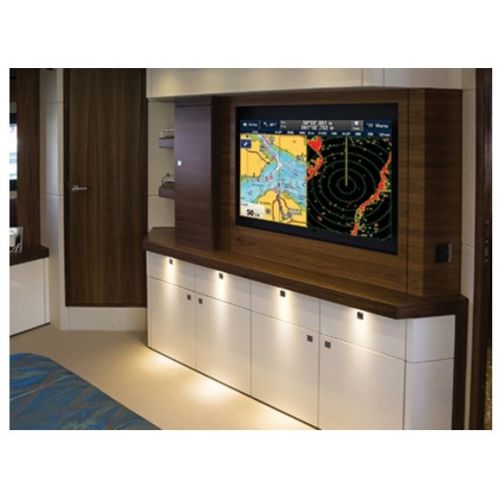

Digital HD Video Output: HDMI output enables connection for remote monitors or big screen TVs. Connect gS to your TV in the saloon and take control of the system with your tablet or smartphone via Raymarine mobile apps.

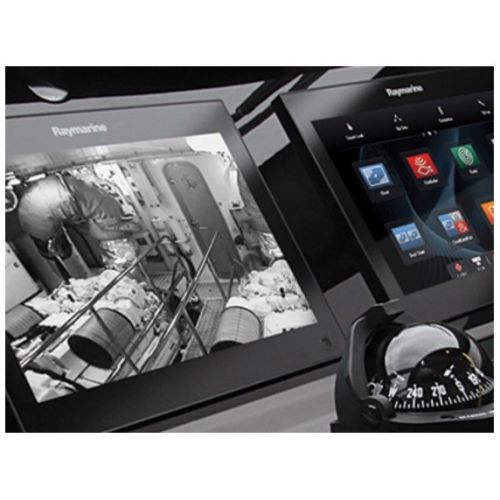

Digital HD Video Input: gS supports multiple network IP cameras. Monitor Engine room cameras, crew quarters or docking cameras with just a swipe of the touch screen.

Control your gS Series with Ease

Enjoy fluid and effortless full touch-screen interaction with Raymarine’s easy-to-use LightHouse II user interface or interact with any gS display from a single RMK-9 remote keypad. You can also take control of your gS Series from your tablet or smartphone using built-in Wi-Fi and Raymarine's free mobile apps, or via the RCU-3 Bluetooth remote.

Raymarine gS95

Multi-touch and Pinch to zoom: Navigating with gS is incredibly simple with the smooth and responsive multi-touch control of Raymarine's LightHouse user interface. With gS you also have pinch-to-zoom chart control.

Raymarine RMK remote

RMK-10 Remote: The optional RMK-10 Remote Keypad gives you full control of single or multiple gS displays from a remote location. The keypad can be used in portrait or landscape orientation.

Raymarine gS125

Wi-Fi: Free Mobile apps: Access Raymarine anywhere onboard via Raymarine mobile apps and gS built-in Wi-Fi. Take full control of your gS direct from your tablet or smart phone.

Raymarine gS195
Bluetooth: RCU-3 Remote: Simple wheel-mounted wireless remote lets you change range scales, switch between apps or mark waypoints.

The Best Charts

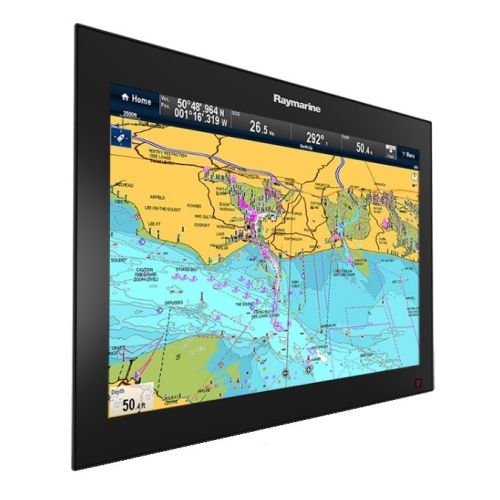

The advanced LightHouse chart engine gives you the freedom to choose Navionics, C-MAP by Jeppesen or Raymarine LightHouse compatible charts.

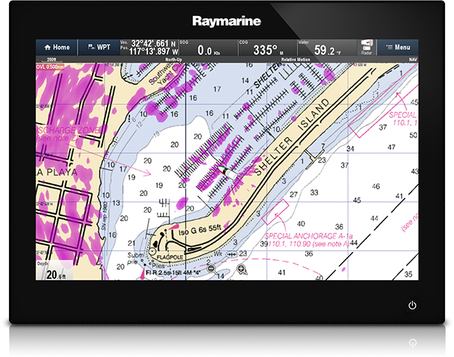

Raymarine gS Series Cartography

Total Vessel Control

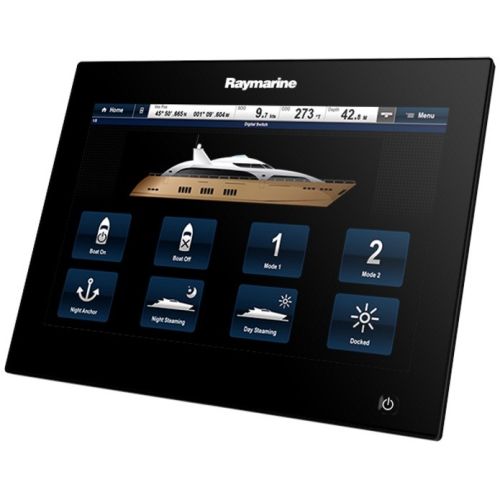

Optional EmpirBus™ Digital Switching modules allow gS to take control of the vessel's electrical systems. Control lighting, monitor electrical systems and much more.

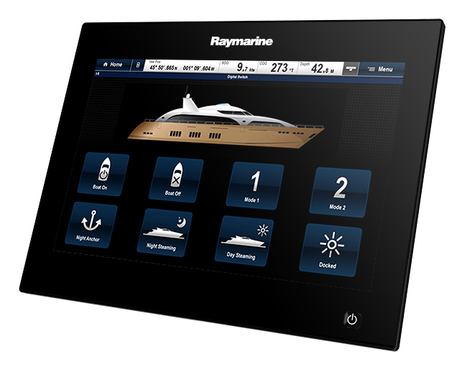

Raymarine gS Series Digital Switching

Powerful Navigation Network

gS meets the needs of demanding skippers looking for integrated navigation with unprecedented flexibility. Create a single display touch-screen navigation system or expand gS Series into a multistation system with remote keyboard control, the choice is yours. This system can also be linked directly to Raymarine's latest MFD range. Find out more about expanding your gS network with radar, sonar, thermal and more...

Raymarine Navigation Network

System Add-Ons and Related Products - Expand your RAYMARINE gS Network

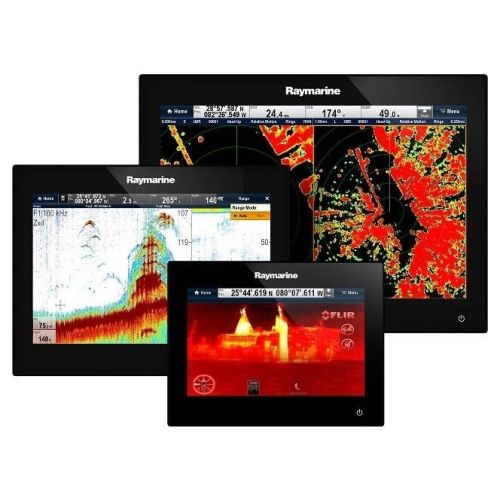

Configure your gS as a single all-in-one chart, radar and sonar navigation display or expand into a navigation network with multiple displays, CHIRP DownVision / RealVision sonar, thermal night vision and more.

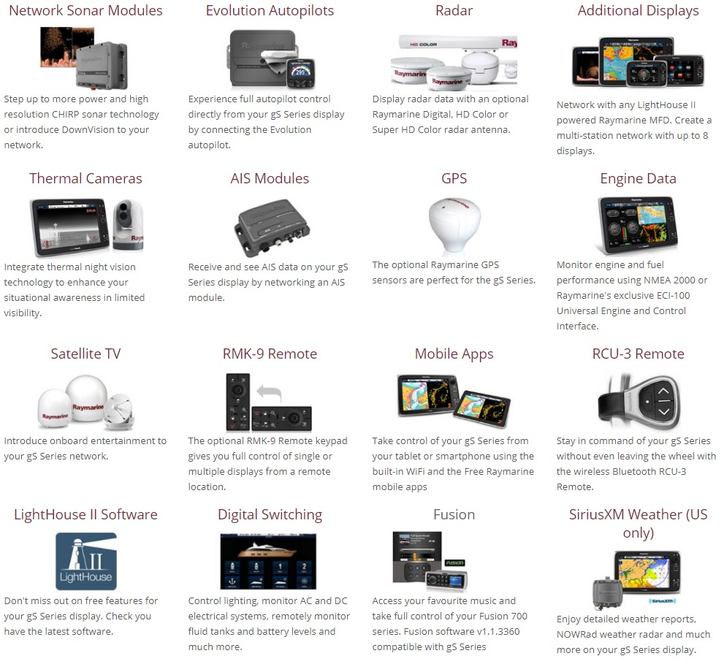

Raymarine gS Connectivity

Display Specifications

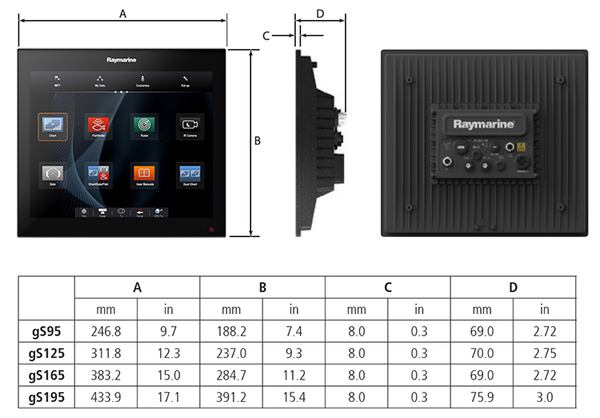

Raymarine gS Series dimensions

Screen Resolution: 1280 x 800 pixels (gS125 & gS165)
Touch Screen: Multi-touch with pinch to zoom

Networking and Compatibility

GPS: Optional external RS130 50 channel GPS sensor, WAAS/EGNOS/MSAS
Sonar: Yes. Compatible with a range of sonar modules including CP100 CHIRP DownVision sonar, CP300 Digital sonar and CP450C CHIRP sonar
Network Sonar Support: Yes
Radar: Yes. Optional Radome or Open Array Scanners
Thermal night vision: Yes. Compatible with a range of cameras
Autopilot control: Full control and integration with Evolution autopilots
Engine integration: Yes. NMEA2000 or via ECI-100 Universal Engine Interface

Chart Specifications

Chart Support: Support for Navionics, C-MAP by Jeppesen and Raymarine LightHouse chart formats on microSD cards
Temory Card Reader: Dual MicroSD external card reader for charts and data
Data Transfer Options: GPX File Format / Raymarine .FSH Format / via Wi-Fi and Navionics Boating App

Other Specifications
Interfaces: NMEA0183/ SeaTalkng / Ethernet
Mounting: Flush or surface mount
Multi-language: Yes
Power Requirements: 12 or 24 volt systems
Waterproof Rating: IPX6
*Warranty: 2 years standard plus an additional year when you register your product online.

In the Box

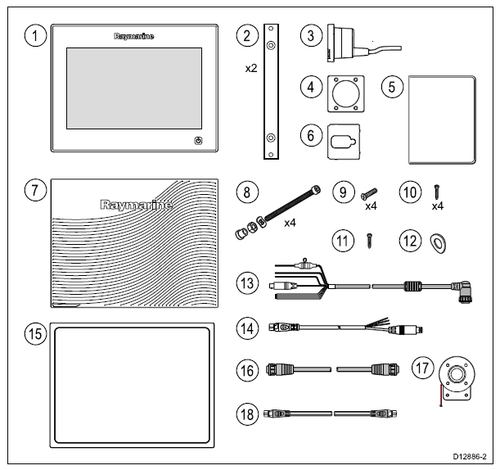

Raymarine gS Series Typical box contents

1  Multifunction Display (MFD)
2  2 x Display mounting brackets
3  RCR-2 Remote Card Reader
4  Mounting gasket for RCR-2
5  Document pack
6  RCR-2 inlay card x 2
7  Sun cover
8  4 x Mounting bolts, washers, lock nuts and feet
9  4 x Bracket fixings (gS95 = M5 x 25 pan head)
10  4 x RCR-2 fixings (self-tapping screws)
11  M5 x 10 pan head screw (not supplied with gS95)
12  M5 Wavy washer (for additional grounding strap)
13  1.5 m (4.9 ft) Power / Data cable
14  2 m (6.6 ft) Video / Alarm cable
15  Display mounting gasket
16  2 m (6.6 ft) RayNet cable
17  Auxiliary alarm
18  1m (3.28 ft) SeaTalkng spur cable

Additional parts supplied with the gS display

RMK-9 Remote Keypad (A80217)
Protective Boot
75 ohm BNC connector
Cable ties x 2 (to secure the protective boot)

Raymarine Logo

Warranty On Raymarine gS Premium Glass Bridge MFD

*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
