Raymarine Axiom 7 DV - 7" DV Combo w/ CPT-100DVS Transducer

Raymarine Axiom 7 DV - 7" DV Combo w/ CPT-100DVS Transducer

By buying this product you can collect up to Your cart will total 67 points that will be converted into a of $6.70 towards your next purchase! Must be to collect points.

Raymarine Axiom 7 DV - 7" DV Combo w/ CPT-100DVS Transducer

Customer ratings and reviews

The Raymarine Axiom 7 DV 7" MFD CPT-100DVS No Chart is a powerful new multi-function navigation system with built-in RealVision 3D sonar, new LightHouse 3 operating system, and blazing fast quad-core performance, AXIOM will transform your time on the water. MFG: E70364-02. 3-Year Warranty*, Free US Shipping!

In Stock: 7


Reg Price: $679.99
CPlus Price: $656.19 Question mark icon

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

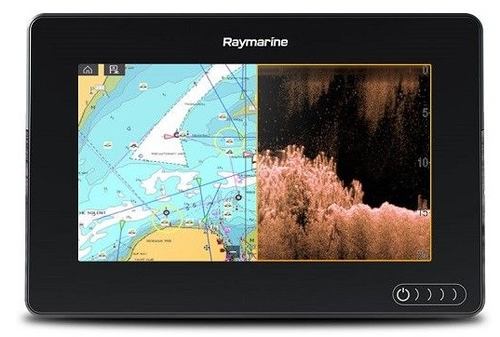

Raymarine Axiom 7 DV 7" MFD CPT-100DVS No Chart - E70364-02

Raymarine E70364-02

The Raymarine Axiom 7 DV is a powerful multifunction navigation system. The Axiom 7 DV features a 7-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. The Raymarine Axiom 7 DV has built-in dual channel CHIRP DownVision sonar for imaging bottom structure and fish. A deluxe CPT-100DVS transom mount CHIRP DownVision transducer is included.

The Raymarine Axiom 7 DV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

The Raymarine Axiom 7 DV E70364-02 includes a CPT-100DVS transom mount transducer, surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.


  • Rugged, All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility.
  • LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
  • Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting- hands down!
  • Deluxe CPT-100 DVS Transom Mount Transducer Included for CHIRP DownVision and fish targeting.
  • Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking.
  • Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
  • Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras.
  • Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges.
  • Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
  • Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
  • Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps.

CPT-100DVS Transom Mount CHIRP DownVision Transducer:
Raymarine CPT-100DVS

  • Installation: Transom Mount
  • Material: Urethane
  • Max Depth (Ft): DV=600 | FF=900
  • Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder
  • Beam Width (L/H)25°/60°
  • Records: Depth / Temperature
  • Approved Hull Material: Fibreglass / Wood / Metal
  • Cable Length (Ft/M):33'/10M
  • Deadrise: 0-90° Transom

Specifications of the Raymarine Axiom 7 DV 7" MFD CPT-100DVS No Chart - E70364-02

Transducer IncludedYes
Cartography BrandNavionics/C-Map/CMOR
Included TransducerA80351
Screen Size7"
