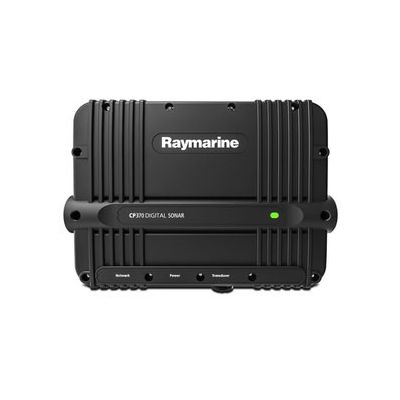

CP370 Digital Sonar Module for offshore and coastal fishing

The Raymarine CP370 Digital Sonar Module for offshore and coastal fishing delivers exceptional clarity, sharper fish targets, automatic operation. Boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing. CP370 sonar parameters in all conditions.

Mfg # E70297. Free US Shipping.

Reference: E70297
In Stock: 2
$999.99

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

The Raymarine CP370 Digital Sonar Module for offshore and coastal fishing delivers exceptional clarity, sharper fish targets and automatic operation using Raymarine’s next-generation ClearPulse digital sonar processing. The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing. ClearPulse signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

Smarter target intensity controls reveal bait and game fish with exceptional clarity. Enhanced digital filtering reveals fish targets through the entire water column. New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.

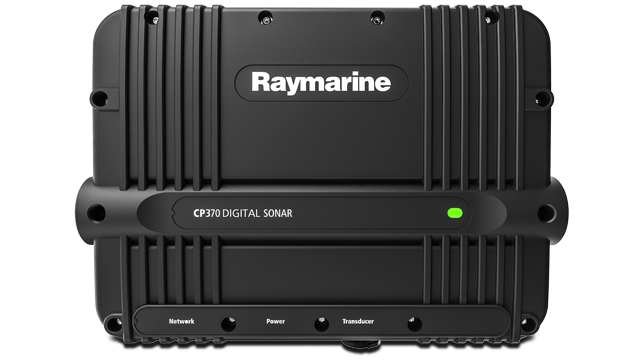

Raymarine CP370 Digital Sonar Module


Features:

- Compatible Displays: aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen

- Transmit Power: 600 or 1000W (depending on transducer)
- Frequency: 50/200kHz
- Maximum Depth: 5000'
- Width: 11 13/16"
- Height: 7 7/8
- Depth: 3 5/16"
- Transducer: Sold separately
- Voltage: 12/24V DC
- Power Consumption: 30.6W (Maximum)
- Data Interface: RayNet (SeaTalkhs)
- Waterproof Rating: IPX6
- Warranty: Three years (with product registration)

Raymarine CP370 Transducers

Depth & Temperature Transducers

NOTE: 600W transducers are applicable for the Americas only. CE compliant CP370 units require a 1kW transducer

Depth Transducers

  CP370 - P79 Transducer | Raymarine CP370 - P319 Transducer | Raymarine CP370 - B117 Transducer | Raymarine CP370 - M260 Transducer | Raymarine CP370 - R199 Transducer | Raymarine
  DEPTH TRANSDUCERS
Model: P79 P319 B117 M260 R199
Part Number: E66008 E66013 E66014 A66089 E66076
Mounting: In-hull Through-hull In-hull
Max Power: 600W 1000W (1kW)
Compatible Hull Material: Fibreglass Fibreglass & Metal Wood & Fibreglass Fibreglass Fibreglass
Frequency: 50/200kHz
Records: Depth only
Notes:

P79

Easily adjusts to any deadrise angle up to 22°

Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer.

Can be removed in seconds for servicing or storage.

Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy.

Simplifies in-hull installation.

M260 & R199

The M260 and R199 can "shoot through the hull", and delivers outstanding performance with all the advantages of an in-hull design – no hole in the boat or cavitation to the propeller.

The M260 and R199 will read clearly at high speeds, as flow turbulence noise isn’t an issue. The M260 and R199 packs an 88mm (3.5") ceramic at 200kHz, and the M260 has seven dedicated elements operating at 50kHz. The R199 has fifteen dedicated elements operating at 50kHz.

Depth & Temperature Transducers

  CP370 - B60 12 Transducer | Raymarine CP370 - B60 20 Transducer | Raymarine CP370 -TM258 Transducer | Raymarine CP370 - B260 Transducer | Raymarine CP370 - B258 Transducer | Raymarine
  DEPTH & TEMPERATURE TRANSDUCERS
Model: B60 12° B60 20° TM258 B260 B258
Part Number: E66086 E66085 E66084 E66079 E66082
Mounting: Through-hull Transom Mount Through-hull
Max Power: 600W 1000W (1kW)
Compatible Hull Material: Fibreglass & Wood Fibreglass, Metal & Wood Fibreglass & Wood
Frequency: 50/200kHz
Records: Depth & Temperature
Notes:

B60 12°

12 Degree Tilt - Fits vessels with hull deadrise of 8 to 15 degrees.

B60 20°

20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees.

B260 Broadband

Beam angles: 200kHz 6º, 50kHz 19º

The B260 Broadband offers improved 200Khz performance by reducing transducer "ringing"


  CP370 - SS270 Transducer | Raymarine CP370 - B164-0 Transducer | Raymarine CP370 - B164-12 Transducer | Raymarine CP370 - B164-20 Transducer | Raymarine CP370 - R99 Transducer | Raymarine
  DEPTH & TEMPERATURE TRANSDUCERS
Model: SS270 B164-0 B164-12 B164-20 R99
Part Number: A102121 A102137 A102112 A102113 E66075
Mounting: Through-hull Flush / Low Profile External Mount
Max Power: 1000W (1kW)
Compatible Hull Material: Fibreglass, Metal & Wood Fibreglass & Wood Fibreglass, Metal & Wood
Frequency: 50/200kHz
Records: Depth & Temperature
Notes:

B164-0

500W RMS (depending on connecteted SONAR).

0 Degree Tilt - Fits vessels with hull deadrise up to 8 degrees.

B164-12

12 Degree Tilt - Fits vessels with hull deadrise of 8 to 15 degrees.

B164-20

20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees.

R99

Max Power: 1kW RMS (depending on connected SONAR)


Speed & Temperature Transducers

  CP370 - ST69 Transducer | Raymarine Fishfinders CP370 - P120 Transducer | Raymarine Fishfinders CP370 - B120 Transducer | Raymarine Fishfinders
  SPEED & TEMPERATURE TRANSDUCERS
Model: ST69 ST800 / P120 ST800 / B120
Part Number: E66019 E66071 E66072
Mounting: Transom Mount Through-hull
Max Power: 600W
Compatible Hull Material: Fibreglass, Metal & Wood Metal & Fibreglass Fibreglass & Wood
Frequency: 50/200kHz
Records: Speed & Temperature
Notes:

ST69

Replaceable paddle wheel assembly

Includes E66022 Y-Cable

ST800 / P120

Includes E66022 Y-Cable

ST800 / B120

Includes E66022 Y-Cable

Depth, Speed & Temperature Transducers

  CP370 - P66 Transducer | Raymarine Fishfinders CP370 - B774V Transducer | Raymarine Fishfinders CP370 - B774VL Transducer | Raymarine Fishfinders
  DEPTH, SPEED & TEMPERATURE TRANSDUCERS
Model: P66 B744V B744VL
Part Number: E66054 A66091 A66092
Mounting: Transom Mount Through-hull
Max Power: 600W
Compatible Hull Material: Fibreglass, Metal & Wood Fibreglass & Wood
Frequency: 50/200kHz
Records: Depth, Speed & Temperature
Notes:

P66

Replaceable paddle wheel assembly

B744V

Self-sealing removable paddle wheel insert

Comes with a high speed fairing block

B744VL

Self-sealing removable paddle wheel insert

Comes with a high speed fairing block


Warranty On Raymarine CP370 Digital Sonar Module for offshore and coastal fishing *2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
