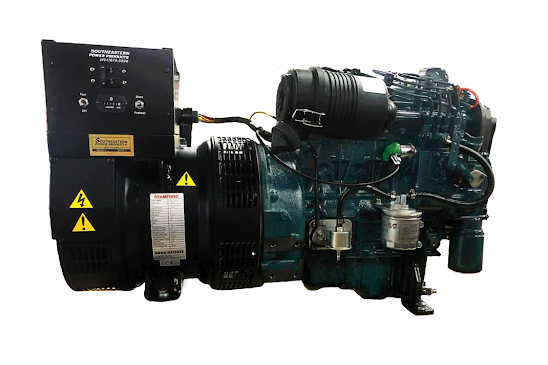

KK4-12.5 Keel Cooled Diesel Generator - 12.5 kW (60 Hz)

The KK4-12.5 KW generator by Southeastern Power Products is a pinnacle of technical excellence and reliability in power generation. Featuring a robust Kubota V1505-E3BG engine with four cylinders and 20.2 horsepower, it delivers a steady power output of 12,500 watts at 120/240 volts in single-phase configuration. Compact design measuring 35.0" x 24.0" x 29.0" and weighing 600 lbs, it offers ease of transportation and installation.

Reference: KK4-12.5kW120/240
Regular Price: $9,614.00
CPlus Price: $9,229.44
What is Citimarine Plus Membership?
Click here for details
Please select Output Voltage

Freight Shipping on This Item*
Freight Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

KK4-12.5 Keel Cooled Diesel Generator - 12.5 kW (60 Hz)

KK4-12.5 Keel Cooled Diesel Generator - 12.5 kW (60 Hz)
The KK4-12.5 KW generator by Southeastern Power Products is a pinnacle of technical excellence and reliability in power generation. Featuring a robust Kubota V1505-E3BG engine with four cylinders and 20.2 horsepower, it delivers a steady power output of 12,500 watts at 120/240 volts in single-phase configuration. Equipped with automatic voltage regulation (AVR) and low oil shutdown, it ensures stable and safe power supply, protecting connected devices and equipment. With a compact design measuring 35.0" x 24.0" x 29.0" and weighing 600 lbs, it offers ease of transportation and installation. The KK4-12.5 KW generator is suitable for a wide range of applications, including residential backup power, construction sites, and industrial operations, providing a reliable and efficient power generation solution for various needs.

Standard Features

  • 12V DC Start / Charging
  • Automatic engine shutdown for low oil & high coolant temperature
  • Fuel filter
  • Fuel transfer pump
  • Air intake silencer / Cleaner
  • Four point isolation motor mounts
  • Heavy duty stell mounting frame
  • Single bearing generator
  • Brushless excitor
  • Start / Stop / Preheat / Hourmeter (mounted on machine)

Specifications of KK4-12.5 KW

MODEL KK4-12.5 KW
ENGINE KUBOTA V1505-E3BG
CYLINDER 4
CUBIC INCH 91.41
BORE & STROKE 3.07 x 3.09
H.P. @ 1800 RPM 20.2
ASPIRATION NATURAL
COOLING SYSTEM KEEL COOLED / HOT MANIFOLD
EXHAUST 2.0" DRY EXHAUST FLANGE
FUEL INLET 5/16
FUEL RETURN 3/16
DIMENSIONS L 35.0 x W 24.0 x H 29.0
WEIGHT 600LBS
MODEL STAMFORD/NEWAGE
OUTPUT VOLTS 120 / 240 / SINGLE PHASE
OUTPUT AMPS 104 / 52
OUTPUT WATTS 12,500

Optional Equipment

  • Remote start / Stop panel W / 20ft extension harness
  • Dc gauge panel with Start / Stop / 20ft extension harness
  • Three phase electrical end
  • Circuit breaker
  • Electric fuel pump
  • Wet exhaust manifold (mounted on engine)
