FX-1 Control Board
(3) Customer reviews
The FX-1 Control Board is Micro-Air's long-standing cabin control standard for both self-contained & split DX systems and for CW air handlers. It supports the FX-1, FX-Maxx, and EasyTouch Control Displays.
Part Number: ASY-370
Reference: ASY-370-X09
Available Online: 5
Ft. Lauderdale: 3
Miami: 2
Regular Price: $276.58
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

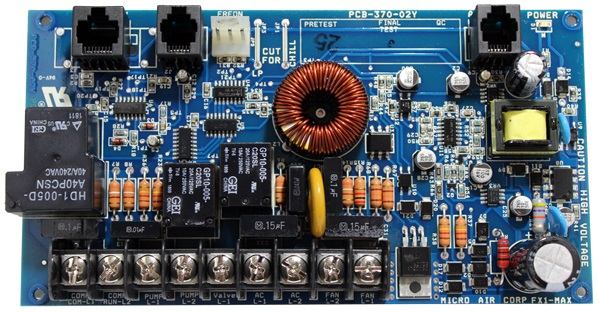

Micro-Air FX-1 Control Board
The FX-1 Control Board is Micro-Air's long-standing cabin control standard for both self-contained & split DX systems and for CW air handlers. It supports the FX-1, FX-Maxx, and EasyTouch Control Displays.
Control Board Features and Options
- Integrated Universal 115-240VAC/50-60Hz Power Supply
- 2HP Compressor Output
- Separately-controlled 1/2HP Pump Output
- Triac Fan speed control 8-pin RJ-45 Display Interface. Legacy SDL interface also available.
- High/8-pin RJ-45 Display Interface. Legacy SDL interface also available.
- High/Low Pressure Switch Inputs
- Water & Air Temp Sensor Inputs
Benefits of the FX-1 Control Board
- 120-240VAC compatible.
- Variable speed fan control.
- Monitors cooling water temperate to prevent potential compressor damage.
- Direct expansion and air handler compatible by simply cutting a jumper.
- Electric heat or Reverse cycle capable.
Compatibility
| Control Displays FX-1: ASY-375-X22 & ASY-375-X21 FX-Maxx: ASY-385-X09 & ASY-385-X01 FX-Maxx Designer: ASY-385-X02 EasyTouch (8-Pin): ASY-389-X02 & X02-WIFI |
Display Cables 8-Conductor: SUB-031- (Length in ft) |
Sensors Epoxy - Water/Air: SUB-056- (Length in ft) Glass - Water: SUB-052- (Length in ft) Air Temp: SUB-032- (Length in ft) |
Reviews
No customer reviews for the moment.
(3) Customer reviews
100% of customers recommend this product
Rate it
Quality
Fx1
2026-06-11 14:24:54
Fit perfect exact to old board.
FX1 control unit
2026-03-05 20:45:44
Excellent product. Very easy to replace. I was unable to obtain this item in the UK or Europe. So I have purchased a second as a Spare. As my system has Four sub units. The Service was Excellent. I can’t recommend this Company enough. Well done!
Mr
2024-09-19 14:36:02
Still in it's box
