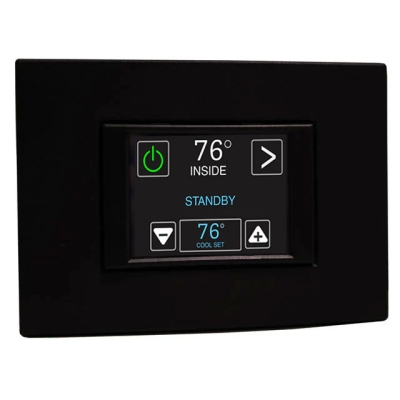

EasyTouch Ultra Marine Display / Cabin Control (Micro Air EasyTouch OEM)

Micro-Air EasyTouch Ultra Display with WiFi Remote Monitoring

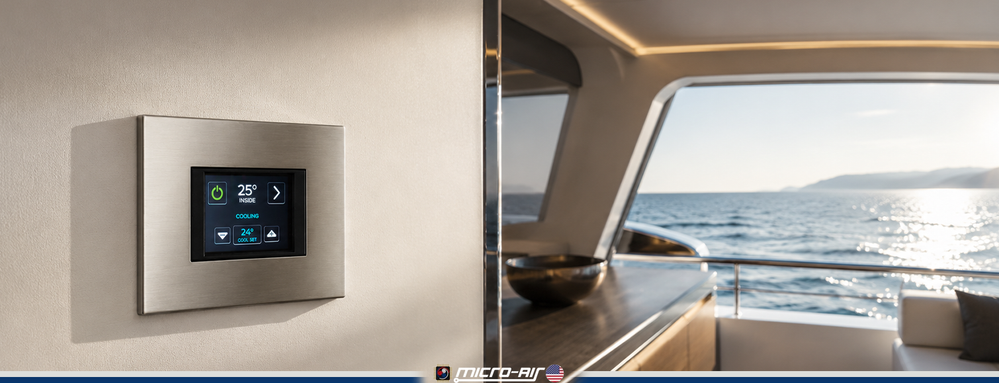

Upgrade your marine HVAC system with the Micro-Air EasyTouch Ultra Display, a modern touchscreen control display that gives users convenient local and remote visibility of system operation. When connected through WiFi, the display works with the Micro-Air Connect companion app, allowing key HVAC values to be monitored remotely from a phone or mobile device.

This display is ideal for users who want better insight into their system’s performance without needing to be physically in front of the control panel. Through the app, users can view available sensor readings, output status, switch conditions, and fault information, making it easier to confirm operation and monitor system health.

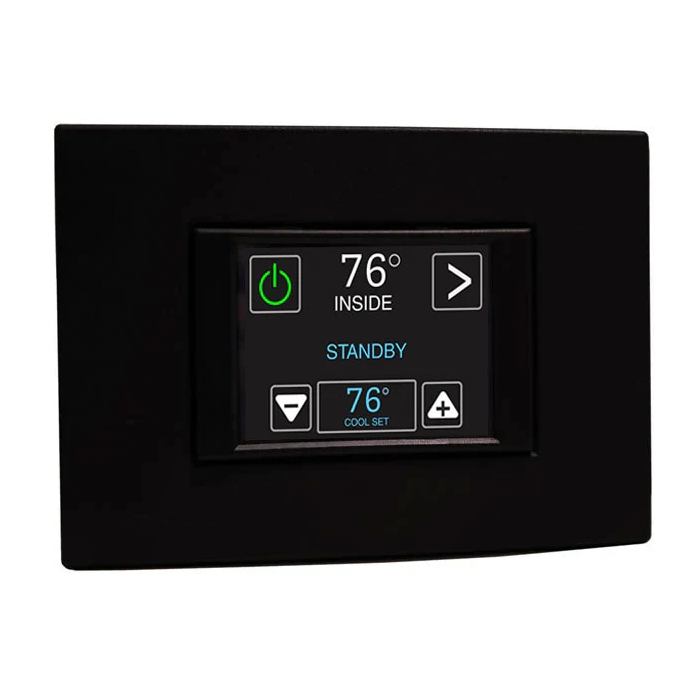

Featuring a bright 2.4-inch touchscreen display, the EasyTouch Ultra offers a clean, user-friendly interface for adjusting temperature, operating modes, fan settings, and system configurations with ease.

Whether dockside or offshore, the EasyTouch Ultra provides reliable climate management with modern connectivity and easy installation.

 Remotely Viewable System Values

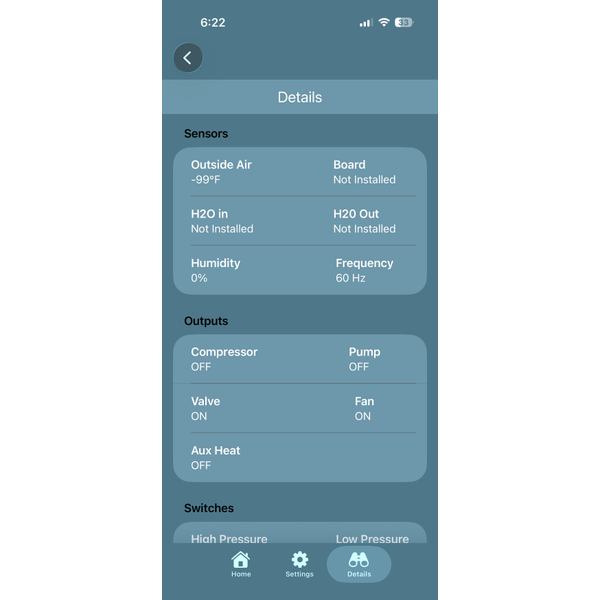

Sensor Readings

• Outside Air
• Board status
• H2O In
• H2O Out
• Humidity
• Frequency

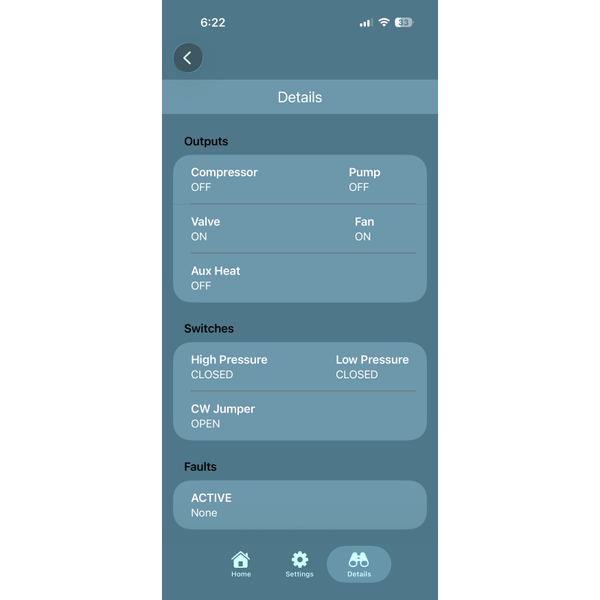

Output Status

• Compressor
• Pump
• Valve
• Fan
• Aux Heat

Switch Status

• High Pressure
• Low Pressure
• CW Jumper

Fault Status

• Active faults

Key Features

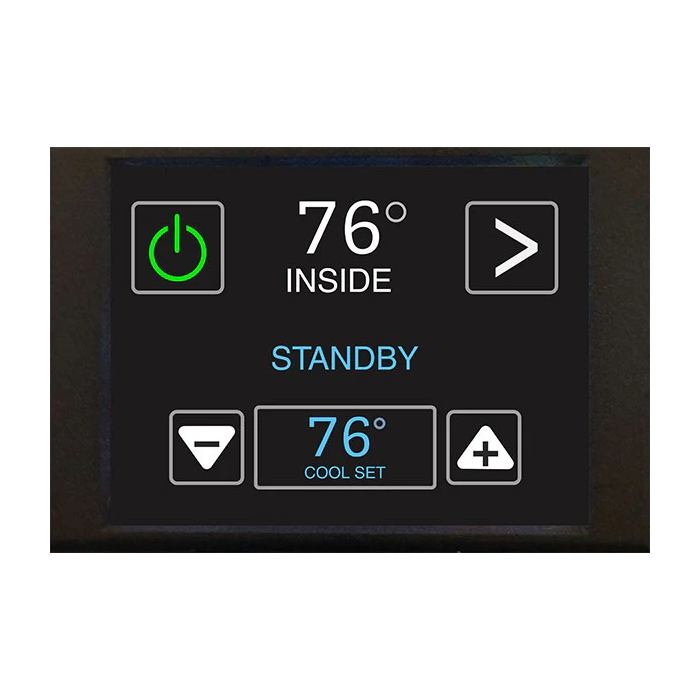

• 2.4-inch full-color touchscreen display
• WiFi and Bluetooth connectivity
• Remote access via Micro-Air Connect App
• Compatible with self-contained / Split-gas (DX) and chilled water systems (CW)
• Surface-mount snap-in installation
• Built-in temperature sensor
• Firmware updates via WiFi
• Standard RJ45 marine display cable connection

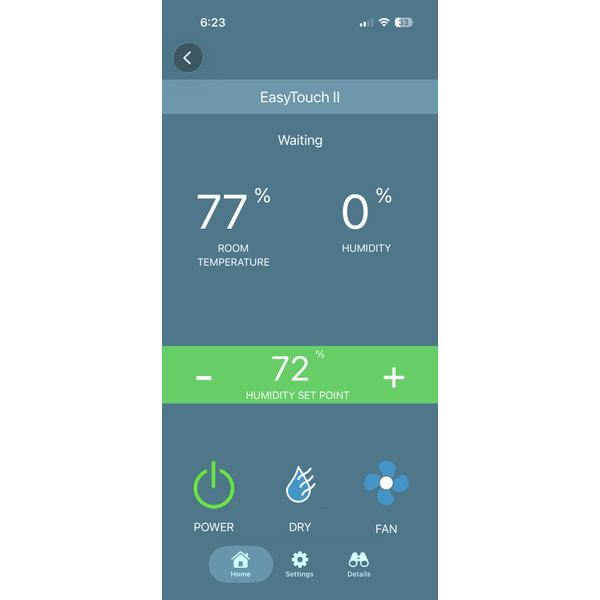

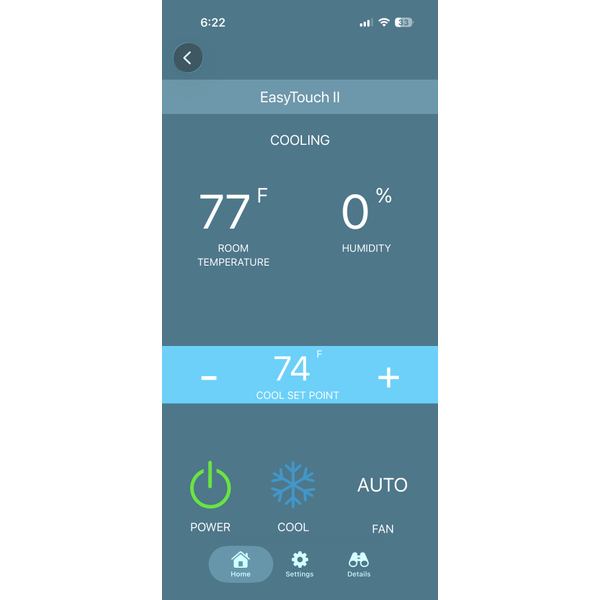

Mobile App

Compatibility

Supported Systems

Compatible with:

• CTM / Dometic U-board systems ( 40001C )
• Passport IO displays
• Micro-Air FX-1 control boards
• Micro-Air FX-2 control boards

Important Compatibility Notes

• Supports Passport IO displays configured for U/PPIO
• Does NOT support earlier Passport I or Passport II systems
• Passport IO serial numbers typically begin with 372
• U-board systems manufactured from approximately 2016 to present include the DGLC board
• FX-1 and FX-2 control boards typically have serial numbers beginning with 360 or 370

Benefits

Modern Connectivity
Control and monitor your marine HVAC system from your smartphone using Bluetooth or cloud-based WiFi.

Simple Installation
Snap-in surface-mount design makes installation quick and straightforward.

Reliable Comfort Control
Accurate onboard temperature sensing ensures dependable climate management.

Smart Features

• Local Bluetooth control
• Cloud-based remote monitoring and adjustments
• No complicated network configuration required
• Supports tempered water air handlers and DX systems
• Wireless firmware updates keep the system current

Installation Features

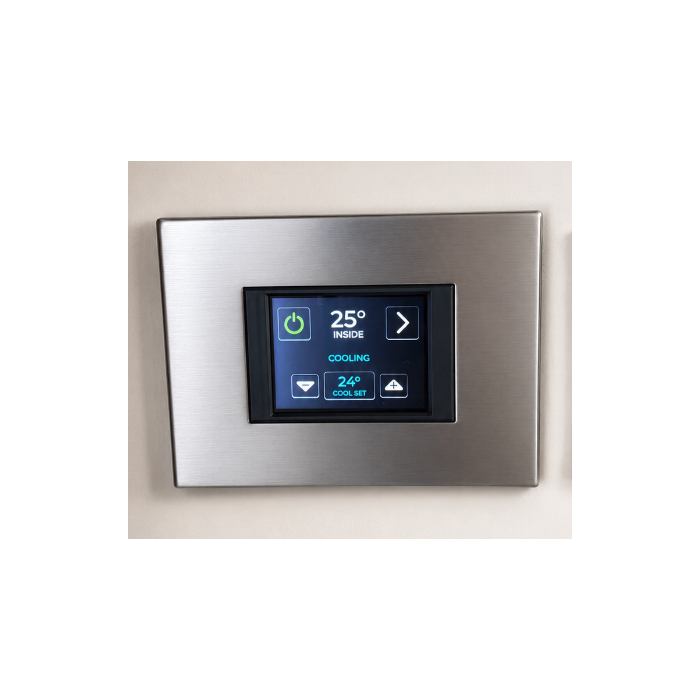

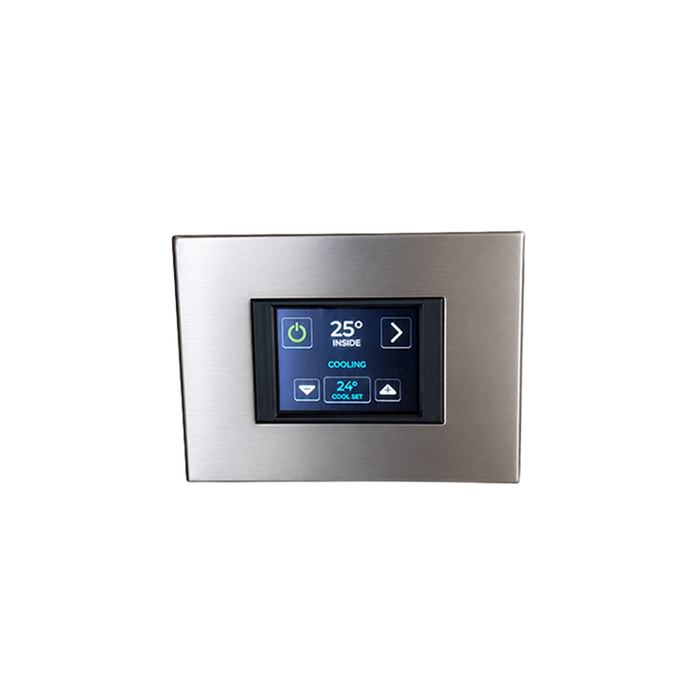

• Compatible with Vimar™ EIKON™ and EIKON EVO™ bezels and boxes
• Standard RJ45 display cable connection
• Surface-mount snap-in installation design

Ideal For

• Marine HVAC upgrades
• Yacht and boat climate control systems
• Retrofit applications
• Smart marine automation systems

Applications

• Self-contained marine air conditioning systems
• Split-Gas marine HVAC systems
• Air handler climate control

Notes

• Verify board compatibility before purchase
• Not compatible with Passport I or Passport II systems
• Mobile app available for iOS and Android devices
