(25 mm X 40 mm X 100 mm) - 870254100
Johnson Cutless Naval Brass Sleeve Bearing. Duramax Marine is the world's major supplier of marine bearings. Metric measurements. Made in the USA. MFG#: 870254100.
Shaft Diameter (mm): 25
Outside Diameter (mm): 40
Length (mm): 100
Metal Thickness (mm): 2.54
Gross Weight (lb.): 0.8
Gross Weight (kg.): 0.4

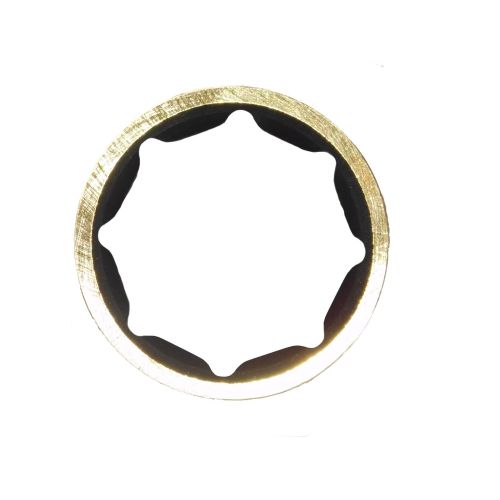

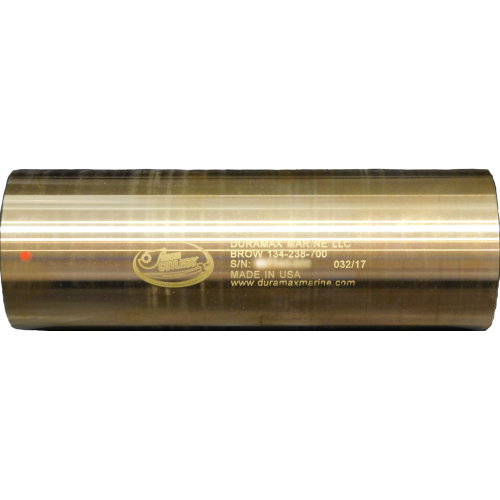

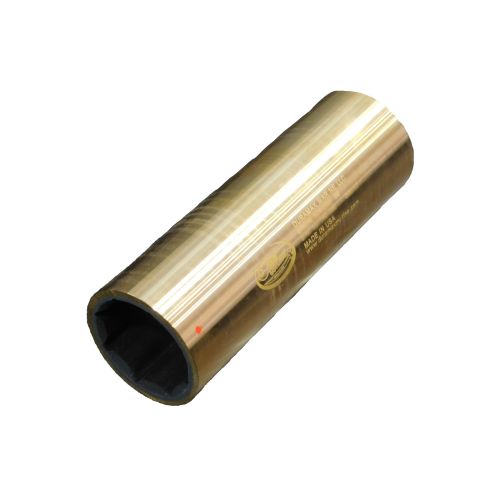

25 mm X 40 mm X 100 mm Johnson Cutless Naval Brass Sleeve Bearing - 870254100
Johnson Cutless Naval Brass Sleeve Bearings adapt perfectly to both strut and stern tube mounts, and are often used as rudder-stock and pintle bushings. Bearing diameters are precision fitted to the designated shaft size with the correct clearance for efficient water lubrication.
Specially formulated oil and chemical resistant nitrile rubber is securely bonded to the shell. These bearings are usually installed by light press-fitting and locked in place with cone-pointed set screws.
Designed for Unmatched Performance and Long Life
Dimensions
Shaft Diameter (mm) | Outside Diameter (mm) | Length (mm) | Metal Thickness (mm) | Weight LBS | Weight KG |
25 | 40 | 100 | 2.54 | 0.8 | 0.4 |
