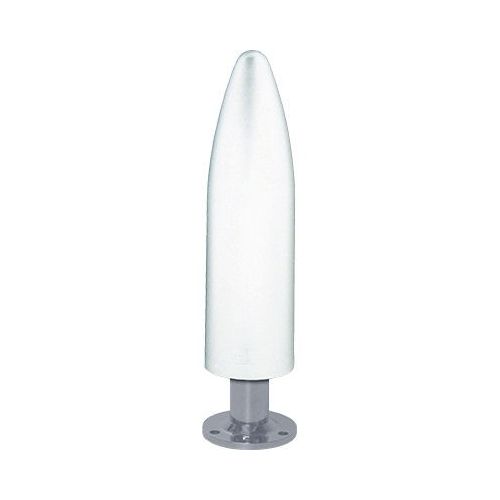

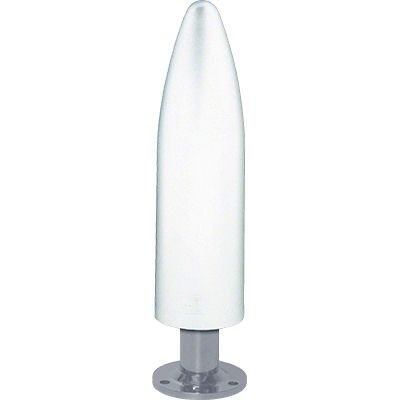

Digital Bullet 1685-PW Wide Band Cell Antenna w/Mount (White)
The Digital Antenna 1685-PW Wide-band Omni-directional Cellular Antenna 600-3000 Mhz, 9dBi, Deck Mount covers 600- 3000 MHz and provides excellent performance from LTE to WiMax in a compact design. This new patent pending 4G antenna solution is manufactured to be rugged and dependable.
Part Number: 1685-PW
Reference: 1685-PW
$299.95
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Digital Bullet 1685-PW Wide Band Cell Antenna (White)
Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.
9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.
For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.
Features
- Maximum power for 4G, 5G, WiFi signals
- 9dBi omni-directional gain
- Rugged UV stable polyurethane finish
- Foam filled to withstand extreme vibrations
- 316 stainless steel base
- Includes Deck Mount
- Weatherproof N female connector
- 5-year warranty
Applications:
700, 800, 850, 900, 1500, 1700, 1800, 1900, 2100, 2500 and 2600 MHz frequency bands; 4G, 3G, AWS, LTE, CLR, DCS, IMT, ISM, PCS, WCDMA, WCS, WiFi, WiMax, Cellular
Specifications:
Frequencies: 600-3000 MHz
Weight: 15 oz
Radiation pattern: Omni-directional
Use: Indoor or outdoor
Gain: 9dBi
Connector: N-type female
PIM: -155dBc
Mount: Stainless steel deck mount
Max power: 50w
Impedance: 50 ohm
Polarization: Vertical
Elements: Copper
Win rating: >110 mph
Exterior finish: UV stable white
Dimensions: 8.875" L x 2.375" OD (225 x 60 mm)
What's in the Box:
-Antenna
-Stainless steel deck mount
