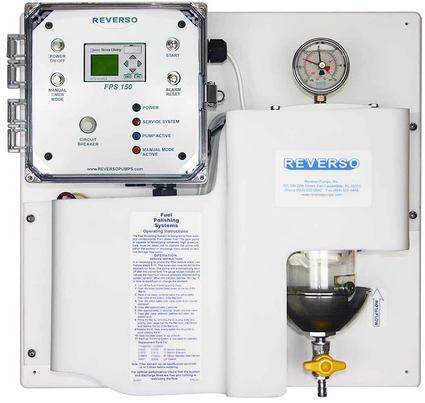

Reverso FPS 150 Fuel Polishing System - 12V - 150 GPH

Reverso FPS 150 Fuel Polishing System - 12V - 150 GPH



Fuel quality is the most important factor in ensuring diesel engine reliability and performance. Water and particulates in diesel fuel can result in poor performance, damaged components or unexpected engine failure. A Reverso Fuel Polishing System is the most efficient way to completely remove free water and particulates to help ensure diesel fuel quality for various tank sizes, in marine and industrial applications with an installed or portable system.

For an initial cleaning, we recommend you turn the fuel 3 times. Once in maintenance mode, you can perform this cleaning once a week.

Recommended Run Cycle = (Volume of the Tank x 3) divided by Flow Rate.

Features:

• Recommended for 300-500 gallons of diesel fuel (can vary depending on piping installation)
• Eliminates sludge and water buildup in the tank
• 99.9% Water separation (Certified TUV report using SAE J1839)
• 99% Particulate removal
• Available in 12 and 24 volts
• Equipped with digital timer to program a weekly schedule
• Shutdown and alarms for clogged filters (high vacuum)
• Equipped with metal heat deflector for marine applications

Specifications:

• Inlet: 1/2” #8 JIC Male
• Outlet: 1/2” #8 JIC Male
• Volt: 12V
• Circuit Breaker: 10A@12V
• Flow Rate: 150 GPH (567.8 LPH)
• Self Priming: 5 ft (1.5 m) (System Primed)
• Max Lift: 10 ft (3.05 m)
• Pump Body: Brass
• Gears: Bronze
• Shaft: Stainless Steel
• Seal: Fluoroelastomer lip seal
• Motor: DC Permanent Magnet

Dimensions:

• A: 19" (482.6 mm)
• B: 17" (431.8 mm)
• C: 6.11" (155.2 mm)
• Weight: 25 lbs (11.34 kg)

Spare Parts:

• Filter Element for SWK-2000/10 and FPS-150
• Seal Kit
• Lid Gasket
• Bowl Gasket
• Compound Vacuum Gauge
