> Marine Generators>See Kohler Marine Generators>11EKOZD - 11kW Generator, Diesel Fueled, 60Hz, 120V, Heat Exchanged, 1- OR 3- Phase

11EKOZD - 11kW Generator, Diesel Fueled, 60Hz, 120V, Heat Exchanged, 1- OR 3- Phase

11EKOZD - 11kW Generator, Diesel Fueled, 60Hz, 120V, Heat Exchanged, 1- OR 3- Phase

By buying this product you can collect up to Your cart will total 1391 points that will be converted into a of $139.10 towards your next purchase! Must be to collect points.

11EKOZD - 11kW Generator, Diesel Fueled, 60Hz, 120V, Heat Exchanged, 1- OR 3- Phase

Customer ratings and reviews

Rate / write a comment

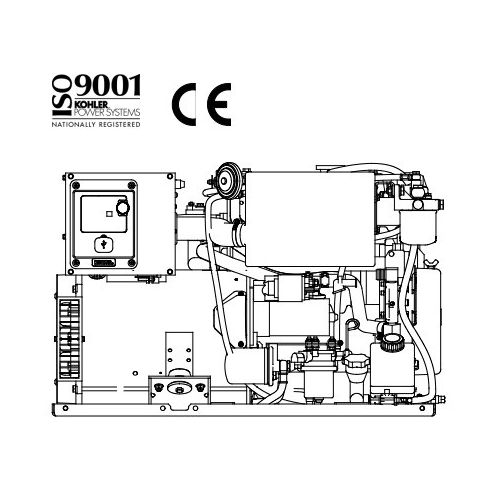

KOHLER 11EKOZD - 11kW Marine Generator, 60 Hz, 1 Phase, 120V, 12VDC, Heat Exchanged - Diesel fueled, 4 cylinder, 4 cycle. Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards, closed cooling system, heat exchanger, oil drain valve. Kohler

Part number: 11EKOZD

**Contact Us For Pricing On Our Marine Generators! 1-800-766-5256, sales@citimarine.com or chat with us below!

Financing Available with Affirm

More info

Features of the KOHLER 11EKOZD - 11kW Marine Generator

Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
  • Closed cooling system
  • Heat exchanger
  • Oil drain valve
  • Remote start 12-pin connector
  • Voltage regulation of ±1.0%
  • Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
  • Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
  • Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.

Specifications

Hertz60
Voltage120/240V
Amps91.7/45.8
Phase1
Engine Type4 cycle, naturally aspirated
Cylinders4
Combustion SystemIndirect injection
Rated rpm1800 at 60Hz / 1500 at 50Hz
Battery Voltage12 voltage at 60Hz and 50Hz
Minimum recommended battery size650 CCA @ 0_F
Fuel Consumption at 100%4.5 Lph (1.2 GPH)
Fuel Consumption at 75% 3.4 Lph (0.9 GPH)
Fuel Consumption at 50%2.3 Lph (0.6 GPH)
Fuel Consumption at 25%1.5 Lph (0.4 GPH)
Generator with sound shield
Width:528 mm (20.79 in.)
Height:559 mm (22.01 in.)
Length:960 mm (37.80 in.)
Weight, wet:279 kg (616 lbs)
Generator without sound shield
Width:448 mm (17.65 in.)
Height:536 mm (21.12 in.)
Length:922 mm (36.32 in.)
Weight, dry:235 kg (517 lbs)
Weight, wet:241 kg (532 lbs)



Kohler 11kw Marine Generator
