9EKOZD - Kohler 9kW Marine Generator, Diesel Fueled, 60Hz, 120V, 1-Phase, Heat Exchanged
KOHLER 9EKOZD - Kohler 9kW Marine Generator, 60 Hz, 1 Phase, 120V, 12VDC, Heat Exchanged - Diesel fueled, 3 cylinder, 4 cycle. Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards, closed cooling system, heat exchanger, oil drain valve. Kohler
Part number: 9EKOZD
**Contact Us For Pricing On Our Marine Generators! 1-800-766-5256, sales@citimarine.com or chat with us below!
Reference: 9EKOZD

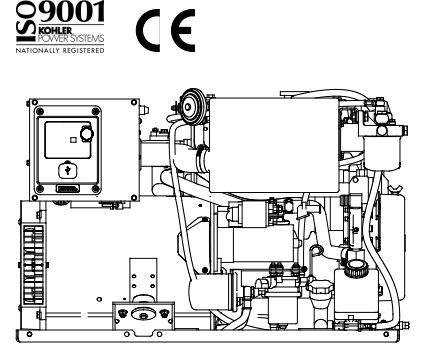

Kohler 9kW Marine Generator - 9EKOZD
Certified by the Environmental Protection Agency (EPA) to conform to Tier III marine auxiliary standards.
- Closed cooling system
- Heat exchanger
- Oil drain valve
- Remote start 12-pin connector
- Voltage regulation of ±1.0%
- Rotor and stator are coated with a high-bond epoxy varnish. Varnish helps prevent corrosion in high-humidity areas.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for class H insulation.
- Direct connected to the engine, the generator has sealed precision ball bearings with a precision-machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
Specifications
| Hertz | 60 |
| Voltage | 120 |
| Amps | 70.8 |
| Phase | 1 |
| Engine Type | 4 cycle |
| Cylinders | 3 |
| Combustion System | Indirect injection |
| Rated rpm | 1800 |
| Battery Voltage | 12 volt |
| Minimum recommended battery size | 650 CCA |
| Fuel Consumption at 100% | 3.4 (90) |
| Fuel Consumption at 75% | 2.6 (0.7) |
| Fuel Consumption at 50% | 1.9 (0.5) |
| Fuel Consumption at 25% | 1.1 (0.3) |
| Generator with sound shield | |
| Width: | 528 mm (20.79 in.) |
| Height: | 559 mm (22.01 in.) |
| Length: | 780 mm (30.71 in.) |
| Weight, wet: | 222 kg (490 lbs) |
| Generator without sound shield | |
| Width: | 448 mm (17.65 in.) |
| Height: | 536 mm (21.12 in.) |
| Length: | 743 mm (29.26 in.) |
| Weight, dry: | 181 kg (398 lbs) |
| Weight, wet: | 185 kg (407 lbs) |
