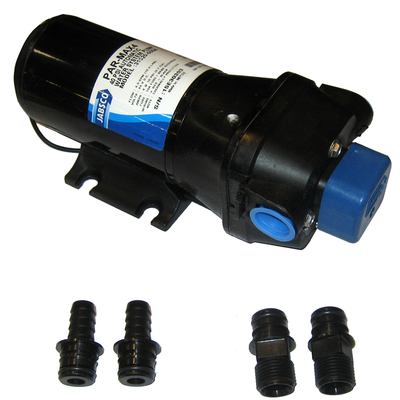

Jabsco PAR-Max 4 Water Pressure System Pump - 24v

Jabsco PAR-Max 4 Water Pressure System Pump - 24v

WaterPressure System Pump

The PAR-MAX Automatic Water System Pump is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump instantly begins operation to provide a smooth constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.

Features

• Self-Priming to 10 ft. (3 m)
• Runs Dry Without Damage
• Smooth Flow
• Four Piston, Diaphragm Pump
• Powerful Motor with Thermal Overload Protection
• Snap-in Ports
• Pressure Switch with Rubber Boot
• Meets USCG Regulation 183.410 and EN ISO 8846 MARINE (Ignition Protection)
• Meets EN 50081-1 Electro-magnetic Compatibility

Specifications of the Jabsco PAR-Max 4 Water Pressure System Pump - 24v - 31620-0094

• Pump Body – Glass Filled Polypropylene
• Pump Design – Multi-Chamber Diaphragm
• Suction Lift – Self Priming to 10 ft. (3 m)
• Ports – 1/2" (13 mm) Hose & 1/2" (13 mm) Threaded (QEST Type)
• Motor – Permanent Magnet
• GPM-LPM - 4.3/16.3
• Volts - 24v
• Nominal Cut-In - 20 psi
• Nominal Cut-Out - 40 psi
• Amp Draw @ 10 psi - 3 amp
• Fuse/Breaker - 7 Amp
• Shipping Weight – 6.0 lb (2.8 kg) 31620-Series
