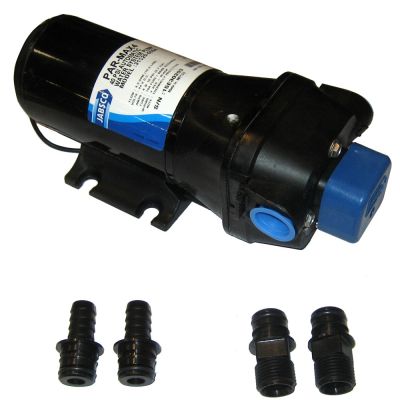

Jabsco PAR-Max 4 Water Pressure System Pump - 24v
Jabsco PAR-Max 4 Water Pressure System Pump - 24v is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump instantly begins operation to provide a smooth constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation. MFG: 31620-0094.
PART DISCONTINUED
REPLACEMENT PART #: Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 40 PSI (SEE HERE)
Reference: 31620-0094
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Jabsco PAR-Max 4 Water Pressure System Pump - 24v
WaterPressure System Pump
The PAR-MAX Automatic Water System Pump is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump instantly begins operation to provide a smooth constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.
Features
- Self-Priming to 10 ft. (3 m)
- Runs Dry Without Damage
- Smooth Flow
- Four Piston, Diaphragm Pump
- Powerful Motor with Thermal Overload Protection
- Snap-in Ports
- Pressure Switch with Rubber Boot
- Meets USCG Regulation 183.410 and EN ISO 8846 MARINE (Ignition Protection)
- Meets EN 50081-1 Electro-magnetic Compatibility
Specifications of the Jabsco PAR-Max 4 Water Pressure System Pump - 24v - 31620-0094
- Pump Body – Glass Filled Polypropylene
- Pump Design – Multi-Chamber Diaphragm
- Suction Lift – Self Priming to 10 ft. (3 m)
- Ports – 1/2" (13 mm) Hose & 1/2" (13 mm) Threaded (QEST Type)
- Motor – Permanent Magnet
- GPM-LPM - 4.3/16.3
- Volts - 24v
- Nominal Cut-In - 20 psi
- Nominal Cut-Out - 40 psi
- Amp Draw @ 10 psi - 3 amp
- Fuse/Breaker - 7 Amp
- Shipping Weight – 6.0 lb (2.8 kg) 31620-Series
| Gallons Per Minute | 4.3 GPM |
| Max PSI | 20-40 |
| Volts | 24v |
