X-Caliber Saltwater Pressure Pump - 12-24 VDC

HEADHUNTER X-Caliber Pressure Pump - 12 - 24 VDC. Quiet, reliable, blasting water pressure. Combining advanced DC motor and control technology with a proven self-priming centrifugal pump (# XR-124). Max Pressure: 67 PSI - Max Flow: 10 GPM - Inlet and Discharge fitting: 3/4” FPT - Weight: 16 lbs. Freshwater and Saltwater models are the same.

Part Number: XRS-124

Headhunter Pumps

Reference: XRS-124
In Stock: 6
$2,397.99

Free US Shipping on This Item!
Global Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
HEADHUNTER X-Caliber Saltwater Pressure Pump - 12-24 VDC / XRS-124

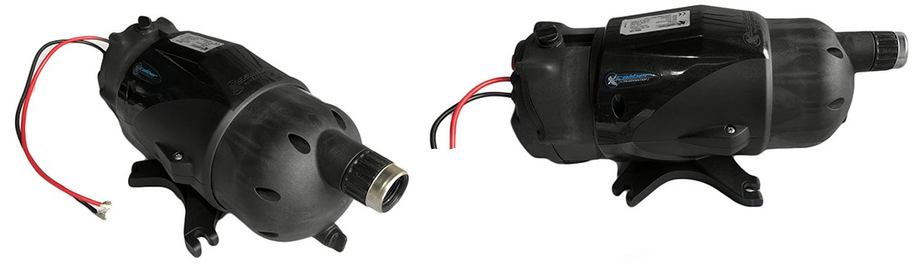

xcaliber marine pump

The X-Caliber is a high-performance water pressure system designed to operate on 12 or 24VDC and is comprised
of a water-cooled motor, integrated flow and pressure control, and a quiet multi-stage self-priming impeller system. It uses advanced technology to provide superior performance while maintaining constant input power. Three input power settings and cut in pressures can be programmed into the pump via the integrated control panel. Power settings and alarm conditions are displayed via four colored LED’s on the control panel. The XR-124 is for freshwater applications. The XRS-124 is for salt or freshwater applications.

Advanced Features:

  • Adjustable cut in pressure
  • Adjustable power setting
  • Operates on 12 or 24VDC
  • Over voltage protection
  • Under voltage protection
  • Over current protection
  • Anti-flooding protection
  • Dry run protection
  • Variable Speed
  • Rotating bracket

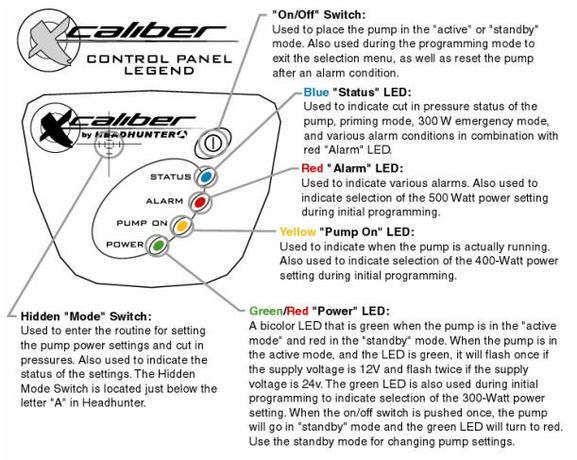

X-Caliber Control Panel

Program power and pressure settings via the integrated control panel. Four colored LED’s display current settings and alarm conditions.

Headhunter xcaliber control panel

Technical Specifications

  • Maximum Pressure*: 67 psi (4.5 bar)
  • Maximum System Pressure**: 110 psi (7.5 bar)
  • Maximum Inlet Pressure: 36 psi (2.5 Bar)
  • Maximum Flow Rate: 10 GPM (38 LPM)
  • Maximum Suction Lift: 12ft (4m)
  • Minimum ambient temperature: 32°F (0°C)
  • Maximum ambient temperature: 104°F (40°C)
  • Maximum Fluid temperature: 95oF (35o C)
  • Inlet and discharge fitting: 3/4” inch female NPT (3/4” Gas male adapter included)
  • Sound Pressure Level: <70 dB(A)
  • Dry Weight: 14 lbs (6.3 kg)

*Maximum pressure pump is capable of generating
** Maximum pressure pump is capable of withstanding

Electrical Specifications

Power Setting Low - 300W Medium - 400W High - 500W
Max Current (Amps) @ 12VDC 25 Amps 34 Amps 42 Amps
Max Current (Amps) @ 24VDC 12.5 Amps  17 Amps  21 Amps
Enclosure IP55
Insulation Class B
Supply Cables  Tinned Stranded Copper - Type BC #10 AWG (6 ISOmm2)

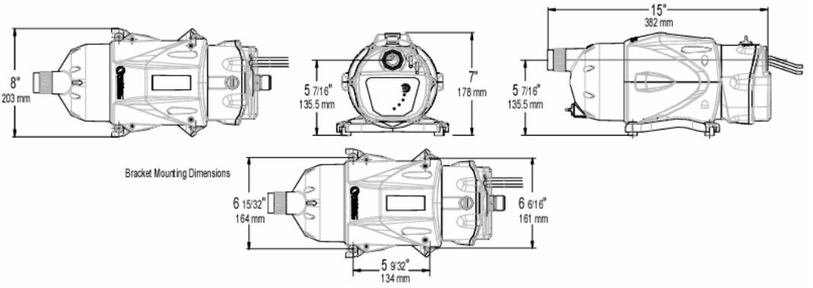

Dimensional Drawing

Headhunter Excalibur Pump

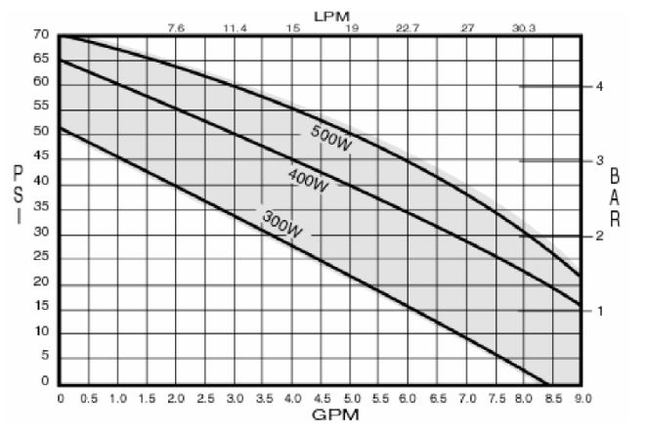

Performance Curve

Performance Curve

What's In The Box

- 1 XR-124 or XRS-124 X-Caliber 12/24VDC Water Pump
- 1 X-Caliber Installation and Operation Manual
- 4 Rubber Vibration Isolation Mounts

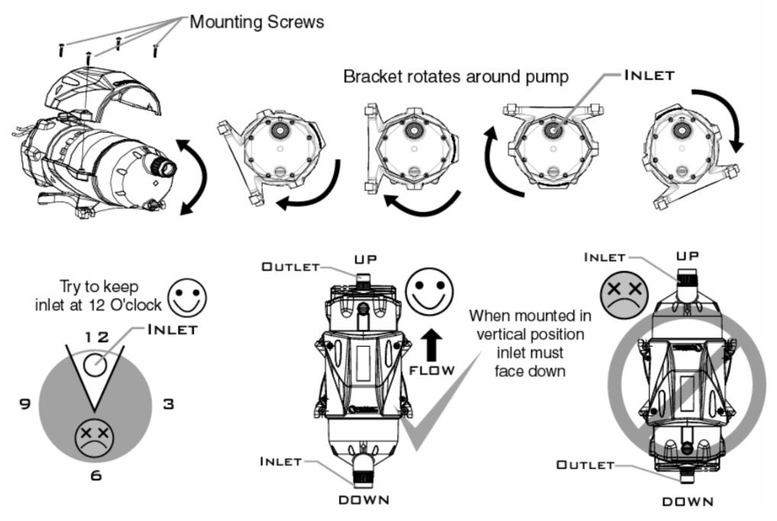

Mounting the X-Caliber

Install the four rubber vibration isolation mounts provided into the four mounting holes of the foot of the X-Caliber bracket. Secure the pump to the foundation by installing the appropriate fasteners through the rubber vibration isolation mounts. Mount pump to foundation so that control panel is visible and accessible.

xcaliber mounting instructions


Headhunter xcaliber
