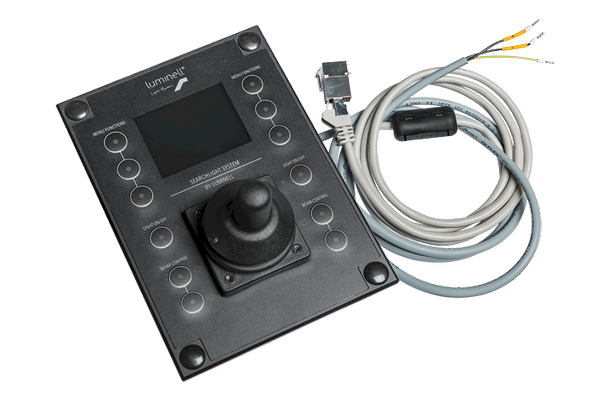

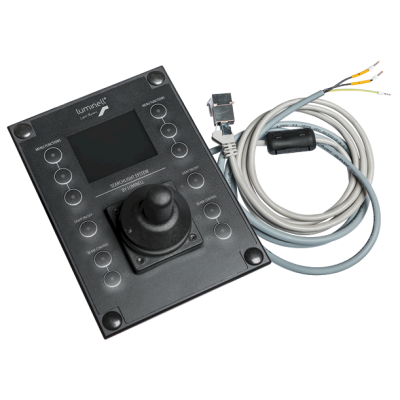

Luminell OP3GS Marine Searchlight Operator Panel IP56
The Luminell OP3GS Operator Panel IP56 (LNCLS-90104) is a professional remote control panel designed for Luminell SL2, CL2, and CL3 searchlights. Featuring Ethernet network connectivity, IP56 protection, 24V DC operation, and multi-master functionality, it allows seamless control of one or multiple searchlights in demanding marine environments.
GTIN: 7072720004555
Reference: LNCLS-90104
In Stock: 2
$744.06
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Luminell OP3GS Operator Panel IP56 for SL2, CL2 & CL3 Marine Searchlights with Ethernet Network Control
The Luminell OP3GS Operator Panel (LNCLS-90104) is a professional-grade remote control solution engineered for complete control of Luminell SL2, CL2, and CL3 marine searchlights. Designed for commercial vessels, offshore platforms, patrol boats, and other demanding marine applications, this compact operator panel provides intuitive searchlight operation while delivering the reliability required for continuous marine service.
Connected through an Ethernet network, the OP3GS allows operators to manage one or multiple compatible searchlights from any connected control station. Its multi-master architecture enables every operator panel on the network to function as a master controller, allowing seamless control of any connected searchlight at any time. This flexible configuration is ideal for vessels requiring multiple control locations, such as the bridge, wing stations, or remote operating positions.
The panel is supplied with 0.9-meter pigtail cables for 24V DC power and Ethernet RJ45 connectivity, including an RJ45 socket for convenient system expansion. When installing multiple operator panels or searchlights, an accessory Ethernet switch can be added to expand the network as required.
Built specifically for harsh marine environments, the OP3GS features a durable IP56-rated enclosure that protects against dust and powerful water spray. Certified by DNV and CCS, the panel is approved for professional marine installations and operates reliably in temperatures ranging from -20°C to +55°C.
Key Features
| Feature | Specification |
| Product | Luminell OP3GS Operator Panel |
| Manufacturer Part Number | LNCLS-90104 |
| Compatible Searchlights | SL2, CL2 & CL3 (Basic functions also supported on SL1) |
| Control Type | Remote Ethernet Operator Panel |
| Network | Ethernet RJ45 |
| Power Supply | 10–30 VDC |
| Power Consumption | 0.2 W |
| Protection Rating | IP56 |
| Operating Temperature | -20°C to +55°C |
| Certifications | DNV & CCS Marine Approved |
| Cable Length | 0.9 m |
| Dimensions | 116 × 158 × 110 mm |
| Net Weight | 0.828 kg |
| Color | Black (Matte Finish) |
What's in the Box
- Luminell OP3GS Marine Searchlight Operator Panel (LNCLS-90104)
- 0.9 m power pigtail cable (24 VDC)
- 0.9 m Ethernet RJ45 pigtail cable with RJ45 extension socket
- Product documentation
