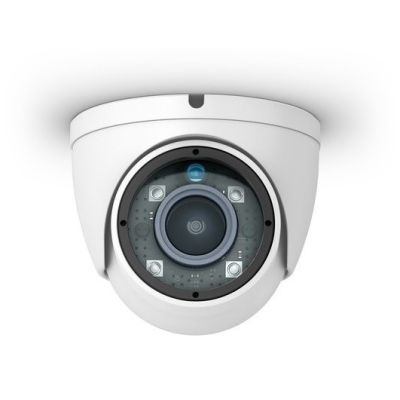

GC12 Marine NTSC Camera
Garmin GC12 Marine NTSC Camera is small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. Use it in multiple areas above or below decks, and view on 1 chartplotter or across multiple networked compatible chartplotters. Up to 10 meters. Dimensions: 50.5 mm (diameter) x 44.3 mm (H).
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Garmin GC12 Marine Camera
GC 12 features a convenient reverse-image setting to help you back out of tight locations such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement.
Features
Provides an extra set of eyes aboard your vessel to monitor areas above or below decks Analog camera delivers excellent quality images, even in low light; perfect for engine rooms Capable of broadcasting images on 1 chartplotter or across multiple networked compatible chartplotters Reverse-image setting on compatible chartplotters helps when backing out of tight locations such as a crowded marina Rotate images on compatible chartplotters 90/180/270 degrees so you can mount in any orientation
See more of what’s happening on or around your boat with the GC 12 marine camera. With GC 12 on your vessel, you’ll be able to monitor areas inside and outside while you're on the water or while you’re docked.
Specifications
Image sensor device: 1/3" Sony 960H Double Scan Super HAD CCD II Sync system: Internal Low light vision range: Up to 10 meters Viewing angle: D H V(°) = 95.0°x69.0°x52.0° Video output: 1.0Vp-p Composite 75 ohm composite S/N ratio: More than 52dB (AGC Off) Operating temperature: From -10? to +50? Power consumption @ 12VDC: 80mA (IR Off) 170mA (IR On) Dimensions: 50.5 mm (diameter) x 44.3 mm (H) Compass safe distance: 6 1/8 in. (155 mm) Water rating: IPX7 Resolution: PAL: 976(H) x 582(V) Scanning system: PAL: 625 Lines 2:1 Interlaced
