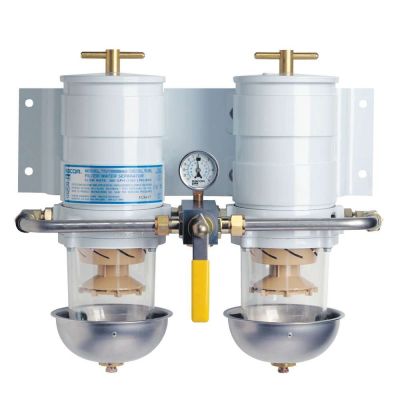

Racor 75900MAX Fuel Filter

Racor 75900MAX Fuel Filter - Marine Duplex 900 Turbine Series with Clear Plastic Bowl and Steel Shield, 7/8-14 UNF-2A, SAE J514, 37° flare Male ports. 2 Housings. Available for 2,10,30 Microns 2040 Series Filters (Require 2 filters)


Part Number:
75900MAX2 (2 Microns)
75900MAX10 (10 Microns)
75900MAX30 (30 Microns)

Filter Size: Cartridge 2040 (2,10, or 30 Microns)

Free US Shipping Continenal US Only.jpg

Reference: 75900MAX2
Please Select Filter Size (Microns)

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Racor 75900MAX Fuel Filter - 2,10, or 30 Microns - 2040 Filter Series
Racor 75900MAX Fuel Filter

The Racor 75900MAX Fuel Filter Water Separator Turbine Series is the most trusted fuel filter water separator on the market. The UL-approved assembly features a three-stage filtration system that effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in marine applications where reliability is critical.

Racor marine fuel filter water separators are available in a wide range of configurations to meet the unique requirements of customer’s engines. All models utilize Racor’s proprietary Aquabloc® filtration elements. Aquabloc® is a unique engineered media that incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the clear collection bowl. Aquabloc® elements are available in three different ratings, including: 2,10, and 30 Microns


• Removes water that enters the system through condensation in the fuel tank. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.
• Removes hard particles present in air that are introduced during fueling, such as sand and silica.
• Removes soft contaminant particles from overheated and degraded diesel fuel, which coat filters with black asphaltene-like substance, leading to power loss and engine shutdown.
• Prevents costly injector damage and increases operational life of downstream filters.
• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
• With Racor 75 and 791000 Turbines, a simple turn of a valve puts a clean filter back on-line. Servicing of the clogged filter can then be performed with the engine running.
• Available in a wide range of configurations to meet the unique requirements of customers’ engines, including marine (UL-approved) versions.
• Aquabloc® engineered media elements with 98% efficiency at 4, 10 or 30 micron
• Various flow rates available: 60 gph (227 lpm) with a single 500FG Series, up to 540 gph (2044) with the 77 and 791000 series triple-manifold units
• Corrosion-resistant construction
• Self-venting drain valve or plug (on metal bowls)
• Clear contaminant collection bowl

How It Works

75900MAX Fuel Filter

Technical Specifications of Racor 75900MAX Fuel Filter

Model 75900MAX
Microns 2,10, or 30
Flow Rate 180 GPH
Number of Housings 2
Clean Pressure Drop (bar) 0.12
Clean Pressure Drop (psi) 1.7
Number of Ports 2
Replacement Element 2040 Series (Requires 2)
Application Marine Fuel Filtration
Maximum Continuos Pressure 15 psi / 1.03 bar
Element Removal Clearance  5 in / 12.7 cm


Racor 75900MAX Fuel Filter

Racor 75900MAX
