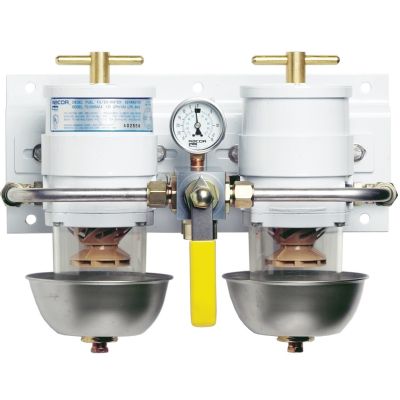

Racor 75500MAX Fuel Filter

Racor 75500MAX - Marine Duplex 500 Turbine Series with Clear Plastic Bowl and Steel Shield, 3/4-16 UNF-2B SAE 1926 O-Ring Boss Female ports. 2 Housings. Available for 2,10,30 Microns 2010 Series Filters (Require 2 filters)

NOT IN STOCK, CONTACT US FOR ETA

Part Number:
75500MAX2 (2 Microns)
75500MAX10 (10 Microns)
75500MAX30 (30 Microns)

Filter Size: Cartridge 2010 (2,10, or 30 Microns)

Free US Shipping

Reference: 75500MAX2
In Stock: 2
$1,149.99
Please Select Filter Size (Microns)

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Racor 75500MAX Fuel Filter - 2,10, or 30 Microns - 2010 Filter Series

Racor 75500MAX Fuel Filter



The legendary Turbine filters are a fixture in heavy industry whenever an application demands the combination of heavy duty, high capacity water separation/fuel filtration along with ease of use, quick maintenance, and precision manufacturing.

The Racor 75500MAX (2, 10 or 30 micron, 2010 Series) Turbine Series Fuel Filter features advanced 3 stage water separation and fuel filtration combined in a compact size. It has double the flow rate of a 500MA in a convenient parallel plumbing set-up with a selector valve. Simply remove the cap, pull out the old filter with the provided handle and slide a new element in.

Benefits

• Removes water that enters the system through condensation in the fuel tank. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.
• Removes hard particles present in air that are introduced during fueling, such as sand and silica.
• Removes soft contaminant particles from overheated and degraded diesel fuel, which coat filters with black asphaltene-like substance, leading to power loss and engine shutdown.
• Prevents costly injector damage and increases operational life of downstream filters.
• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
• With Racor 75 and 791000 Turbines, a simple turn of a valve puts a clean filter back on-line. Servicing of the clogged filter can then be performed with the engine running.
• Available in a wide range of configurations to meet the unique requirements of customers’ engines, including marine (UL-approved) versions.
Features:
• Aquabloc® engineered media elements with 98% efficiency at 2, 10 or 30 micron
• Various flow rates available: 60 gph (227 lpm) with a single 500FG Series, up to 540 gph (2044) with the 77 and 791000 series triple-manifold units
• Corrosion-resistant construction
• Self-venting drain valve or plug (on metal bowls)
• Clear contaminant collection bowl

How It Works

75500MAX Fuel Filter

Technical Specifications - Racor 75500MAX

Model 75500MAX
Microns 2,10, or 30
GPH 60/120
Number of Housings 2
Clean Pressure Drop (bar) 0.05
Clean Pressure Drop (psi) 0.7
Number of Ports 2
Replacement Element 2010 Series (Requires 2)
Application Marine Fuel Filtration
Maximum Continuos Pressure 15 psi / 1.03 bar
Element Removal Clearance  4 in / 10.2 cm

Dimensions

Parker racor 75500 MAX Dimensions
