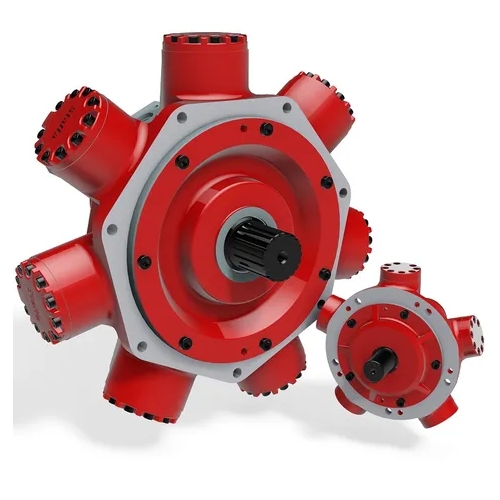

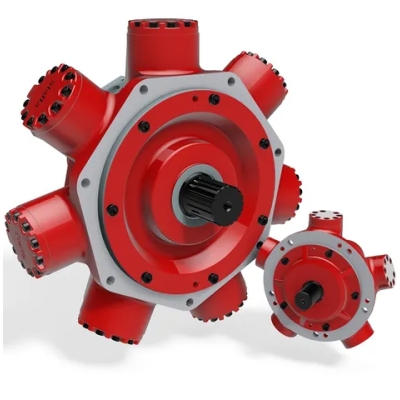

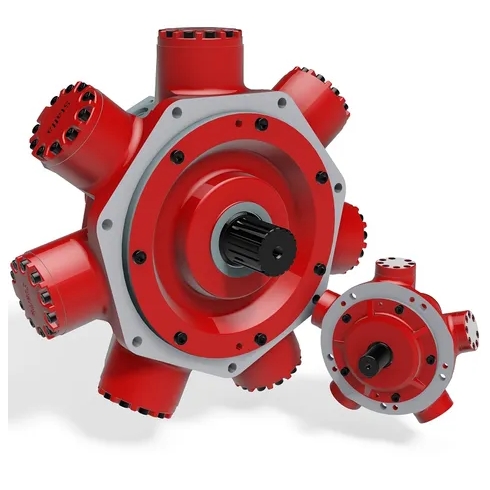

Hydraulic Motor HMB045/S/D/50 Staffa

fixed displacement Staffa HMB radial piston motors have a rugged, reliable and proven design that incorporates high efficiency with good breakout torque and smooth running capability. Single Displacement Hydraulic Motors

Reference: HMB045/S/D/50

Hydraulic Motor HMB045/S/D/50 Staffa

Staffa – The world leader in Low Speed, High Torque (LSHT) motor technology.

188 to 8,000cc displacements in 11 frame sizes.
250 bar continuous pressure rating.
300 bar intermittent pressure.
High volumetric and mechanical efficiency.
Unique hydrostatic balancing provides minimum wear and extended life.

Motor Specifications

Type	Geometric Displacement (cc/rev)	Average Actual Running Torque (Nm/bar)	Max. Continuous Speed (rpm)	Max. Continuous Output (kW)	Max. Continuous Pressure (bar)	Max. Intermittent Pressure (bar)
HMB010	188	2.79	500	25	207	241
HMB030	442	6.56	450	42	207	241
HMB030 (FM3)	492	7.31	450	52	207	241
HMB045	740	10.95	400	60	250	293
HMB060	983	14.5	300	80	250	293
HMB080	1,344	19.9	300	100	250	293
HMB100	1,639	24.3	250	110	250	293
HMB125 / HMHDB125	2,050	30.66	220	100	250	293
HMB150 / HMHDB150	2,470	36.95	220	115	250	293
HMB150 (FM3)	2,470	36.95	168	115	250	293
HMB200 / HMHDB200	3,087	46.07	175	130	250	293
HMB200 (FM3)	3,087	46.07	135	130	250	293
HMB270 / HMHDB270	4,310	63.79	125	140	250	293
HMB325 / HMHDB325	5,310	79.4	100	140	250	293
HMHDB400	6,800	101	120	190	250	293
HMB500	8,000	114	100	170	190	227
