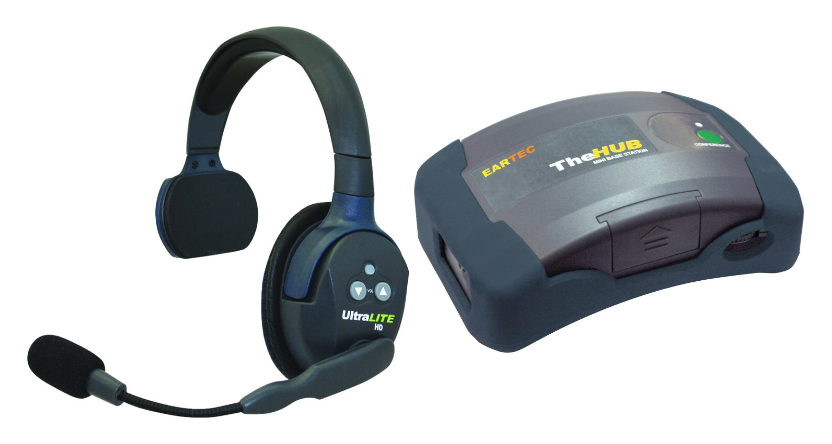

The Hub with UltraLite Serie - Single Headsets

Expanded UltraLITE wireless systems for larger crews / HUB full duplex wireless headset intercom

UltraLITE self-contained headsets provide professional full duplex wireless communication literally right “Out of The Box”. To operate simply turn the headsets “ON” and talk it’s that simple. All electronics, including rechargeable lithium battery, are installed right inside the ear cup.

The HUB is a revolutionary mini base station that expands the capacity of UltraLITE linking up to 8 wireless headsets allowing larger production crews to communicate hands free.

Weighing only 9 oz. the HUB can either be placed strategically “on location” or belt worn. When clipped comfortably to the users waste it moves seamlessly so your crew can remain in constant full duplex voice contact.

Two HUBs can be interlinked doubling the talking pattern to 16. An added benefit is that HUB transceivers include an accessory jack so that with addition of a plug-in headset capacity is expanded to a crew of nine all communicating in full duplex.

Both HUB and UltraLITE utilize the same Lithium Polymer batteries (included), that charge externally and are field replaceable. This allows you to keep spare batteries on hand extending the run time of your system.

The included multi-port charger features positive LED indicators. When the batteries reach full charge the corresponding LED turns from red to green indicating that the battery is ready to go.

If you need to add full duplex wireless to an existing, permanently installed wired system in an auditorium, church, or production studio the HUB with UltraLITE has you covered. The HUB interface is a software controlled module that plugs into a wall jack replacing a wired amplifier and allows up to 8 roaming wireless users to communicate with the wired system in full duplex just as if connected by a floor cable. (see HUB Interface page to learn more).

Since UltraLITE are field programmable you can always modify your system adding components at any time expanding the talking pattern as your needs grow.

Select from the standard HUB w/ UltraLITE packages or contact EARTEC for help designing a customized full duplex system specifically for your production staff.

Key Features of UltraLite Series:

• Full Duplex wireless communication without a base station or beltpack.

• Excellent Performance – Range up to 300 yards (line of sight, terrain dependent).

• DECT Frequency – Digital 1900 MHz band is interference free.

• Li-Poly Batteries – Provide continuous 6 hr operation and are field replaceable.

• Adjustable Mic Boom – Rotates 270 degrees, worn on left or right.

• Auto Mute – Mute microphone simply by moving the boom to up position.

• Volume Control – Simple Up / Down push button adjustment.

• Water Resistant – Silicone sealed for use outdoors in inclement conditions.

• Deluxe Padding – Headsets fit firmly yet comfortably for an 8 hour work shift.

• Field Programmable – Start small and add to your system as needed.

• Multi-port Charger – Individual battery bays, green LED indicates charge.

• Softside case – Waterproof nylon with padded compartments.

The Hub

The EARTEC HUB Full Duplex Wireless Intercom System provides full duplex wireless communication to larger production staffs that need to stay in constant voice contact while working with their hands. This versatile Mini Base weighs only 9 oz. and can either be placed strategically “on location” or belt worn. When clipped comfortably to the user’s waist this digital repeater moves seamlessly with your group allowing crews to talk simultaneously within a 300-yard range (line of sight, terrain dependent).

Each HUB comes complete with a rechargeable Lithium battery and Multi-Port charger that charges The HUB battery, as well as UltraLITE™ headset batteries in individual bays.  When each battery reaches full charge the corresponding LED turns from red to green indicating that the battery is ready to go.  This feature allows users to have extra batteries on hand in the charger whenever necessary.

Product Specifications

*No FCC License Required

UltraLite Wireless Set-up:

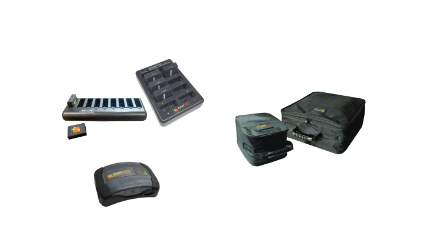

All complete intercoms include:

• UltraLITE Single Ear Wireless Headsets
• Batteries & Multi Charger
• Softside Case
• The Hub Mini Base
