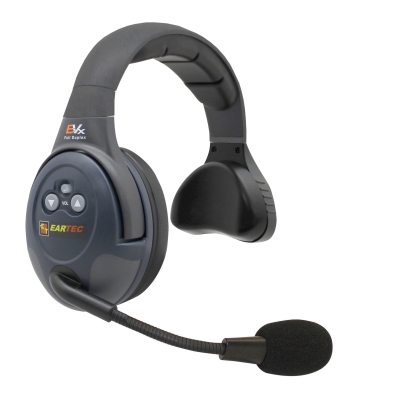

Evade Wireless Intercom Headset – Standard Series - Dual Channel

EVADE Single operate in full duplex mode allowing up to 32 crew to talk simultaneously and hands free just like on a regular telephone. Designed specifically for professional crews the EVADE Single features a deluxe padded speaker that can be worn on left or right side leaving one ear open. With all electronics including a compact radio and rechargeable battery built inside the ear cups the EVADE Single are not only affordable but reliable too.

EVADE wireless owe their name to a digital operating system called Frequency Hopping. The compact digital radio built into the earcup continuously monitors the environment and automatically switches to channels that are clear whenever necessary to easily avoid interference. This smart engineering is a military technique that dodges or “evades” other wireless systems and provides crystal clear communication.

The Conference Module (included with dual channel set-up) provides a staff conference with a single touch of a button.

Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

Eartec EVADE are a new class of Light Industrial wireless team communication systems that provide instantaneous, hands free voice contact. Operating in full duplex mode they allow crews to talk simultaneously and hands free. They feature deluxe padding and a sleek, fully adjustable headband. EVADE have the capacity to link up to nine users within a 1/2 mile range (line of sight, terrain dependent).

EVADE headsets are self-contained with a compact full duplex transceiver built inside the ear cups eliminating wires and belt packs. Each complete intercom includes one “MAIN” headset that relays the digital signals generated by up to eight “Remotes”. The headsets link automatically without a base station.

A digital wireless technology known as Frequency Hopping controls the operation of all EVADE intercoms. These specialty headsets automatically switch to clear channels.

Key Features of Evade Standard Series:

• Excellent performance – Range up to 1/2 mile (line of sight, terrain dependent)

• Radio installed inside earcup, no wires or beltpacks

• Li-Poly Batteries – Provide continuous 8 hr operation and are field replaceable
• Auto Mute Boom – Mute when in UP position

• Volume Control – Simple up / down push button adjustment

• Sealed for use outdoors in inclement conditions

• Light Industrial Design – Wear comfortably for an 8 hour work shift

• Field Programmable – Start small and add to your system as needed
• Dual channel

Conference Module Switch Included

The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode.

*Included with Dual Channel Systems

Product Specifications

*No FCC License Required

Evade Wireless Single Channel Set-up:

All complete intercoms include:

• EVADE Single Ear Wireless Headsets
• Cmod Conference Module
• Batteries & Multi Charger
• Carrying / Storage Case

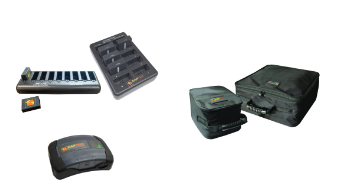

In the Box:

• Batteries / Charger
• Softside Case
• Conference Module
