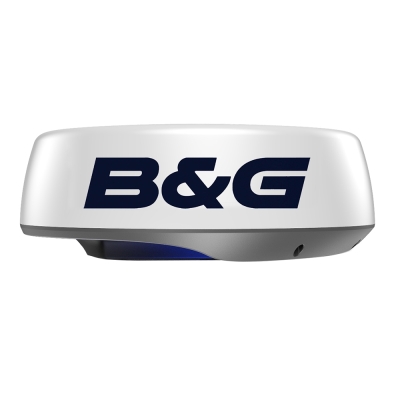

B&G HALO24 24” Radar Dome with Doppler (VelocityTrack) – 48 NM Pulse Compression Radar w/ 20m Cable
B&G HALO24 Doppler radar dome with 20m cable. 48 nm range, Dual Range, 60 RPM close-range sweeps, VelocityTrack, beam sharpening, IPX6, Instant On.
Reference: 000-14538-001
In Stock: 5
$3,299.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
The B&G HALO24 24” Radar Dome with Doppler Technology (20m Cable) delivers high-definition target detection from short range all the way out to 48 nautical miles—ideal for sailboats, fishing boats, and smaller powerboats that demand confident navigation in any conditions. Using solid-state pulse compression and beam sharpening, HALO24 provides excellent target separation with reduced clutter, helping you spot small craft, buoys, land features, and weather cells with clarity.
For superior situational awareness, Dual Range mode lets you monitor near and far ranges at the same time, so you can track distant weather while watching for close-range collision hazards. At close range, HALO24 offers an industry-leading 60 RPM rotation up to 2 nautical miles, completing a full 360° sweep every second for an almost real-time view—an advantage in crowded waterways and poor visibility.
Built-in VelocityTrack™ Doppler technology instantly indicates whether targets are approaching or moving away using simple color coding. HALO24 automatically checks every target on screen without requiring manual selection, improving awareness and reducing collision risk. The low-profile, lightweight dome includes integrated LED lights, and wakes instantly from standby thanks to Instant On™ solid-state technology.
Key Features
-
48 nm range from a compact 24” dome
-
Pulse compression + beam sharpening for improved target definition
-
Dual Range simultaneous near/far viewing
-
Ultra-fast 60 RPM close-range operation up to 2 nm (360° sweep every second)
-
VelocityTrack™ Doppler for collision avoidance
-
Harbour / Offshore / Weather / Bird modes
-
MARPA target tracking (up to 10 targets, 20 in dual range)
-
Instant On™ solid-state radar (no magnetron warm-up)
-
Lightweight, low-profile dome with integrated LED lights
-
Includes 20m radar cable
| B&G HALO24 24" Radar Dome with Doppler (20m Cable) – Specifications | |
|---|---|
| Model | HALO24 |
| Dome Size | 24" (Ø 610 mm) |
| Max Range | 48 nm |
| Radar Type | Solid-state Pulse Compression (No Magnetron) |
| Peak Power Output | 25W |
| Doppler | VelocityTrack™ Doppler |
| Dual Range | Yes |
| Rotation Speed | 20–60 RPM (mode/MFD dependent); 60 RPM up to 2 nm |
| Minimum Range | 6 m (19.7') |
| Range Scale | 100 m (328 ft) to 48 nm (18 range settings) |
| Operating Modes | Harbour, Offshore, Weather, Bird |
| Target Tracking | MARPA up to 10 targets (20 in dual range) |
| Power Input | 9 V to 31.2 V DC (12/24V systems) |
| Minimum Startup Voltage | 10.75 V DC |
| Reverse Polarity Protection | Yes |
| Power Consumption (Operating) | 14.5 to 27W at 13.8 V (with 10m cable) |
| Power Consumption (Standby) | 3.9W (typ.) at 13.8 V DC (170 mA) |
| Environmental Rating | IPX6 |
| Operating Temperature | -25°C to +55°C (-13°F to +130°F) |
| Max Wind Velocity | 51 m/s (100 knots) |
| Dimensions (H) | 225 mm (8.9") |
| Weight (No Cable) | 6.75 kg (14.9 lbs) |
| Transmitter Frequency | X-band 9.4–9.5 GHz |
| Polarization | Horizontal |
| Horizontal Beam Width | 3.9° nominal (-3 dB) |
| Vertical Beam Width | 22° nominal (-3 dB) |
| Protocol | Ethernet 100 Base-T |
| Max Interconnect Cable Length | 30 m (98.5') (use NEP-2 for longer runs) |
| Included Cable Length | 20 m |
| Compliance | CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945:2002 |
