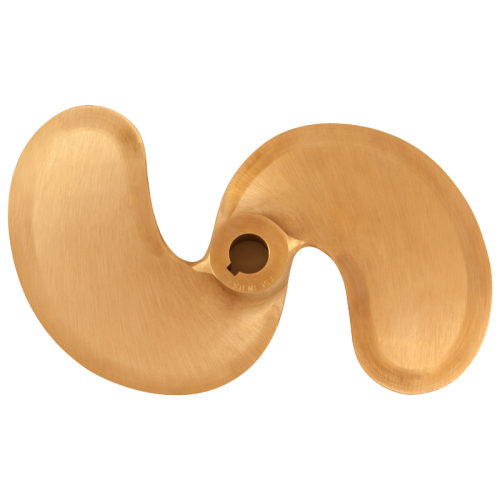

Michigan Weedless Propeller Diameter Range 10"- 30" Propeller
Weedless Propellers feature highly skewed blades for Mud Boats, excelling in shallow, weed-infested waters, water treatment projects, and industrial applications.
Michigan Weedless Propellers
Weedless Propellers are specially designed with durable, highly skewed blades for Mud Boats in shallow weed infested waters. Because of their unique design, Weedless Propellers have also become a preferred choice in many water treatment projects and other industrial applications.
Who Should Buy Weedless Propellers?
Michigan Wheel Weedless propellers are specialized propellers used on mudboats in shallow weed infested waters. Their unique highly skewed blades allow the propellers to run freely without becoming tangled in floating vegetation. Thick blades and heavy duty edges add durability when striking roots and other submerged debris. When you are navigating a swamp and need a propeller that will not fail and leave you stranded, choose a Michigan Weedless.

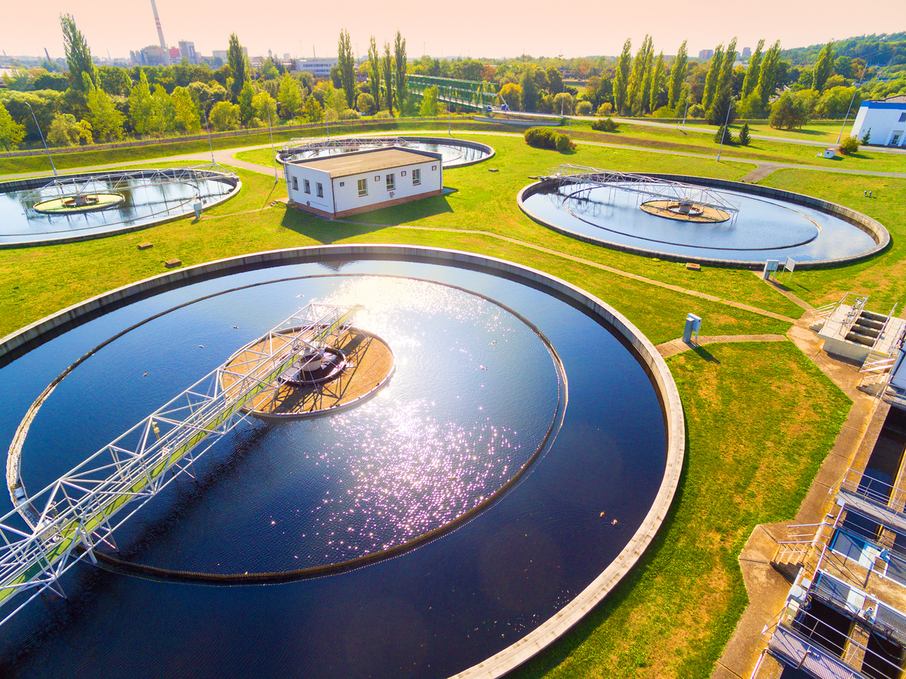

Weedless Propellers in Water Treatment Facilities
Weedless propellers have also become a preferred choice in many water treatment and other industrial applications. Frequently Michigan Wheel weedless propellers are used in projects around the world helping treat water in developing countries. Their unique design minimizes the collection of loose material while they are used to pump untreated water through the plants. Many sizes are available with oversized hubs to accommodate straight bores for connection to pump motor shafts.
Weedless A-C Specifications
| Diameter (Inches) | Diameter (MM) | Available Pitch | Hub Dimensions (Aft End) | Hub Dimensions (Forward End) | Hub Length (Inches) | Maximum Straight Bore (Inches) | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | B.T.F. |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 152 | - | 1 | 1-11/32 | 1-3/8 | 1/2 | 2-5/8 | 6.2 | 1 | .042 |
| 7 | 178 | 4L | 1-1/16 | 1-1/2 | 1-1/2 | 5/8 | 3-1/8 | 8.5 | 1.5 | .042 |
| 8 | 203 | 6L | 1-1/8 | 1-1/2 | 1-1/2 | 5/8 | 3-9/16 | 10.8 | 2 | .042 |
| 9 | 229 | 6L, 7L, 8L | 1-1/4 | 1-11/16 | 1-7/8 | 3/4 | 4-1/8 | 13.7 | 3 | .042 |
| 10 | 254 | 6L, 10L | 1-7/16 | 1-3/4 | 2-1/4 | 3/4 | 4-11/16 | 14.7 | 3.5 | .042 |
Weedless W-C Specifications
| Diameter (Inches) | Diameter (MM) | Available Pitch | Hub Dimensions (Aft End) | Hub Dimensions (Forward End) | Hub Length (Inches) | Maximum Straight Bore (Inches) | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | B.T.F. |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 152 | 4L, 5L | 1 | 1-11/32 | 1-3/8 | 1/2” Straight No Keyway | 2-5/8 | 6.2 | 1 | .042 |
| 7 | 178 | 4L, 5L, 8L, 10L | 1-1/16 | 1-1/2 | 1-1/2 | 1/2” Straight No Keyway | 3-1/8 | 8.5 | 1.5 | .042 |
| 8 | 203 | 4L, 5L | 1-1/8 | 1-1/2 | 1-1/2 | 5/8” Straight No Keyway | 3-9/16 | 10.8 | 2 | .042 |
| 9 | 229 | 5L, 6L | 1-1/4 | 1-11/16 | 1-7/8 | 5/8” or 3/4” Straight & Slot | 4-1/8 | 13.7 | 3 | .042 |
| 10 | 254 | 5L, 9L | 1-7/16 | 1-3/4 | 2-1/4 | 3/4” Taper & Keyway | 4-11/16 | 14.7 | 3.5 | .042 |
Weedless Specifications
| Diameter (Inches) | Diameter (MM) | Available Pitch | Hub Dimensions (Aft End) | Hub Dimensions (Forward End) | Hub Length (Inches) | Max Straight Taper Bore (Inches) | Max Straight Bore (Inches) | Max Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | B.T.F. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 254 | 6R, 8, 10, 12 | 1-7/16 | 1-5/8 | 2-1/4 | 1 | 1 | 6-11/16 | 21 | 5 | .058 |
| 11 | 279 | 8, 10, 12 | 1-7/16 | 1-5/8 | 2-1/4 | 1 | 1 | 7-7/16 | 25 | 6 | .058 |
| 12 | 305 | 10, 12, 14 | 1-9/16 | 1-3/4 | 2-5/8 | 1-1/8 | 1-1/4 | 8 | 30 | 7.5 | .058 |
| 13 | 330 | 8, 10, 12, 14 | 1-9/16 | 1-3/4 | 2-5/8 | 1-1/8 | 1-1/4 | 8-13/16 | 36 | 9 | .058 |
| 14 | 356 | 8, 10, 12L, 14, 16 | 1-3/4 | 2 | 3 | 1-1/8 | 1-1/4 | 9-7/16 | 41 | 12 | .058 |
| 15 | 381 | 8, 10, 12, 13L, 14, 16 | 1-3/4 | 2 | 3 | 1-1/8 | 1-1/4 | 10 | 47 | 14 | .058 |
| 16 | 406 | 8-16 Even | 1-15/16 | 2-3/16 | 3-3/8 | 1-1/4 | 1-3/8 | 10-11/16 | 55 | 16 | .058 |
