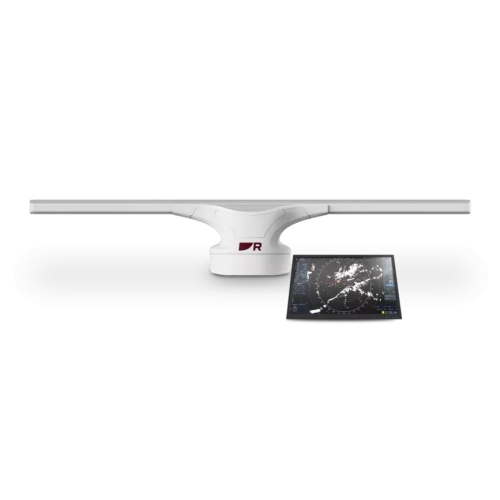

Raymarine Pathfinder 32 w/ 32" Display, 6' Transceiver, 25 m Interconnect Cable and Black Box

Raymarine Pathfinder 32 w/ 32" Display, 6' Transceiver, 25 m Interconnect Cable

DESIGNED WITH OPERABILITY AT THE CORE

Pathfinder is a highly advanced solid-state radar that delivers exceptional clarity and an intuitive user interface. It's driven by a fan-less, six-foot, low-profile open array antenna that provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. Pathfinder's solid-state transmitter delivers performance exceeding a 12kW magnetron, and the system meets and exceeds all IMO performance requirements for target detection.

The Next Evolution in Offshore Situational Awareness

The revolutionary Pathfinder marine radar system is built on Raymarine’s award-winning radar technology and is designed for type-approved CAT 1, CAT 2 and CAT 3 SOLAS vessels. Pathfinder radars deliver trusted radar performance for cargo ships, superyacht, OSV and naval applications. Each system uses Raymarine’s proven solid-state technology and innovation scanner design to deliver exceptional resolution and detection capabilities even in the most challenging maritime conditions.

Pathfinder 32: Advanced Marine Radar for CAT 1 SOLAS Vessels

Designed for type-approved CAT 1 SOLAS vessels over 10,000 gross tons, this high-performance commercial marine radar system is ideal for cargo ships, workboats, megayachts, and naval applications. Built for reliability and precision, it provides exceptional situational awareness in demanding maritime environments.

Key Features:

• Commercial marine radar system for type-approved CAT 1  SOLAS vessels over 10,000 gross tons, including cargo ships, workboats, mega yachts and naval applications
• Features a 32" high resolution monitor, offering wide view angles and reliable performance
• A compact and rugged remotely mounted fan-less black box processor simplifies installation
• Modern user interface allowing access to key functions without distracting from the main radar screen.
• Provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology
• 6' fan-less, solid-state open array antenna with simplified cabling and lightweight design reduces installation time
• Radar performance exceeds a 12kW magnetron radar while surpassing IMO performance requirements for target detection, including the detection of RACON beacons over 5.5 NM
• Subjected to rigorous environmental testing for increased reliability and lower cost of ownership
• Designed for compliance with IMO standards IEC 62288 and IEC 62388.

With next-level radar technology and a user-friendly design, the Pathfinder 32 ensures safer navigation and enhanced situational awareness for professional and leisure vessels alike.

System Includes

• 32" display
• Trackball
• 6' transceiver
• Black Box Processor
• 25 meter interconnect cable data collection unit.

32" Display Specifications

Antenna Specifications

Transceiver Specifications
