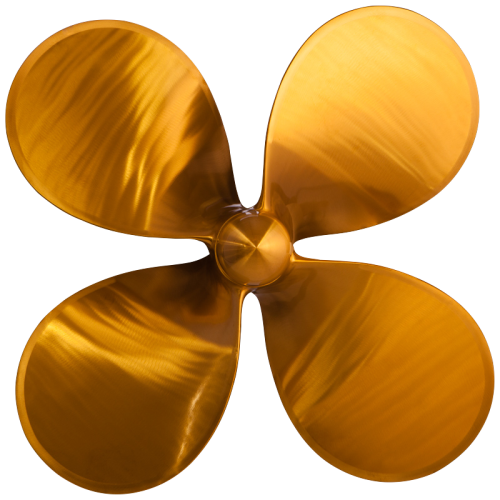

Michigan Work Horse 9"- 96" For Shaft Sizes: 3/4" - 8" Propeller
Las hélices Michigan Wheel Work Horse y Machine Pitch son las hélices para embarcaciones comerciales más conocidas del mundo. Disponibles en modelos de 3, 4 y 5 palas 1 para cubrir una amplia gama de embarcaciones comerciales. Áreas de pala no estándar disponibles bajo pedido.
Hélices Michigan Work Horse
Las hélices Michigan Wheel Work Horse y Machine Pitch son las hélices para embarcaciones comerciales más conocidas del mundo. Disponibles en modelos de 3, 4 y 5 palas 1 para cubrir una amplia gama de embarcaciones comerciales. Áreas de pala no estándar disponibles bajo pedido.
¿Quién debería comprar hélices de la serie Work Horse/Machine Pitch?
El diseño de pala de las hélices Work Horse y Machine Pitch ofrece durabilidad y rendimiento para embarcaciones de trabajo que necesitan maximizar el empuje estático al empujar y remolcar. Los materiales de alta calidad facilitan las reparaciones en su taller de hélices local y ayudan a que su embarcación vuelva al agua más rápido. Los navegantes comerciales confían en las hélices Work Horse y Machine Pitch para cumplir con el trabajo todos los días.

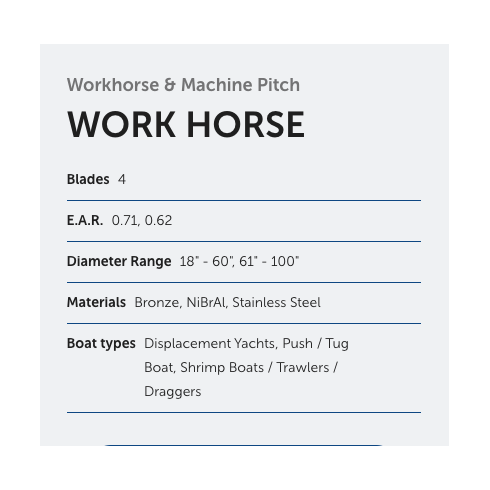

Especificaciones del Work Horse
| Diámetro | Dimensiones del núcleo (pulgadas) | Orificio cónico estándar (pulgadas) | Ancho máximo de pala (pulgadas) | Área expandida por pala (PULG. CUAD.) | Peso neto aprox. (LBS.) |
*WR2 (LBS.-IN2) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pulgadas | MM | Extremo de popa | Extremo de proa | Longitud | Orificio mínimo | Orificio máximo | Orificio piloto | ||||
| 9 | 229 | 1-5/16 | 1-7/16 | 2-1/8 | 3/4 | 3/4 | 3/4 | 3-7/8 | 11.8 | 2.5 | 13 |
| 10 | 254 | 1-7/16 | 1-5/8 | 2-1/8 | 3/4 | 7/8 | 3/4 | 4-5/16 | 14.5 | 3.5 | 21 |
| 11 | 279 | 1-7/16 | 1-5/8 | 2-1/8 | 3/4 | 7/8 | 3/4 | 4-5/8 | 17.6 | 4 | 34 |
| 12 | 305 | 1-9/16 | 1-3/4 | 2-5/8 | 7/8 | 1-1/8 | 7/8 | 5-1/16 | 20.9 | 5 | 50 |
| 13 | 330 | 1-9/16 | 1-3/4 | 2-3/4 | 1 | 1-1/8 | 1 | 4-15/16 | 22.7 | 6 | 65 |
| 14 | 356 | 1-3/4 | 2 | 3 | 1 | 1-1/8 | 1 | 5-5/16 | 26.4 | 8 | 90 |
| 15 | 381 | 1-3/4 | 2 | 3 | 1 | 1-1/8 | 1 | 5-5/8 | 30.3 | 9 | 120 |
| 16 | 406 | 1-15/16 | 2-3/16 | 3-3/8 | 1-1/8 | 1-1/4 | 1-1/8 | 6-15/16 | 34.5 | 11 | 160 |
| 17 | 432 | 2 | 2-5/16 | 3-3/8 | 1-1/8 | 1-3/8 | 1-1/8 | 6-7/16 | 38.9 | 12 | 210 |
| 18 | 457 | 2 | 2-5/16 | 3-3/8 | 1-1/8 | 1-3/8 | 1-1/8 | 6-7/8 | 43.6 | 14 | 280 |
| 19 | 483 | 2-1/8 | 2-7/16 | 3-3/4 | 1-1/4 | 1-3/8 | 1-1/4 | 7-1/4 | 48.6 | 16 | 350 |
| 20 | 508 | 2-1/8 | 2-7/16 | 3-3/4 | 1-1/4 | 1-3/8 | 1-1/4 | 7-1/2 | 53.8 | 18 | 470 |
| 21 | 533 | 2-7/16 | 2-13/16 | 4-1/8 | 1-3/8 | 1-1/2 | 1-3/8 | 8 | 59.4 | 22 | 590 |
| 22 | 559 | 2-7/16 | 2-13/16 | 4-1/8 | 1-3/8 | 1-1/2 | 1-3/8 | 8-3/8 | 65.1 | 25 | 760 |
| 23 | 584 | 2-13/16 | 3-3/16 | 4-1/2 | 1-1/2 | 1-3/4 | 1-1/2 | 8-7/8 | 71.2 | 30 | 940 |
| 24 | 610 | 2-13/16 | 3-3/16 | 4-1/2 | 1-1/2 | 1-3/4 | 1-1/2 | 9-1/8 | 77.5 | 33 | 1,140 |
| 26 | 660 | 3-3/16 | 3-5/8 | 5-1/4 | 1-3/4 | 2 | 1-3/4 | 9-7/8 | 91 | 44 | 1,710 |
| 28 | 711 | 3-1/2 | 4 | 5-1/4 | 1-3/4 | 2-1/4 | 1-3/4 | 10-5/8 | 105.5 | 55 | 2,490 |
| 30 | 762 | 3-13/16 | 4-3/8 | 6 | 2 | 2-1/2 | 2 | 11-3/8 | 124.7 | 70 | 3,460 |
| 32 | 813 | 4-1/4 | 4-13/16 | 6 | 2 | 3 | 2 | 12-3/16 | 141.8 | 97 | 5,960 |
| 34 | 864 | 4-7/16 | 5-1/16 | 6-3/4 | 2-1/4 | 3-1/4 | 2-1/4 | 12-7/8 | 160.1 | 114 | 7,810 |
| 36 | 914 | 4-3/4 | 5-1/2 | 7 | 2-1/2 | 3-1/2 | 2-1/2 | 13-5/8 | 179.5 | 136 | 10,350 |
| 38 | 965 | 5-1/16 | 5-13/16 | 7-1/4 | 2-1/2 | 3-3/4 | 2-1/2 | 14-7/16 | 200 | 159 | 13,200 |
| 40 | 1,016 | 5-1/16 | 5-13/16 | 7-3/4 | 2-3/4 | 3-3/4 | 2-3/4 | 15-3/16 | 221.6 | 177 | 16,600 |
| 42 | 1,067 | 5-1/4 | 6 | 8 | 2-3/4 | 3-3/4 | 2-3/4 | 15-15/16 | 244.3 | 211 | 22,620 |
| 44 | 1,118 | 5-1/4 | 6 | 8 | 2-3/4 | 3-3/4 | 2-3/4 | 16-3/4 | 268.1 | 232 | 27,820 |
| 46 | 1,168 | 6 | 6-3/4 | 10 | 3 | 4 | 3 | 17-7/16 | 293.1 | 285 | 34,170 |
| 48 | 1,219 | 6 | 6-3/4 | 10 | 3 | 4 | 3 | 18-1/4 | 319.1 | 309 | 41,290 |
| 50 | 1,270 | 6-9/16 | 7-3/8 | 10-3/4 | 3 | 4-1/2 | 3 | 19 | 346.2 | 362 | 49,820 |
| 52 | 1,320 | 6-9/16 | 7-3/8 | 10-3/4 | 3 | 4-1/2 | 3 | 19-3/4 | 374.5 | 390 | 59,370 |
| 54 | 1,371 | 6-9/16 | 7-3/8 | 10-3/4 | 3 | 4-1/2 | 3 | 20-1/2 | 408.8 | 420 | 70,320 |
| 56 | 1,422 | 7-5/8 | 8-3/8 | 11-1/2 | 3-1/4 | 5 | 3-1/4 | 21-1/4 | 434.3 | 498 | 83,470 |
| 68 | 1,473 | 7-5/8 | 8-3/8 | 11-1/2 | 3-1/4 | 5 | 3-1/4 | 21-7/8 | 465.9 | 533 | 97,700 |
| 60 | 1,524 | 7-5/8 | 8-3/8 | 12 | 3-1/2 | 5 | 3-1/2 | 22-3/4 | 498.6 | 572 | 113,880 |
| 62 | 1,575 | 9 | 10 | 13-1/4 | 4 | 6 | 4 | 22-1/2 | 492.8 | 737 | 143,870 |
| 63 | 1,625 | 9 | 10 | 13-1/4 | 4 | 6 | 4 | 23-1/8 | 525.1 | 781 | 165,830 |
| 66 | 1,676 | 9 | 10 | 13-1/4 | 4 | 6 | 4 | 23-15/16 | 558.4 | 828 | 190,420 |
| 68 | 1,727 | 10-1/2 | 11-3/4 | 14-1/2 | 5 | 7 | 5 | 24-5/8 | 592.8 | 987 | 221,140 |
| 70 | 1,778 | 10-1/2 | 11-3/4 | 14-1/2 | 5 | 7 | 5 | 25-3/8 | 628.1 | 1,039 | 251,690 |
| 72 | 1,823 | 10-1/2 | 11-3/4 | 14-1/2 | 5 | 7 | 5 | 26-1/8 | 664.5 | 1,094 | 285,590 |
| 74 | 1,879 | 10-1/2 | 11-3/4 | 14-1/2 | 6 | 7 | 6 | 26-7/8 | 702 | 1,159 | 340,800 |
| 76 | 1,930 | 10-1/2 | 11-3/4 | 14-1/2 | 6 | 7 | 6 | 27-9/16 | 740.4 | 1,228 | 388,680 |
| 78 | 1,981 | 10-1/2 | 11-3/4 | 14-1/2 | 6 | 7 | 6 | 28-1/4 | 779.9 | 1,301 | 441,530 |
| 80 | 2,032 | 11-1/8 | 12-1/2 | 17 | 6 | 7-1/2 | 6 | 29 | 820.4 | 1,493 | 503,610 |
| 82 | 2,083 | 11-1/8 | 12-1/2 | 17 | 6 | 7-1/2 | 6 | 29-3/4 | 862 | 1,574 | 568,320 |
| 84 | 2,134 | 11-1/8 | 12-1/2 | 17 | 6 | 7-1/2 | 6 | 30-7/16 | 904.5 | 1,659 | 639,650 |
| 86 | 2,184 | 11-1/8 | 12-1/2 | 17 | 6 | 7-1/2 | 6 | 31-3/16 | 948.1 | 1,748 | 718,600 |
| 88 | 2,235 | 11-1/8 | 12-1/2 | 17 | 6 | 7-1/2 | 6 | 31-15/16 | 992.7 | 1,842 | 805,280 |
| 90 | 2,286 | 11-7/8 | 13-1/4 | 18-1/4 | 6 | 8 | 6 | 32-5/8 | 1,038.3 | 2,048 | 903,200 |
| 92 | 2,337 | 11-7/8 | 13-1/4 | 18-1/4 | 6 | 8 | 6 | 33-3/8 | 1,085.0 | 2,150 | 1,003,950 |
| 94 | 2,388 | 11-7/8 | 13-1/4 | 18-1/4 | 6 | 8 | 6 | 34-1/16 | 1,132.7 | 2,256 | 1,119,400 |
| 96 | 2,438 | 11-7/8 | 13-1/4 | 18-1/4 | 6 | 8 | 6 | 34-13/16 | 1,181.4 | 2,263 | 1,238,750 |
