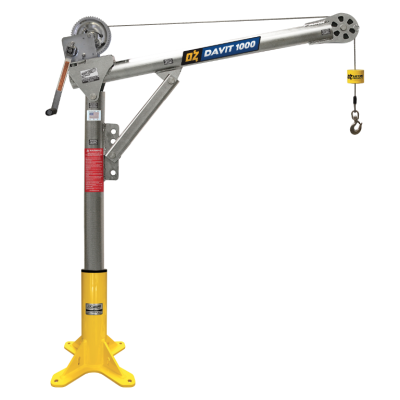

La Grúa Pescante de Acero de OZ Lifting Products es una grúa pescante totalmente de acero con opciones de capacidad de 1000 lb. Viene equipada con un cabrestante con freno manual y adaptador para accionamiento con taladro, un cabrestante eléctrico de CA o un cabrestante eléctrico de CC.

Referencia: OZ1000DAV

Compozite Davit Crane 2500lb - OZ1200DAV

The CompOZite davit crane is an ultra-portable lifting solution constructed from advanced lightweight composite material. This material reduces the weight of the crane by 40% compared to traditional steel models, making it easier to transport and maneuver. Despite its lighter weight, the CompOZite davit crane boasts a lifting capacity of 1200 lb. and requires no tools for assembly. Additionally, it features a 360-degree rotating arm and an adjustable boom with 4 positions for increased versatility in various work environments. The composite material construction also offers corrosion-resistance for enhanced durability. Individually tested and certified at 125%. Cable assembly and bases sold separately. Made in the USA.

Compozite Davit Crane OZ1200DAV

BASE OZ1200DAV

**Sold Separately comes with mounting template

Base OZ1200DAV

Features of OZ1200DAV

Boom/extension and mast made of advanced composite material
Lightweight, about 40% lighter than steel
Corrosion-resistant
Metal components mil-spec zinc-plated
External handle helps rotate crane under load
4 position boom
Ratchet screw jack adjusts boom under load giving you infinite range of lift
360-degree rotation of crane on sleeve bearing
No tools required for installation
DIN-rated hand winch equipped standard with a load holding weatherproof Weston brake (cable assembly sold separately)
Hand winch accepts two different cable termination points: swaged ball fitting or bare end cable
Quick connect winch handle with power drill adapter included
Smart Latch technology at boom/mast connection
Pedestal, wall mount, socket, and wheel bases sold separately (comes with mounting template)
Made in USA

OZTP2500DAV

Load Rating

Load Rating OZ1200DAV

Load Rating (lb.)	First Layer	Mid Drum	Full Drum
Position 1	1200lb	875lb	550lb
Position 2	900lb	875lb	550lb
Position 3	700lb	700lb	550lb
Position 4	400lb	400lb	400lb

3/16" Cable(ft)	Boom Position 1 (lb)	Boom Position 2 (lb)	Boom Position 3 (lb)	Boom Position 4 (lb)
6	800	800	700	400
14	800	800	700	400
22	800	800	700	400
31	800	800	700	400
41	775	775	700	400
52	725	725	700	400
64	650	650	650	400
77	625	625	625	400
90	550	550	550	400

1/4" Cable (ft)	Boom Position 1 (lb)	Boom Position 2 9lb)	Boom Position 3 (lb)	Boom Position4 (lb)
4	1200	900	700	400
9	1025	900	700	400
14	875	875	700	400
20	775	775	700	400
27	700	700	700	400
35	625	625	625	400
43	575	575	575	400
50	550	550	550	400
