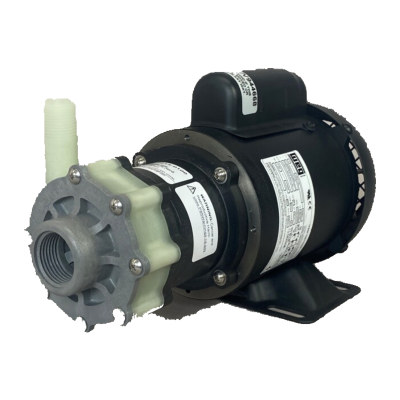

MARCH PUMPS TE-5M-MD Mag Drive Pump - 1 Ph - 18 GPM - 115/230 V - Conduit Box
MARCH PUMPS TE-5M-MD 115/230 V - Seal-less Mag-Drive Centrifugal Pump, Noryl Front Housing with Polypropylene Rear Housing and Impeller, 115/230V 50/60Hz TEFC Air Cooled Motor, Up To 18 GPM, 1" FPT Inlet, 1/2" MPT Outlet, Conduit Box (No Cord). Ignition Protected per SAE J1171 & ISO 8846. Ideal for marine air conditioning and watermaker systems.
March Pumps Part Number: 0150-0253-0100
Referencia: 0150-0253-0100
525,00 $
Available for local pickup at our Miami or Fort Lauderdale location
Envio gratuito para envíos superiores a 99$
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Calculador de envio
MARCH PUMPS TE-5M-MD Mag-Drive Centrifugal Pump 115/230V
March Pump's TE-5M-MD is an American seal-less centrifugal magnetic drive pump built for marine service. It is capable of generating a maximum flow of 18 GPM (68.1 LPM) and a maximum head of 29 feet (around 12 PSI). The standard wet end (the materials that come into contact with the solution) is composed of a Noryl front housing with a Polypropylene rear housing and impeller, a Carbon bushing, a Buna N o-ring, and Ceramic thrust washers, shaft and magnet. The motor is a 1 Phase 115/230V 60Hz (110/220V 50Hz) TEFC totally enclosed fan cooled 0.2 horsepower motor rated IP 44, and this version is supplied with a conduit box for hard wiring (no cord or plug). The carbon bushing permits extended dry-run capability, and the motor is Ignition Protected per SAE J1171 and ISO 8846, making the TE-5M-MD suitable for engine-room and other marine installations. The maximum internal pressure the pump can tolerate is 50 PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius.
OPERATION
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.
LIMITED WARRANTY
March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.
SPECIFICATIONS
Product #: 0150-0253-0100
Inlet - Outlet: 1" FPT - 1/2" MPT
Voltage: 115/230 V (110/220 V at 50 Hz)
Phase: 1
Hertz: 60 Hz / 50 Hz
HP: 0.2 (0.149 kW)
Rpm: 3450 (60 Hz) / 2850 (50 Hz)
Max. Flow: 18 gpm / 68.1 lpm (60 Hz) - 15.9 gpm / 60.5 lpm (50 Hz)
Max. Head: 29 ft / 8.85 m (60 Hz) - 20.7 ft / 6.3 m (50 Hz)
Max Internal Pressure: 50 psi (3.4 bar)
Max Liquid Temperature: 190 °F (87 °C)
Thermal Capacity: 50,000 BTU/hour
Motor: TEFC, IP 44, UL listed
Motor Connection: Conduit box (no cord or plug)
Ignition Protection: SAE J1171 / ISO 8846
Wetend Materials: Front Housing - Noryl; Rear Housing & Impeller - Polypropylene; Bushing - Carbon; O-Ring - Buna N; Thrust Washers, Shaft & Magnet - Ceramic
