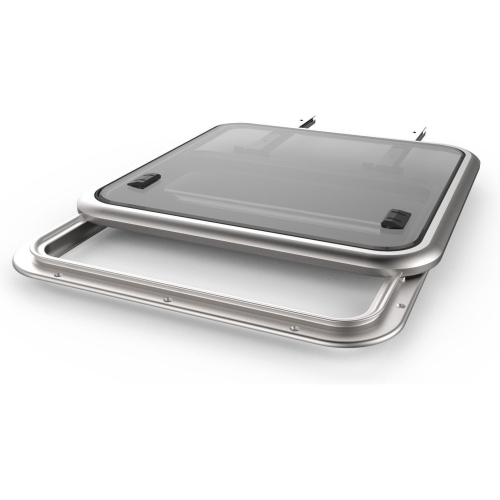

Lewmar Hatches - Pilot Hatch
Lewmar Pilot Hatch: Easy one-handle operation, secure ventilation, replaceable acrylic, and low-friction sliding technology for smooth, reliable performance.
Referencia: 30211300
790,00 $
Envio gratuito para envíos superiores a 99$
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Calculador de envio
Lewmar Hatches - Pilot Hatch
Features
- Opens up enclosed steering positions
- The handle never moves out of reach

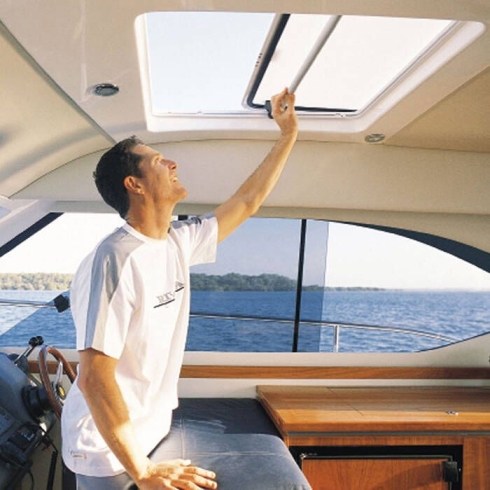

- Operated with a single handlebar that rotates to seal down the hatch
- Can be secured with a 5 cm opening when full ventilation is not required
- Acrylic can be replaced without the use of sealant
- Sliding technology from Lewmar's racing hardware track systems, ensuring minimum friction
- The Pilot Hatch uses Lewmar's unique seal system for improved sealing and easy servicing
Size Specifications
| Specification | Size 40 | Size 60 | Size 70 | Size 78 |
|---|---|---|---|---|
| Lower Frame Flange | 9/16" (15 mm) | 9/16" (15 mm) | 9/16" (15 mm) | 9/16" (15 mm) |
| Acrylic Window Thickness | 8 mm (5/16") | 10 mm (3/8") | 10 mm (3/8") | 8 mm (5/16") |
| Width (X) | 495 mm (19 1/2") | 581 mm (22 7/8") | 701 mm (27 5/8") | 844 mm (27 5/8") |
| Length (Y) | 491 mm (19 5/16") | 577 mm (22 11/16") | 697 mm (27 7/16") | 790 mm (31 1/8") |
| Height (Z) | 29 mm (1 1/8") | 29 mm (1 1/8") | 29 mm (1 1/8") | 29 mm (1 1/8") |
| Radii (R) | 73 mm (2 7/8") | 73 mm (2 7/8") | 73 mm (2 7/8") | 73 mm (2 7/8") |
| Track Length (T) | 284 mm (11 3/16") | 373 mm (14 2/3") | 486 mm (19 1/8") | 638 mm (25 1/8") |
| Cut-Out Width (X1) | 421 mm (16 9/16") | 507 mm (19 15/16") | 627 mm (24 11/16") | 770 mm (30 5/16") |
| Cut-Out Length (Y1) | 421 mm (16 9/16") | 507 mm (19 15/16") | 627 mm (24 11/16") | 720 mm (28 1/4") |
| Cut-Out Radii (R1) | 73 mm (2 7/8") | 42.5 mm (1 11/16") | 42.5 mm (1 11/16") | 42.5 mm (1 11/16") |
