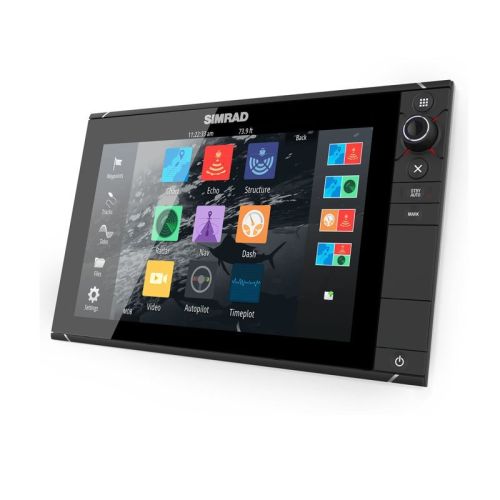

NSS12 evo2, 12" Widescreen Multi-touch Mulit-Function Display w/ internal GPS and built-in Broadband/CHIRP/StructureScan Sonar. Optional Radar, AIS, Sat WX/Audio, WiFi. Preloaded Insight charts, optional Navionics, C-Map Charts.
MFG#: 000-11192-001
The NSS12 evo2 combines an easy-to-use, 12-inch chartplotter/multifunction display with built-in GPS positioning, StructureScan, CHIRP-enabled broadband sonar, and powerful expansion capabilities.
Standalone in a centre console or fully integrated in a modern glass bridge, the widescreen NSS12 evo2 is well suited to sportfishing and power boats.
Key Features
12-inch 1280x720 (16:9) HD multi-touch display
Embedded high-gain 10Hz GPS/GLONASS receiver, works in flush installations with most non-metal boats
Built-in CHIRP-enabled broadband sounder and StructureScan
TouchSensible combination of multi-touch screen and keypad/rotary dial for intuitive and precise control in all conditions
HEROiC software optimized for widescreen multi-touch display, with customisable panels
Full autopilot integration capability
Simrad GoFree WiFi connectivity for smartphones/tablets (requires optional WiFi module)
Flush-mount (~8mm profile) or bracket installation, with classic black and brushed silver bezel options
HDMI video output for optional external display (720p)
Specifications:
Overview | |
Display Size | 12.1” (307mm) Widescreen |
GPS Antenna | 10Hz High Gain built-in GPS |
Display | |
Backlighting Levels | LED / 1200 nits |
Display Resolution [pixels x pixels] | 1280 x 800 |
Display Type | WVGA Color TFT LCD |
Technical/Environmental | |
Operating Temperature | -15°C to +55°C (5°F to 131°F) |
Waterproof Standard/rating | IPx7 |
Product Width | 13.58" / 345mm |
Product Depth | 4.13” / 105mm |
Product Height | 8.46" / 215mm |
Power | |
Power Supply (Supply Voltage) | 9-32V DC |
Other | |
Languages | 31 |
Other Features | Waypoint Storage: 10,000 points total combined waypoints / route points |
